BUY WITH CONFIDENCE! HASSLE FREE!

Covered by full Supermicro manufacturer warranty!!! Datacenter Optimized

Key Features
1. Single socket H4 (LGA 1151) supports
Intel® Xeon® processor E3-1200 v5,
Intel® 6th Gen. Core™ i3 series,
Intel® Celeron® and Intel® Pentium® 2. Intel® C236 chipset 3. Up to 64GB Unbuffered ECC UDIMM
DDR4 2133MHz; 4x DIMM slots 4. Expansion slots:
1 PCI-E 3.0 x8 (in x16),
1 PCI-E 3.0 x8,
1 PCI-E 3.0 x4 (in x8) 5. Quad GbE LAN with Intel® i210-AT 6. 6x SATA3 (6Gbps) via C236;
RAID 0, 1, 5, 10 7. I/O: 1x VGA, 2x COM, TPM 1.2 header 8. 2x SuperDOM with built-in power 9. 5x USB 3.0 (2 rear + 2 via header +
1 Type A), 6x USB 2.0 (2 rear +
4 via headers) 10. M.2 NGFF connector Links & Resources Tested Memory List Tested HDD / SSD List Motherboard Manual Quick Reference Guide Update Your BIOS IPMI Firmware Download the Latest Drivers and Utilities Download Driver CD OS Compatibility

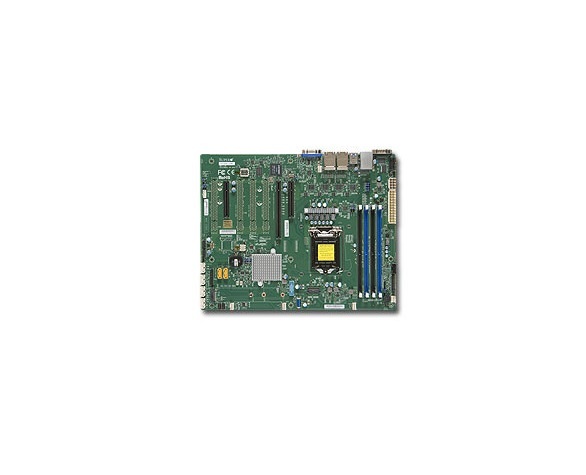

Product SKUs MBD-X11SSi-LN4F -B

• X11SSi-LN4F (Bulk Pack)

Physical Stats Form Factor

• ATX

Dimensions

• 12" x 9.6", (30.5cm x 22.4cm)

Processor/Cache CPU

• Single Socket H4 (LGA 1151) supports:
• Intel® Xeon® processor E3-1200 v5,
  Intel® 6th Gen Core™ i3,
  Intel® Pentium®,
  Intel® Celeron® processors
• CPU TDP up to 80W

System Memory Memory Capacity

• 4x 288-pin DDR4 DIMM slots
• Up to 64GB DDR4 ECC UDIMM

Memory Type

• 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs

DIMM Sizes

• 16GB, 8GB, 4GB

Memory Voltage

• 1.2 V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board Devices Chipset

• Intel® C236 chipset

SATA

• SATA3 (6Gbps) via C236 controller
• RAID 0, 1, 5, 10 support

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2400 BMC

Network Controllers

• Quad Intel® I210-AT Gigabit Ethernet LAN ports
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

Graphics

• ASPEED AST2400 BMC

Input / Output SATA

• 6x SATA3 (6Gbps) ports

LAN

• 4x RJ45 Gigabit Ethernet LAN ports
• 1x RJ45 Dedicated IPMI LAN port

USB

• 5x USB 3.0 ports (2 rear + 2 via header + 1 Type A)
• 6x USB 2.0 ports (2 rear + 4 via header)

Video

• 1x VGA port

Serial Port / Header

• 2x COM ports (1 rear, 1 header)

SuperDOM

• 2x SuperDOM (Disk on Module) ports with built-in power

TPM

• 1x TPM 1.2 20-pin Header

Chassis (Optimized for X11SSi-LN4F ) 1U Chassis:

• SC813MFTQC-505CB
• SC813MFTQ-R400CB
• SC113MFAC2-341CB
• SC113MFAC2-R606CB
• SC512F-350B
• SC512F-441B
• SC813MFTQC-350CB

2U Chassis:

• SC213LT-600LPB
• SC825TQ-600LPB
• SC823TQ-653LPB

3U Chassis:

• SC833T-653B

Mid/Mini Tower Chassis:

• SC732i-865B
• SC732I-500B

4U / Tower Chassis:

• SC743TQ-1200B-SQ
• SC842TQ-665B
• SC842i-500B

Important Chassis Notes

• To support the new generation Intel® Xeon® processor-based motherboards, Revision M chassis is recommended. Please talk to your sales representative for details.

Expansion Slots PCI-Express

• 1x PCI-E 3.0 x8 (in x16) slot
• 1x PCI-E 3.0 x8 slot
• 1x PCI-E 3.0 x4 (in x8) slot

M.2

• Interface: PCI-E 3.0 x4 and SATA 3.0
• Form Factor: 2242, 2260, 2280, 22110

System BIOS BIOS Type

• 128Mb SPI Flash EEPROM with AMI BIOS

BIOS Features

• Plug and Play (PnP)
• APM 1.2
• DMI 2.3
• PCI 2.3
• ACPI 1.0 / 2.0 / 3.0 / 4.0
• USB Keyboard support
• Hardware BIOS Virus protection
• SMBIOS 2.7.1
• UEFI 2.3.1
• RTC (Real Time Clock) Wakeup

Management Software

• Intel® Node Manager
• IPMI 2.0 with KVM support
• NMI
• Watch Dog
• SuperDoctor® 5

Power Configurations

• ACPI Power Management
• Keyboard Wakeup from Soft-Off
• CPU Fan auto-off in sleep mode
• Power-on mode for AC power recovery

PC Health Monitoring Voltage

• Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.

FAN

• Total of 5 fan headers supporting up to 5 fans
• 5 fans with tachometer status monitoring
• Status monitor for speed control
• Status monitor for on/off control
• Low noise fan speed control
• Pulse Width Modulated (PWM) fan connectors

Temperature

• Monitoring for CPU and chassis environment
• CPU thermal trip support
• I2C temperature sensing logic
• Thermal Monitor 2 (TM2) support
• PECI

LED

• CPU / System Overheat LED
• Suspend static indicator LED
• UID/Remote UID

Other Features

• Chassis intrusion detection
• Chassis intrusion header
• Chipkill support
• RoHS

Parts List (Bulk Package) Part Number Qty Description Motherboard MBD-X11SSi-LN4F 1 X11SSi-LN4F Motherboard
