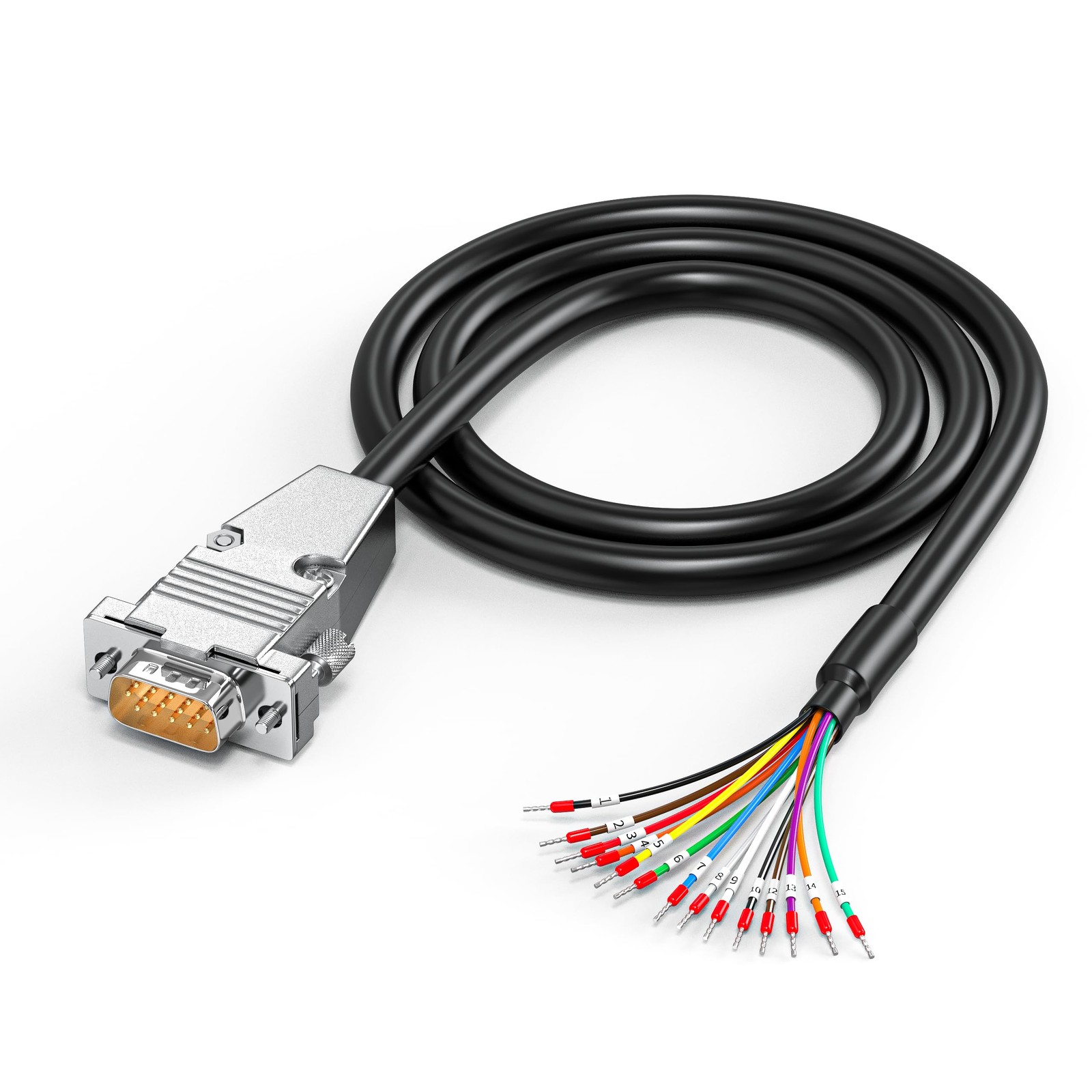

Minimal Ebony Template DB9 Male Connector to Bare Wire,DB9 Serial Cable, 9 Pin Serial Extension Cable 26AWG 10FT-3M,All 9 Wires Equipped with Marker Terminal Blocks,Accepts Communication Protocols such as RS232 and RS485

Experience confidence and convenience at every step.

Item Synopsis

1.Clear Identification for Easy Wiring

Each DB9 bare wire end is equipped with a copper cold-pressed terminal, marked with numbers 1 ~ 9, for quick and accurate identification when wiring.

2.Secure Terminal Retention

The terminals are firmly crimped and harder to dislodge.

3. Metal connector shell

The DB9 extension cable uses a metal connector shell, which effectively improves the product's anti-interference ability, making it more durable and offering excellent value for money.

4.Industrial Standard Compliance

Adopts straight-through pin-to-pin wiring (1↔1 to 9↔9，one-to-one correspondence) that strictly follows industry standards, ensuring compatibility with industry norms.

5.Conductor color coding sequence

1-Black, 2-Brown, 3-Red, 4-Orange, 5-Yellow, 6-Green, 7-Blue, 8-Gray, 9-White.

6.Multi-Protocol Support

Supports communication protocols like RS232, RS485, and CAN-BUS, meeting the needs of diverse industrial data transmission scenarios.

7.Excellent shielding capability

The DB9 serial cable boasts shielding made up of aluminum foil , ensuring powerful anti-interference performance. It includes 9 cores of 26AWG tinned copper and has an outer diameter of 6.0mm.

8.Broad Industrial Applicability

This DB9 connector is applicable to a variety of devices, such as automatic control equipment, PLC controllers, data converters, industrial control equipment, cash registers, tax control machines, and computers.

Key Points

• 【Humanized Wiring Design】: Utilizes a single DB9 Male connector to bare wire cable, with each wire terminated by a red copper cold-pressed terminal and clearly marked with numerical labels (1–9); terminals are securely crimped to prevent loosening, ensuring convenient use.
• 【Wire Color Sequence】: 1 Black, 2 Brown, 3 Red, 4 Orange, 5 Yellow, 6 Green, 7 Blue, 8 Gray, 9 White. The connection sequence is Pin 1 to Pin 1, Pin 2 to Pin 2, and so on, with each data line corresponding one-to-one.
• 【High-quality connector materials】: DB9 connectors feature metal shells and copper core pins to ensure excellent insertion resistance and performance. The cable section features a black PVC shell for enhanced durability.
• 【Strong Anti-Interference Capability】: The DB9 connector uses a metal housing and aluminum foil to effectively provide full-line anti-interference protection, ensuring signal transmission quality and stability.It includes 9 cores of 26AWG tinned copper and has an outer diameter of 6.0mm.
• 【Wide Protocol Compatibility】：Supports multiple communication protocols, such as RS232, RS485, and CAN-BUS. Compatible with various devices, including automatic control equipment, PLC controllers, data converters, industrial control equipment, cash registers, tax control machines, and computers.
