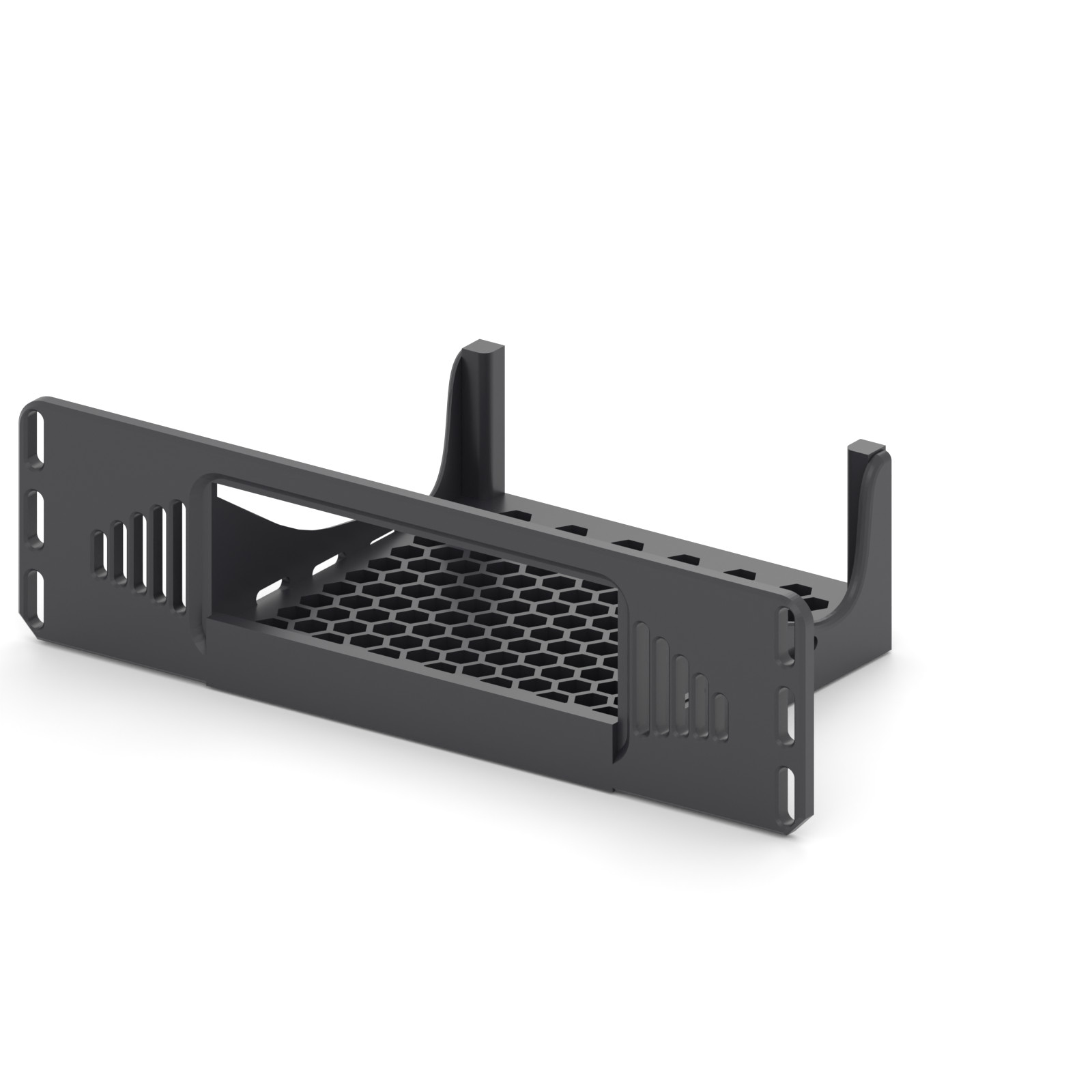

10 Inch Rack Mount 1.5U for the Beelink EQ14

A 1.5U tray that seats the Beelink EQ14 in a 10 inch mini rack, printed to order in matte black PETG. The PC slides in from the front and sits behind a retaining lip; the front ports and power button face forward. No adhesive, no modification to the PC.

Designed From The Published Specification

• Fits: Beelink EQ14, 126 x 126 x 39 mm without rubber feet, per Beelink's own specification table.
• Why 1.5U: the 39 mm body needs a 45 mm opening, which a 1U (44.45 mm) faceplate cannot give.
• Opening 128 x 45 mm gives 1 mm of side clearance and 2 mm above the PC.
• Faceplate 248 mm wide on EIA-310 10 inch hole spacing; 1.5U (66.7 mm) tall.

Build

• Single piece, prints support-free.
• Vented rhythm-slot face for airflow across the PC.
• Fits any 10 inch / 254 mm mini rack with standard square or round holes.
• Part measures 248 x 123 x 66.7 mm. Matte black PETG.

Printed To Order

Each unit is printed fresh in our shop on calibrated printers and inspected before it ships. Lead time is typically 1-3 business days. Minor layer lines are normal for FDM 3D printing and part of the finish.

Not an official Beelink product. Mini PC not included. Beelink is a trademark of its owner.
