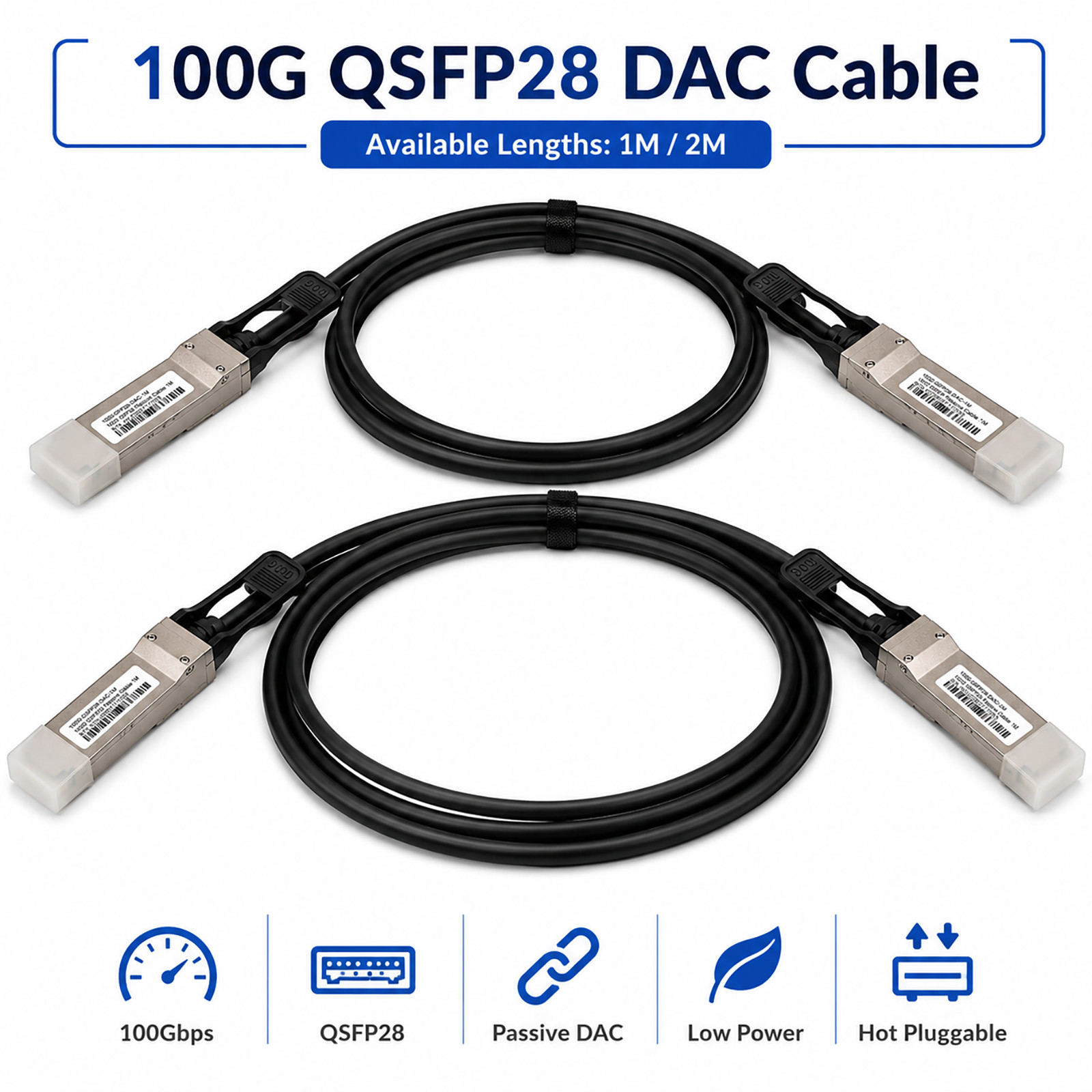

OUR OPTIONS 100G QSFP28 Passive DAC Twinax Cable For Intel E810-CQDA1 CQDA2 1M 2M ITEM DESCRIPTION
100G QSFP28 Intel-Compatible Passive Direct Attach Copper Cable
This third-party 100G QSFP28 passive DAC cable is programmed with Intel-compatible EEPROM identification on both QSFP28 connector ends.
It is intended for selected Intel 100G QSFP28 network adapters and selected white-label or open-code networking equipment that accepts Intel-compatible third-party DAC identification.
This cable is not Generic-coded and is not an Intel OEM cable. It is not programmed with Cisco-specific or Arista-specific EEPROM Intel-compatible EEPROM coding on both QSFP28 ends
• Supports 100GBASE-CR4 Ethernet transmission
• Straight QSFP28-to-QSFP28 configuration
• Up to 100Gbps aggregate data rate
• Passive 30AWG Twinax copper construction
• No optical transceivers or external power required
• Low-latency, low-power short-distance connection
• Hot-pluggable metal QSFP28 connectors
• Black PVC cable jacket
• Available in 1M and 2M Rate：100Gbps
Ethernet Standard：100GBASE-CR4
Connector Type：QSFP28 Male to QSFP28 Male
Transmission Type：Passive DAC
EEPROM Coding：Intel-Compatible on Both Ends
Wire Gauge：30AWG
Differential Impedance：100Ω
Recommended Minimum Bend Radius：50mm
Typical Operating Temperature：0°C to 70°C
Typical Storage Temperature：-40°C to 85°C
Cable Color：Black
Connector Switch-to-server 100G Ethernet links
• Server-to-server direct connections
• Switch-to-switch short-distance links
• Storage Area Networks
• Data-center and server-rack connections
• High-performance computing environments
Fit For
• Selected Intel E810-CQDA1 100G QSFP28 network adapters
• Selected Intel E810-CQDA2 100G QSFP28 network adapters
• Selected Intel E810-CQDA2T 100G QSFP28 network adapters
• Selected switches and servers accepting Intel-compatible QSFP28 DAC coding
• Selected white-label or open-code devices that do not block Intel-compatible third-party EEPROM identification
• Same-rack and adjacent-rack 100GBASE-CR4 connections
Not Compatible With
• Intel E810-XXVDA2 or E810-XXVDA4 SFP28 network adapters
• 25G SFP28 ports
• 40G QSFP+ ports without 100G QSFP28 support
• 100G QSFP28 to 4×25G SFP28 breakout applications
• Equipment requiring Cisco-specific EEPROM coding
• Equipment requiring Arista-specific EEPROM coding
• Equipment that blocks third-party Intel-compatible DAC identification
• QSFP28 ports that do not support passive copper DAC Notes
• Both QSFP28 ends use the same Intel-compatible EEPROM coding.
• This is not a Generic-coded cable.
• Compatibility with white-label equipment is conditional on the device accepting Intel-compatible or unrestricted third-party DAC identification.
• Both connected devices must have QSFP28 ports and support passive 100GBASE-CR4 operation.
• This cable does not perform protocol conversion, switching, breakout or link aggregation.
• Compatibility may vary according to the equipment model, firmware version and third-party transceiver policy.
• Verify the exact port type and compatibility policy of both connected devices before is a third-party compatible product. It is not manufactured, sponsored or endorsed by Intel. Intel and referenced model names are used solely to identify compatibility.
Package Includes：1 × 100G QSFP28 Generic Passive DAC Twinax Cable
SKU#：1 Meter KK.CC.554-GE-1 Net Weight：5.1 oz Shipping Weight：5.1 oz
SKU#：2 Meters KK.CC.554-GE-2 Net Weight：7.1 oz Shipping Weight：7.1 oz
