Industrial Webcamera1080P hd 30fps /60fps/120fps high speed Cmos ov 2710 Webcam with 4mm Manual focus lens mini USB Camera for Computer PC tabletFeatures:
*High Speed 1080P HD USB Camera
*Equiped with 4mm manual focus lens
*Can drive 30fps@1080P and 60fps@720p
*CMOS 1080P sensor for high quality image and low power consumption.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*low light performance – ideal for any lighting condition.
*Super small outline and thin profile for embedded applications.
*High frame rate– deliver 60 fps in 1280X720 resolution,30 fps in 1920X1080 resolution.
*High quality lens, true and undistorted color image.
*Low power consumption – ideal for portable equipment.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.
Specification:
Optional models
ELP-USBFHD01M-MF40 (Default 4mm lens)
Sensor
1/2.7" CMOS OV2710
Lens size
200W, 2.0megapixel, 1920(H)x1080(V)pixels
Max. Resolution
1920X1080
Picture format
MJPEG
USB Protocal
USB2.0 HS/FS, USB1.1 FS
Support free driver
USB Video Class(UVC)1.1
Auto exposure AEC
Support
Auto white blance AEB
Support
Frame rate
1920 (H) x 1080 (V) pixels MJPEG 30fps YUY2 6fps
1280 (H) x 1024 (V) pixels MJPEG 30fps YUY2 6fps
1280 (H) x 720 (V) pixels MJPEG 60fps YUY2 9fps
1024 (H) x 768 (V) pixels MJPEG 30fps YUY2 9fps
800 (H) x 600 (V) pixels MJPEG 60fps YUY2 21fps
640 (H) x 480 (V) pixels MJPEG 120fps YUY2 30fps
352(H) x 288 (V) pixels MJPEG 120fps YUY2 30fps
320 (H) x 240 (V) pixels MJPEG 120fps YUY2 30fps
Adjustable parameters
Brightness/Contrast/Color saturation /Definition/Gamma/WB
lens
4/6/8mm manual focus lens optional
view angle
depend on lens
voltage
DC 5V
current
150mA
work temperature
DEGREES(-20~70)
Size
32x32mm/38*38
Support OS
WinXP/Vista/WIN7/WIN8
Linux with UVC
Mac-OS X 10.4.8 or later
Wince with UVC
Android 4.0 or above
Applications:
Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental monitoring, etc.
used for all kinds of machine as below:
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic
vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law
enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system,
automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video
shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD
surveillance, endoscope, Medical auxiliary equipment, etc.

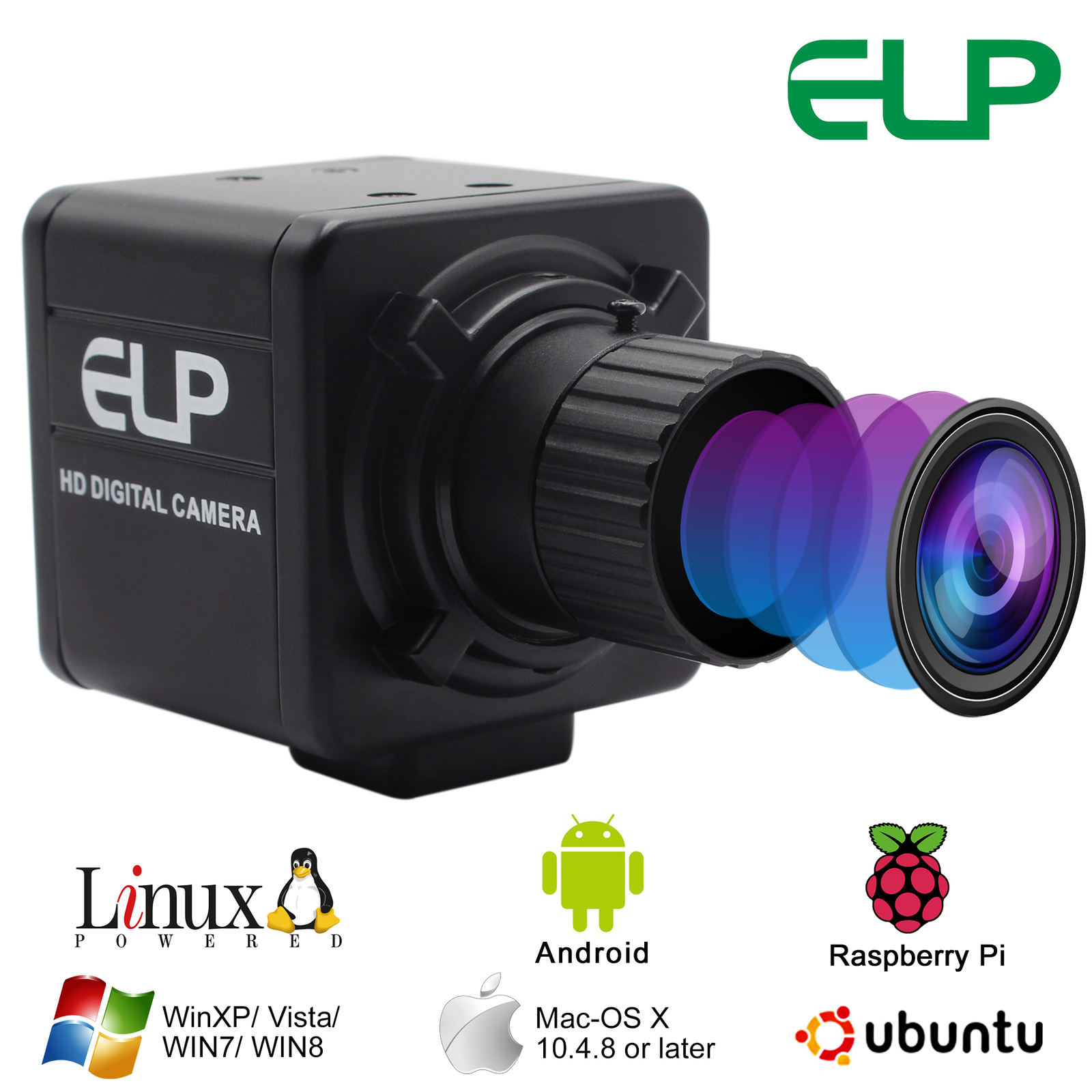

Products Display:
