Wavlink USB C 13-in-1 Docking Station, 100W PD Charging, Triple 4K Display Type-C Adapter with HDMI, 2 Display Ports, Power port,

Ethernet Port, Micro SD and SD Card Reader,3.5mm Audio Jack and 4 USB 3.0 &1 USB-C port, for Windows / Mac and more

Wavlink WL-UMD01/ WL-UMD01 Pro USB-C Triple Display MST Docking Station has 2xDisplayPort (DP1.4) and 1xHDMI (HDMI 2.0), compatible with USB C with 'DisplayPort Alternate mode' (Alt Mode) or Thunderbolt 3/4 port on PC, connecting up to 3 monitors. Gigabit Ethernet connection, 3.5mm headphone and microphone jacks, multiple USB ports, bring you the excellent versatility and increasing productivity. The product suits you well in multiple-monitor scenarios such as meetings, classrooms, stock chart analysis, programming, designing etc.

Features:

One HDMI(HDMI2.0) and two DP(DP1.4) , supports up to dual 4K@60Hz (HBR3, DP1.4) or triple displays.

Supports USB Power delivery up to 65W/100W (Pro) upstream charging to laptop

SD V3.0 /Micro SD Card Reader slot data transfer speed up to 104MB/s

Four USB 3.0 A port support up to 5Gbps with one port support BC1.2 fast charging, and One USB3.1 Gen2

Ethernet port supports up to 1 Gbps (10/100/1000 Mbps)

One combo Audio/Mic port

Compatible with PC with an available USB-C with ‘DisplayPort Alternate mode’(Alt Mode) or Thunderbolt 3/4 port

Driver-free Plug and Play

Special decent design with plastic and metal USB C Hub: Wavlink plug-and-play USB C Hub comes with 1x4K HDMI, 2xDisplay Ports, 1000M RJ45 Ethernet Port, DC 20V Power port, Upstream USB-C port, 4xUSB 3. 0 Ports,

3.5mm Audio Jack,and SD & Micro SD card reader. What you get: Wavlink 13-port USB C hub, 1xUSB-C Triple Display Docking Station, 1xUSB-C to C cable, 1x130W Power Adapter,

1xAC Power Cable, 1x Quick Start Guideand 1-Year Worry-free warranty (extra 6 months for registered members) and life-long friendly customer service and technical support.

4K Ultra HD and Triple Display:Two different display interfaces for different needs. Mirror or extend your screen with the HDMI, and DP ports and directly stream 4K@60Hz UHD video to HDTV,

monitors,or projectors for a cinema-like visual feast. Please note: ONLY Windows system support Mirror & Extend Mode. Mac OS only supports mirror mode and non-mirror mode. Non-mirror

mode means thatthe three external monitors(HDMI+DP+DP) are same but different from laptop. Single HDMI/DP can reach up to 4K@60Hz under DP1.3/DP1.4 source. Resolution will be

2K@60Hz if two monitors playsimultaneously and will be 1920x1080@60Hz when using HDMI, DP and DP together.

100W PD 3.0 Charging:With upstream USB-C port, this docking station provides up to 100W safe and fast charging for connected laptop. In addition, a BC 1.2 fast charging USB 3.0 port on

the Wavlink13-in-1 Hub delivers up to 7.5W of charging power and helps you charge your phone quickly. Note: Please make sure that the USB-C port on your device supports Power Delivery protocol.

Comprehensive Compatibility:A USB-C expansion hub for Apple MacBook, Apple MacBook Pro 2016/2017/2018/2019/2020, Apple iMac/ iMac Pro (21. 5 inch, 27 inch), Google Chromebook Pixel,

Huawei,MateBook, Huawei MateBook Pro, Dell, Surface Book2, HP, Lenovo, and Samsung S9, S9 Plus, S8, S8 Plus, Note 9, Note 8, Huawei New version phones and many other Type C laptops.

Compatible with mosttype-c and thunderbolt 3/4 devices.

Transfer in Seconds:The USB C docking station is equipped with 4 USB A 3.0 ports and SD/TF Card reader to offer you plenty of connection possibilities. The 4 USB 3.0 ports’ transfer rate speed

up to 5Gbps, which means you can transfer big files between your devices in seconds. And the built-in SD & TF slots(speed up to 104MBps) can work simultaneously, perfectly suitable for video editors,

photographers and programmers.

Wavlink 13-in-1 Triple Display USB C Hub with HDMI and DP

Triple Display Flexibility

Triple display modes boost your efficiency 3 times. Wavlink triple display hub supports single HDMI/DP display up to 3840x2160@60Hz, dual display up to 2560x1440@60Hz, or triple displays up to

1920x1080@60Hz.(NOTE: When expanding three screens and your graphics card only supports three monitors, you need to turn off the built-in screens.) It also has almost all the ports that you

need for work or home life.With 4*USB3.0 ports, you can simultaneously transfer files in seconds with USB 3.0 ports that bring data transfer speeds up to 5Gbps and connecting wireless devices

like keyboard and mouse.SD and Micro SD Card Readers allow you to take photos off your DSLR and edit them on your laptop. With a 3.5mm Audio Jack, you can enjoy Hi-Fi music like before.

The RJ45 Ethernet brings you an unparalleled online-surfing experience and a power port lets you connect your fast charging PD power adaptor while using other ports.

USB C Dock with 100W Power Delivery

Maximum input of 130W for the hub’s operation allows the hub to give your laptop up to a 100W pass-through charge while using other hub functions.(Charger included) It can also

shorten the charging time with supporting Power Delivery 3.0. (Backward compatible with PD 2.0) Double faster than non-PD.

Note: If your original usb c laptop's charger is not usb c charging adapter, then you can Not use this usb c port adapter to

charge your laptops. Please make sure that your device supports Power Delivery protocol. When you are not sure if the

USB-C port on your device supports charging, please contact our customer service.

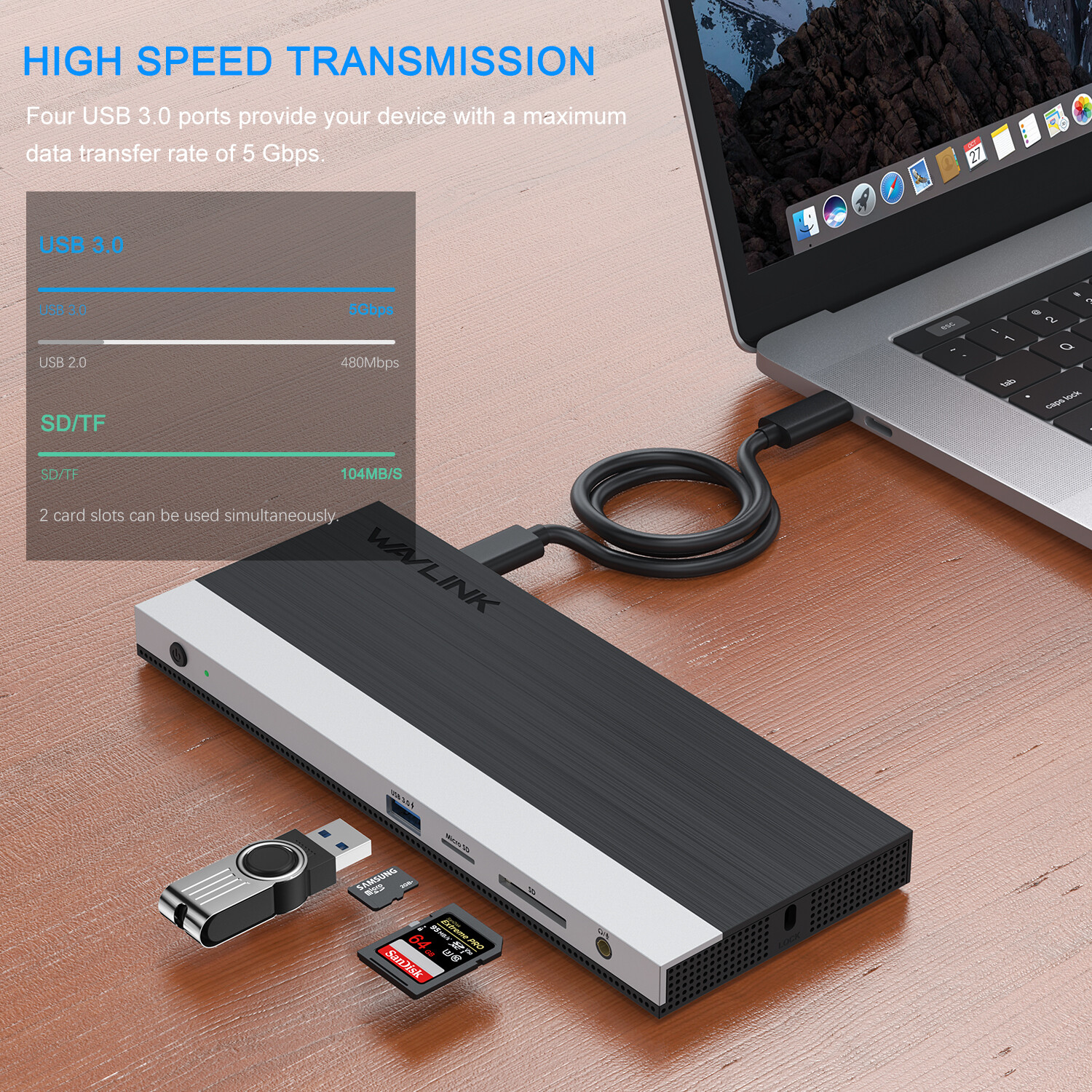

Super Speed Data Transfer

4 USB 3.0 ports allow you transfer files at the high speed of 5 Gbps, which is 10 times faster than USB 2.0. Compatible with full-featured USB 3.1 compliance (Data transfer, USB power

delivery and video alternate). Also backward compatible with USB 2.0 ports.

Instant Gigabit Ethernet

Obtain stable connection speeds up to 1Gbps; downward compatible with 100MBps/10MBps networks. Our Type-C to LAN Gigabit Ethernet (RJ45) Network Adapter supports

large downloads at maximum speeds without interruption. (To reach 1Gbps, make sure to use CAT6 & up Ethernet cables.)

SD & TF Card Reader

Speed up to 104MBps. SD and Micro SD card slots can be used simultaneously.

Compatible with SD, SDHC, SDXC, RS-MMC, MMC Micro, Micro SD, Micro SDHC, Micro SDXC cards.

Quick Heat Dissipation

Porous bit design accelerates hot gas emissions and ensures reliable performance.

Brushed Panel

Brushed design makes the product looks more texture and fashion.

Portable & Plug and Go

The compact size and light weight make the Wavlink triple displays docking station extra portable. Plug and play, no software, drivers or complicated installation required.

In the box

1 x USB-C Triple Display docking station

1 x USB-C to USB-C 1m cable(E-mark)

1 x Power Adapter

1 x AC Power 1.5m Cable

1 x Quick Start Guide

Note:

1. When expanding three screens and your graphics card only supports three monitors, you need to turn off the built-in screens.

2. Mac OS does not support MST, the 3 external monitors will display the same content.
