2 Gigabit Ethernet Media Converters with a Pair Bidi SFP LX Modules For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

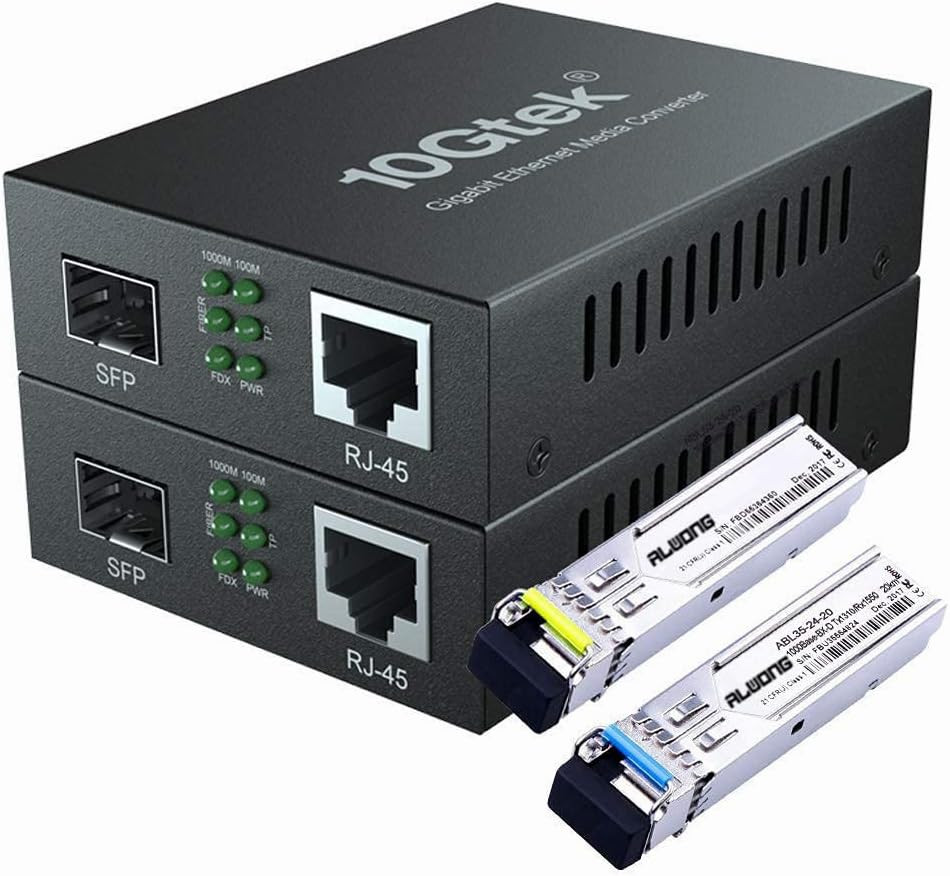

2 Gigabit Ethernet Media Converters with a Pair Bidi SFP LX Modules

Price: US $77.54

2 Gigabit Ethernet Media Converters with a Pair offeri SFP LX ModulesDescription Product Dimensions 6.5 x 4.53 x 3.54 inches Item Weight 1.12 pounds Item model number G0101-SFP(Kit 5#)

Product description The video showcases the product in use.The video guides you through product setup.The video shows the product being unpacked. aplus content video

Gigabit Media Converter

Gigabit Ethernet Media Converter with a Pair of 1.25G offeri SFP Module（20km）

10/100/1000M RJ45 Port
Supports Duplex and Half Duplex
Supports MDI/MDIX Auto Crossover
Distance Reach up to 20km
Gigabit SFP Port With a pair of 1000Base-LX offeri SFP Module(1310nm/1550nm)

Gigabit Fiber Media Converter 1 2 3 4 5 Gigabit Media Converter LED Indicators

Link/ACT: Left side is indicate for fiber port link/act and right side for TP, light flashing when data transmitting and receiving.
FDX: Light on when TP full-duplex mode is active, light off when TP half-duplex mode is active.
PWR: Light on when DC power on, else light off.

Ports introduction

Gigabit SFP Port: 10/100/1000Mbps. Support SFP modules.
RJ45 Port: 10/100/1000Mbps. Full/half Duplex. Auto-Negotiation. MDI/MDIX Auto-Crossover. @ UTP/STP/Cat.5/Cat.5e/Cat.6 or better.
Power Supply: Input Voltage: AC100V~240V or DC36~72V, 50/60Hz.
Output Voltage: 5V-1A

Is this Plug and Play?

Yes. Modulization configuration design. Just plug in SFP Optical port and RJ45 port. In accordance with Ethernet standards, Complies with IEEE IEEE 802.3/802.3u/802.3z/802.3ab.
What are the applications?

Applicable to a variety of work environments, such as community networks, campus and enterprise networks, FTTB/FTTH, intelligent broadband, security monitoring etc.
What You Get

1x SFP Gigabit Ethernet Media Converter, 1x 1000Base-SX module, 1x DC Socket UL Power Supply, 1x User's Manual.

Compare 4 kinds of Media Converters 10 Gigabit

Data Rate: 10 Gb/s

Size: 9.3cm *7.1cm *2.7cm

Interface: SFP+ to SFP+

Gigabit

Data Rate: 1 Gb/s

Size: 9.3cm *7.1cm *2.7cm

Interface: RJ45 to SFP

SC Gigabit

Data Rate: 1 Gb/s

Size: 16.0cm*11.5cm*4.4cm

Interface: RJ45 to Dual SC

SFP Mini Gigabit

Data Rate: 1 Gb/s

Size: 6.9cm *5.0cm *2.5cm

Interface: RJ45 to SFP

💠【Fiber Optical Port】 The Gigabit Ethernet Media Converter comes with a 1.25Gbps SFP port. You can link up Single-Mode Dual LC transceivers over distances of up to 20km using an OS1/OS2/OS3 Single-Mode LC Fiber cable. [It includes 1* offeri SFP LX Module (1.25G, SMF, offeri, 1310nm/1550nm)]. Fiber Type: SMF. Cable Type: UTP/STP Cat.5e for up to 100 meters. It's designed to switch between 1000BASE-Tx copper and 1000Base-LX fiber media, and back again.
💠【RJ-45 Port】 The Fiber to Ethernet Converter offers reliable auto-negotiation for gigabit connections. It works at speeds of 10M/100M/1000Mbps, automatically adjusting between full and half duplex modes, and supports MDI/MDIX auto-crossover. It helps connect different network speeds and devices to a Gigabit fiber network. It also supports auto MDI/MDIX auto-crossover, extending the fiber distance to 20km (12.4 miles) with a single-mode single LC fiber.
💠【Plug and Play】 The SFP Media Converter has a modular design. Just plug in the optical port and RJ45 port, and it's good to go. It meets IEEE 802.3, IEEE 802.3u, IEEE802.3z, IEEE802.3ab, and IEEE 802.3x standards. LED indicators for TX, FX LINK/ACT, POWER, and FDX make it easy to keep an eye on the network status. It supports jumbo frames up to 9K bytes. Operating Temperature: 0°C to 60°C.
💠【What You Get】 You'll get 2x gigabit ethernet SFP to RJ45 media converters, 1x offeri SFP LX Module included (1.25G, SMF, offeri, 1310nm/1550nm), 1x User's Manual, and 2x DC power supplies (with a wide power supply voltage range of 100V-240V, operating voltage at 5VDC /1.0A, and a max power consumption of 1.7W).
💠【Technical Support】 It's of normal size (9.3*7.1*2.7cm). The Gigabit Fiber Media Converter comes with a 1-year warranty, a 30-DAY free-return policy, and free lifelong technical support.
