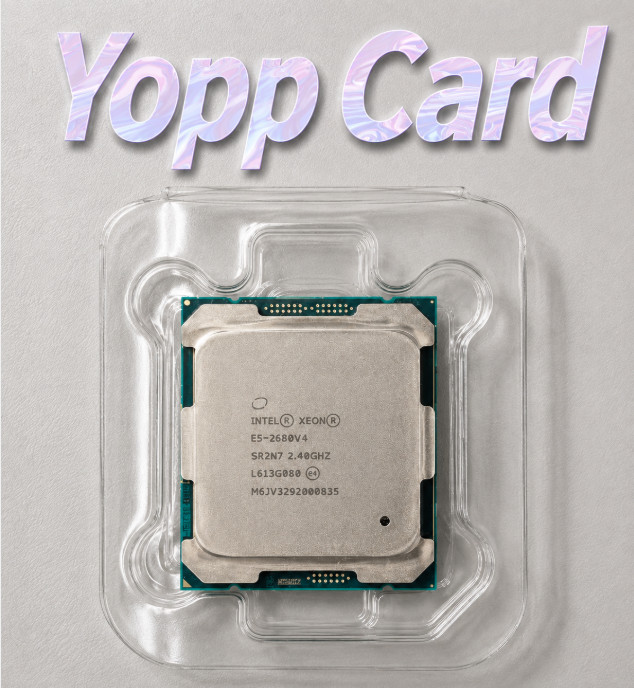

Intel Xeon E5-2680 v4 Processor – 14 Core / 28 Thread Server CPU
The Intel Xeon E5-2680 v4 is a high-performance server processor based on Intel's Broadwell architecture and manufactured using a 14nm process technology.
Featuring 14 physical cores and 28 threads with Intel Hyper-Threading Technology, the E5-2680 v4 is designed for demanding multi-threaded workloads, servers, workstations, virtualization, rendering, and professional computing applications.
The processor operates at a 2.40 GHz base frequency and can reach up to 3.30 GHz with Intel Turbo Boost Technology 2.0. It features a large 35 MB Intel Smart Cache and has a 120W TDP.
The E5-2680 v4 uses the FCLGA2011-3 socket and supports quad-channel DDR4 memory at 1600/1866/2133/2400 MHz. It supports up to 1.5 TB of memory and is compatible with ECC memory, making it well suited for server and workstation environments.
The processor also provides up to 40 PCI Express 3.0 lanes and supports configurations with up to two CPUs, making it suitable for multi-processor server platforms.
The E5-2680 v4 does not include integrated graphics, so a dedicated graphics card is required for display output.
Key Specifications
- Brand: Intel
- Product Family: Intel Xeon E5 v4
- Model: Xeon E5-2680 v4
- Architecture: Broadwell-EP
- Process Technology: 14nm
- Cores: 14 Cores
- Threads: 28 Threads
- Base Frequency: 2.40 GHz
- Max Turbo Frequency: Up to 3.30 GHz
- Cache: 35 MB Intel Smart Cache
- Bus Speed: 9.6 GT/s
- TDP: 120W
- Socket: FCLGA2011-3 / LGA2011-3
- Memory Type: DDR4
- Memory Speed: DDR4-1600 / 1866 / 2133 / 2400
- Memory Channels: 4-Channel
- Maximum Memory: Up to 1.5 TB
- ECC Memory: Supported
- PCI Express: PCIe 3.0
- PCIe Lanes: Up to 40
- Maximum CPU Configuration: 2 CPUs
- Integrated Graphics: None
- Hyper-Threading: Supported
- Intel Turbo Boost: Technology 2.0
- Virtualization: Intel VT-x / VT-d
- Instruction Set: 64-bit
- Instruction Set Extensions: Intel AVX2
- Package Size: 45 × 52.5 mm
- Maximum Tcase: 86°C
