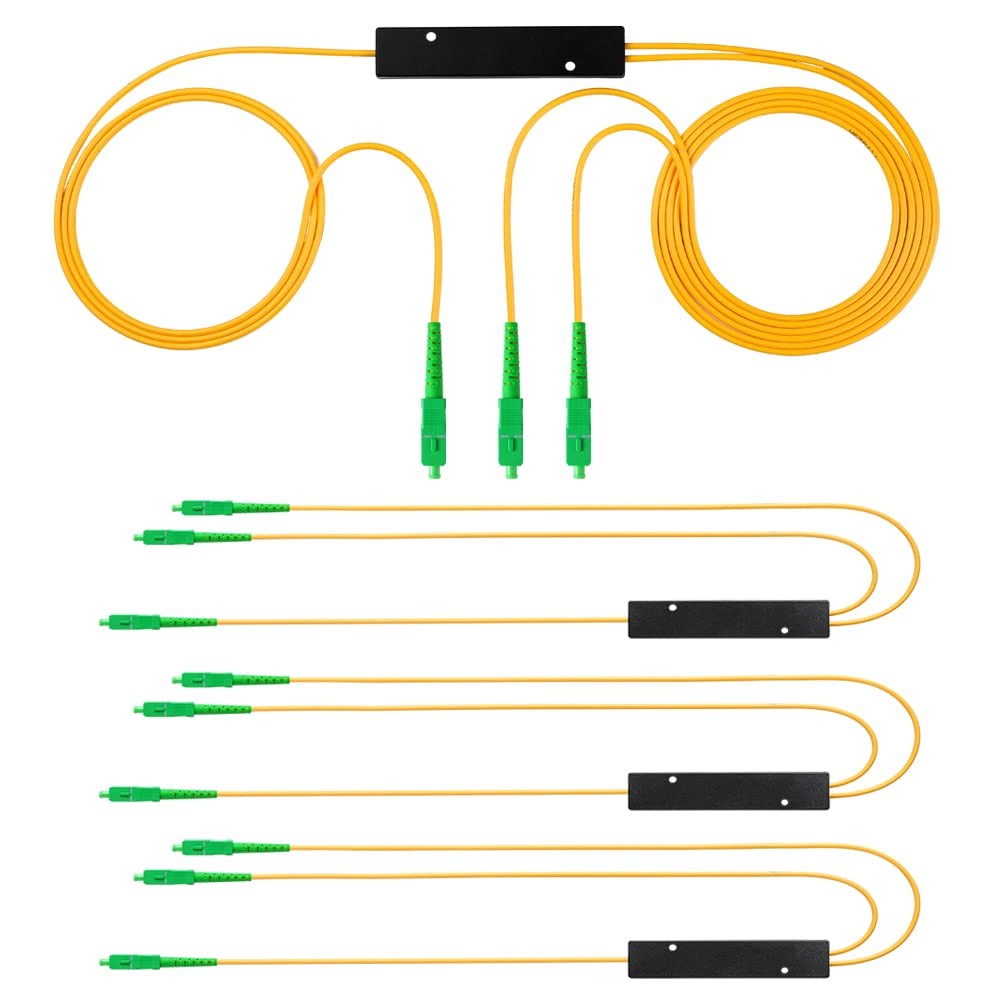

4PCS Fiber Optic Cable Splitter with 1 to 2 Distribution Channel 50:50 Ratio Wiring Coupler for GPON,FTTH,CATV System (SC-APC 1 to 2)

• 【Main Parameter】1 to 2 Fiber optical splitter with SC-UPC plug, Ratio 50:50, 1310nm / 1550nm operate wavelength, -30 to +80°C operate temperature ranges
• 【Uniform Distribution】 The SC splitter distribution ratio is 50 : 50, which distributes signals evenly to each user with strong directionality, uniform distribution and stable transmission.
• 【ABS Shell】 ABS shell has good capacity to resist impact, heat and low temperature, which can much extend the service life of the product.
• 【PVC Sheath】The fiber sheath of splitter uses environmental protection PVC material and has strong flame retardant
• 【Low Insertion Loss and Good Directivity】The splitter uses a high-quality ceramics core with low insertion loss(loss≤3.5db) and Directivity≥55dB

【Product Description】
-All the data were tested with high-precision instruments.
-The products are compact with beautiful appearance. It's spectral uniformity is ideal for passive optical network.
- The loss is insensitive to light wavelength and can meet the transmission needs of different wavelength. 【Product Detail】
Product Type1:2 SC-UPC Splitter
Splitter Ratio: 50:50
Insertion loss (db)(max):3.5
Uniformity (db):0.4
Polarization-related loss(db):0.2
Directivity (db):≥55
Return loss(db):55
Wave-related loss(db):0.5
Degree-related loss(db):0.5
Operate temperature:-30-80°C
Storage temperature:-40-85°C Note: All the datas didn’t count the loss of fiber optic connectors.
