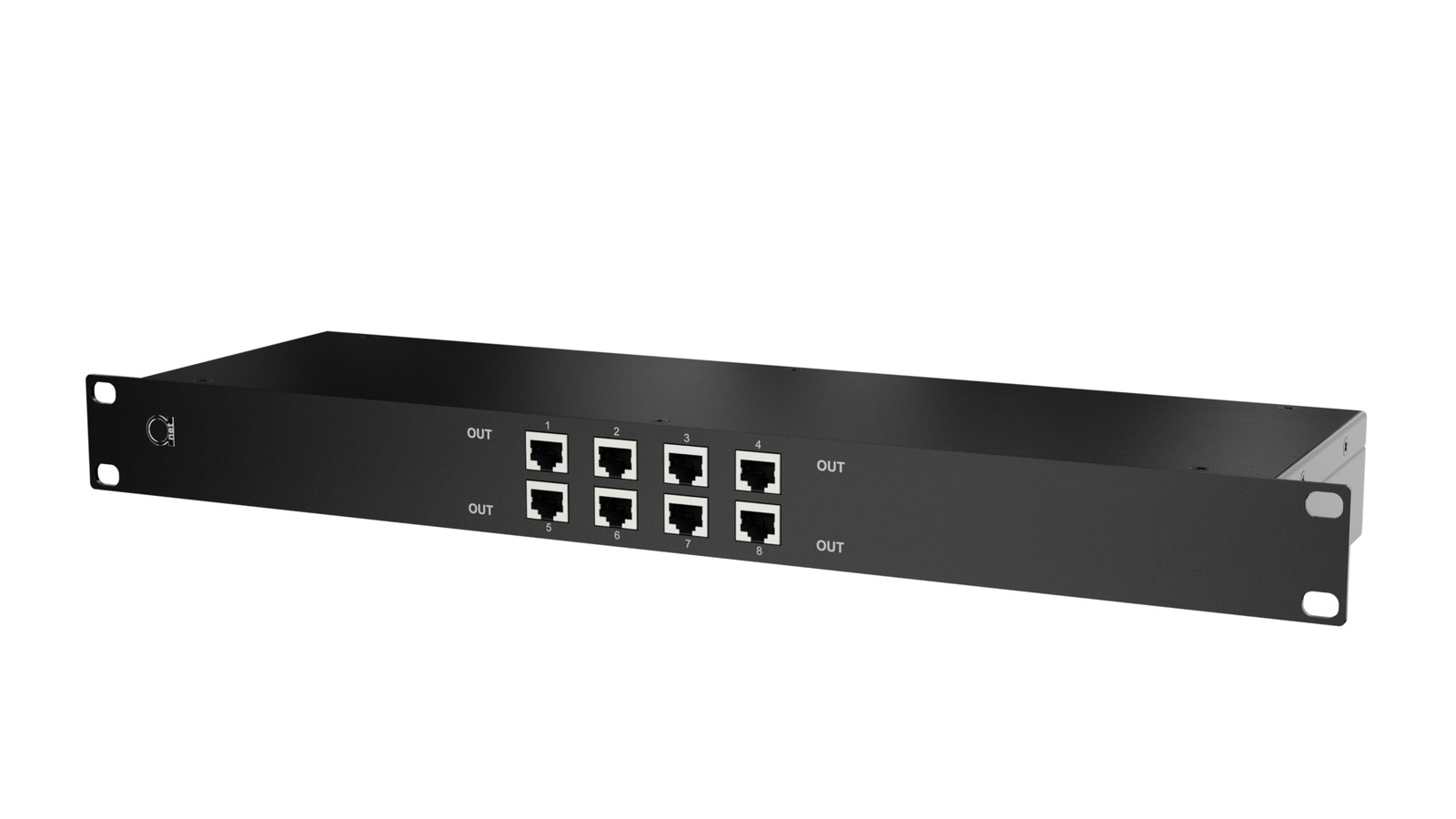

1U 19-Inch Rack Mount 8-Port RJ45 PoE Surge Protector, Gigabit Ethernet Lightning Arrester for IP Cameras, Outdoor CAT5/CAT6 Lines, in/Out Protection with PE Grounding, 10kV Rated, Low Loss SPDs CCTVDescription

Install the 1U surge protector into a standard 19-inch rack or network cabinet using rack screws.
Connect OUT Side
Connect switches, NVRs, routers, PCs, or other protected indoor equipment to the OUT ports.
Connect IN Side
Connect outdoor IP cameras, access points, or external network lines to the IN ports.
Connect Ground Wire
Attach the PE grounding wire to a reliable earth ground or rack grounding bar.
Done!
Install it in few simple steps

Key Features

• Protect up to 8 Gigabit PoE Ethernet lines from surge and lightning damage with one 1U 19-inch rack mount RJ45 surge protector. Designed for CCTV racks, PoE camera systems, network cabinets, telecom rooms, and industrial Ethernet installations.
• Connect outdoor or exposed Ethernet lines to the IN ports, then connect switches, NVRs, routers, PCs, or other protected equipment to the OUT ports. Clear IN/OUT separation helps route surge risk away from your core network equipment.
• Supports 10/100/1000Mbps Ethernet and PoE power/data pass-through over RJ45, protecting both network signal and PoE power pairs. Suitable for IP cameras, access points, PoE switches, and other copper Ethernet runs.
• For surge protection to work correctly, connect the PE grounding terminal to a rack grounding bar, building earth ground, or proper grounding system. A low-resistance ground path helps divert surge energy safely away from connected equipment.
• Rated for 10kV lightning protection, 5kA maximum discharge current, >2000 surge events at 0.5kA, ≤0.2dB insertion loss, and -40°C to +80°C operation for demanding network environments.
• Designed with low insertion loss (≤0.2dB) to maintain stable Gigabit data transmission and PoE delivery without interrupting your network. Works inline with existing setups—camera, switch, and router continue operating normally while protected.

Product DetailsNumber Of Outlets8Voltage48 VoltsOther Special Features Of The Product10kV Lightning Protection, 1U 19' rack mount, 8-Port RJ45 PoE supported, Surge ProtectionItem Weight1.46 KilogramsShape1U 19' rack mountBrandADnetWarranty DescriptionlifetimeManufacturerAD-net Technology., CO LTD (Taiwan)Total Power Outlets8Special Feature10kV Lightning Protection, 1U 19' rack mount, 8-Port RJ45 PoE supported, Surge ProtectionBrand NameADnetProduct Images
