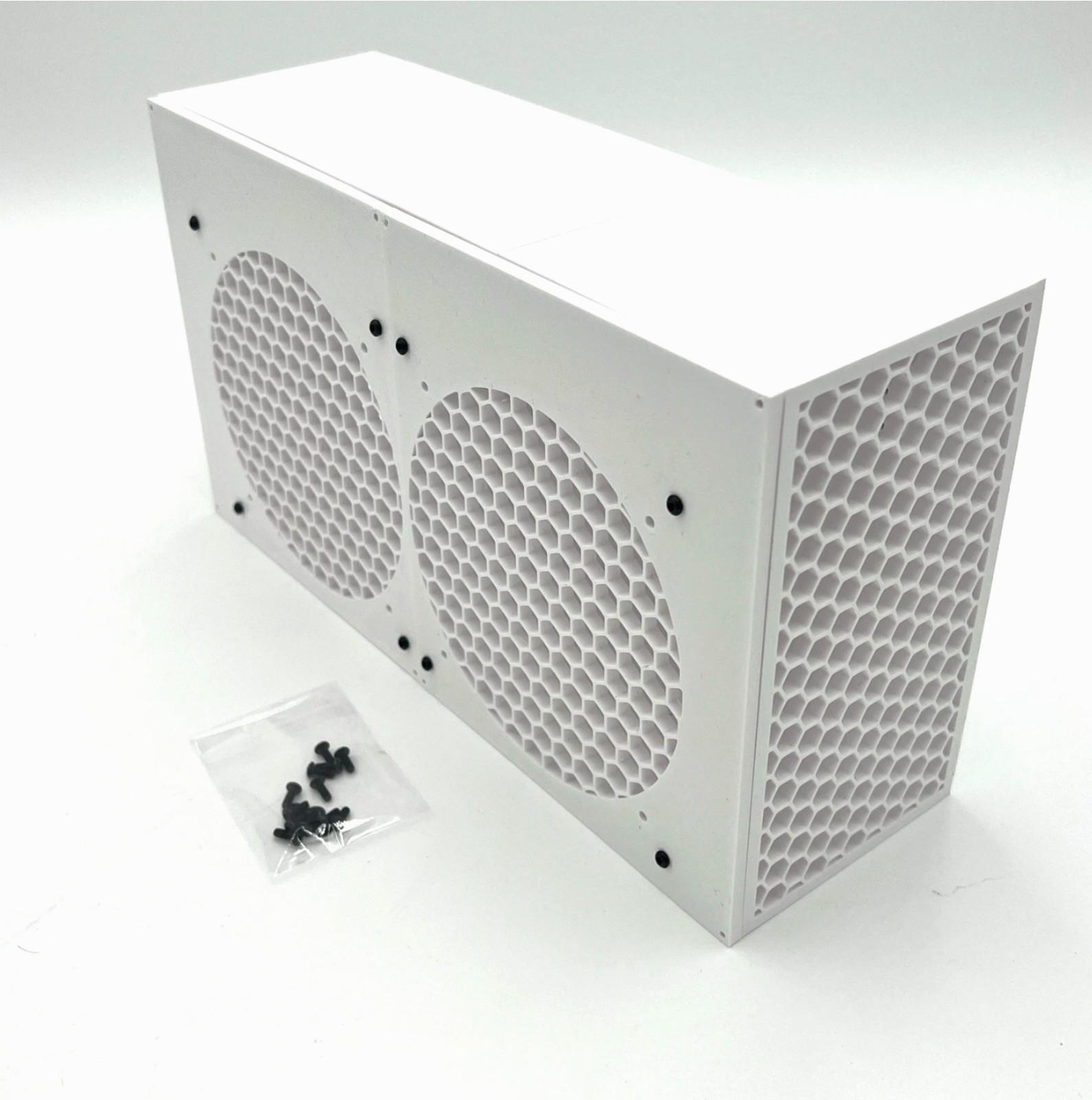

Listed are four distinct BC-250 cases in order to create your own custom Steam Machine with custom colors.
1) The Standard Edition - If you want this bundled with the kit, it can be found here Dimensions;
323mm x 115mm x 180mm
12.72 inches × 4.53 inches × 7.09 inches
2) The OverClock Edition - If you want this bundled with the kit, it can be found Dimensions;
323mm x 104mm x 195mm
12.72 inches × 4.09 inches × 7.68 inches
3) The Slim Edition - If you want this bundled with the kit, it can be found Dimensions;
320mm x 94mm x 177mm
12.60 inches × 3.70 inches × 6.97 inches
4) The Meanwell PSU Edition -If you want this bundled with the kit, it can be found Dimensions;
324mm x 104mm x 180mm
12.76 inches × 4.09 inches × 7.09 inches
If your looking for just the power switch, it can be found here ---> is a BC-250 case that has been designed to house the standard FLEX ATX or Meanwell Power Supply, a BC-250 with120mm or 140mm fans. There are holes to accommodate the fan sizes. It is a well thought-out with a design that securely allows the mounting of the BC-250 board with 4 screws and an airflow concept that allows for the card to be run "full tilt" for gaming. If you plan to unlock all 40 CU and overclock then the overclock edition is best suited.
The case is designed to direct the air through the heatsink keep the BC-250 APU cool. The OverClock Edtion has active cooling on back where the RAM is located.
Dimensions vary depending on the edition:320mm x 110mm x 180mm12.5" x 4.25" x 7.125"
Includes:- 1x BC-250 case- screws for assembly of the case.- 2x scoopers/Fin straightners to open up the fins (Not required but will improve temperatures)
What you can purchase as an option:
-Plug-and-Play USB 3.0 WiFi + Bluetooth 5.3 Adapter - No Drivers - No If you do not currently own a BC-250, select the BC250 as one of the optional purchases.2) Remove all brackets from your BC-250.,3) Optionally "Scoop" the BC-250's Heatsink so that the fins are open (push louvers of heatsink downwards to open them) This will improve your temperatures.4) Insert and "click in the power rocker switch5) Secure powersupply with 4 provided chasis screws, Plug in 6 to 8 pin power, Plug in 24pin power to power switchand place into case, air vent down.6) Install and wire the BC-250 to the 8-pin and screw down card into case, making sure to put washers on the screws that hold the board down.7) Install the I/O shield screw into the hole in the DisplayPort connector.,8) Screw fans into case doors (any 120/140mm fan that can attain 1700rpm or more will be good) (fans that can daisy chain are recommended),9) Screw case doors onto case,10) Enjoy the best designed BC-250 case ever!,
If you already have an M.2 SSD/NVME but it's not the 2280 lenght standard then you can purchase an adapter here BUYERS
