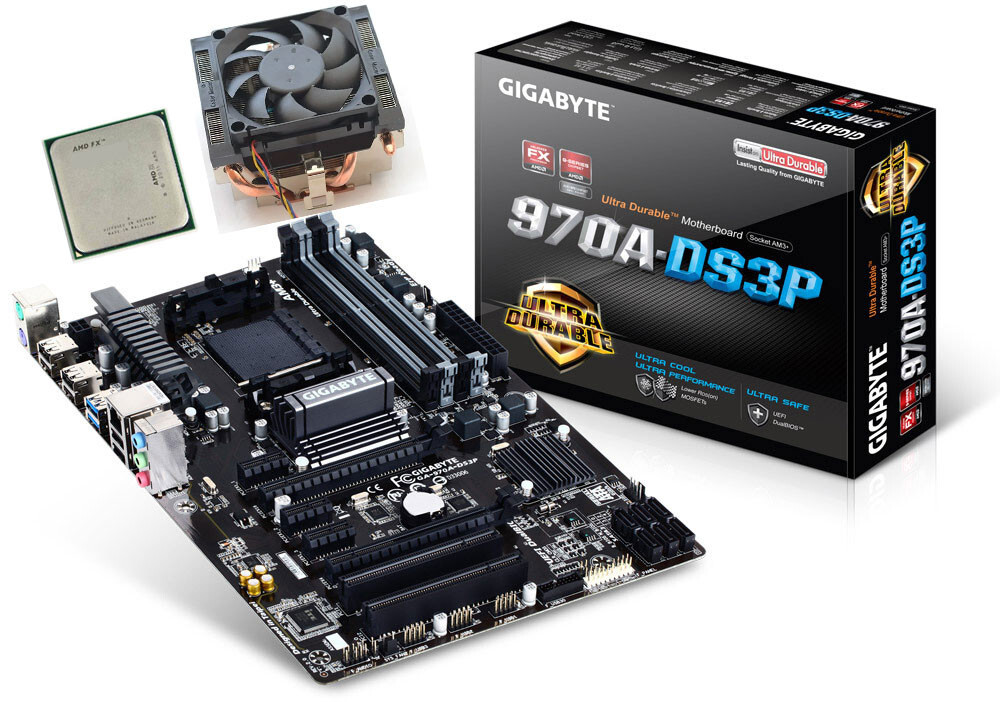

AMD FX-4350 CPU + GIGABYTE GA-970A-DS3P Motherboard COMBO. Whats included:1. AMD FX-4350 Quad Core CPU + AMD Cooler and Thermal Paste
- Frequency: 4.2/4.3GHZ (Base/Overdrive)
- Cores: 4
- Cache: 4/8MB (L2/L3)
- Socket Type: AM3+
2. GIGABYTE GA-970A-DS3P Motherboard. Includes IO plate, manual, driver CD, SATA cable). Serial #: 0957 / 39EC / (rev. 2.0)Supported CPUCPU Socket TypeAM3+CPU TypeFX / Phenom II / Athlon IIFSB2400 MHz Hyper Transport (4800 MT/s)ChipsetsChipsetAMD 970South BridgeAMD SB950MemoryNumber of Memory Slots4x240pinMemory StandardDDR3 2000(O.C.)/ 1866/ 1600/ 1333/ 1066Maximum Memory Supported32GBChannel SupportedDual ChannelExpansion SlotsPCI Express 2.0 x161 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
(All PCI Express slots conform to PCI Express 2.0 standard.)PCI Express x13 x PCI Express x1 slots
(All PCI Express slots conform to PCI Express 2.0 standard.)PCI Slots2 x PCI SlotsStorage DevicesSATA 6Gb/s6 x SATA 6Gb/sSATA RAID0/1/5/10/JBODOnboard AudioAudio ChipsetRealtek ALC887Audio Channels2/4/5.1/7.1-channelOnboard LANLAN ChipsetRealtek GbE LAN chipMax LAN Speed1GbpsRear Panel PortsPS/21 x PS/2 keyboard port
1 x PS/2 mouse portRJ451 x RJ45USB 3.02 x USB 3.0/2.0 portsUSB 1.1/2.06 x USB 2.0/1.1 portsAudio Ports3 x audio jacks (Line In/Line Out/Microphone)Internal I/O ConnectorsOnboard USB1 x USB 3.0/2.0 header
3 x USB 2.0/1.1 headersOther Connectors1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x power fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x Clear CMOS jumperPhysical SpecForm FactorATXDimensions (W x L)12.0" x 8.5"Power Pin24 PinFeaturesFeaturesSupports AMD AM3+ FX / AM3 series Processors
GIGABYTE Ultra Durable Technology
Audio Noise Guard with High Quality Audio Capacitors
GIGABYTE UEFI DualBIOS
2-way CrossFire Support
4 USB 3.0 ports with transfer rates of up to 5Gbps
GIGABYTE On/Off Charge for USB devicesI/O Controller: iTE I/O Controller ChipH/W Monitoring:
System voltage detection
CPU/System temperature detection
CPU/System/Power fan speed detection
CPU overheating warning
CPU/System/Power fan fail warning
CPU/System fan speed control (Note 4)BIOS:
2 x 32 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Unique Features:
Support for @BIOS
Support for Q-Flash
Support for Xpress Install
Support for EasyTune (Note 5)
Support for Smart Recovery 2
Support for Auto Green
Support for ON/OFF Charge
