Manufacturer: APC

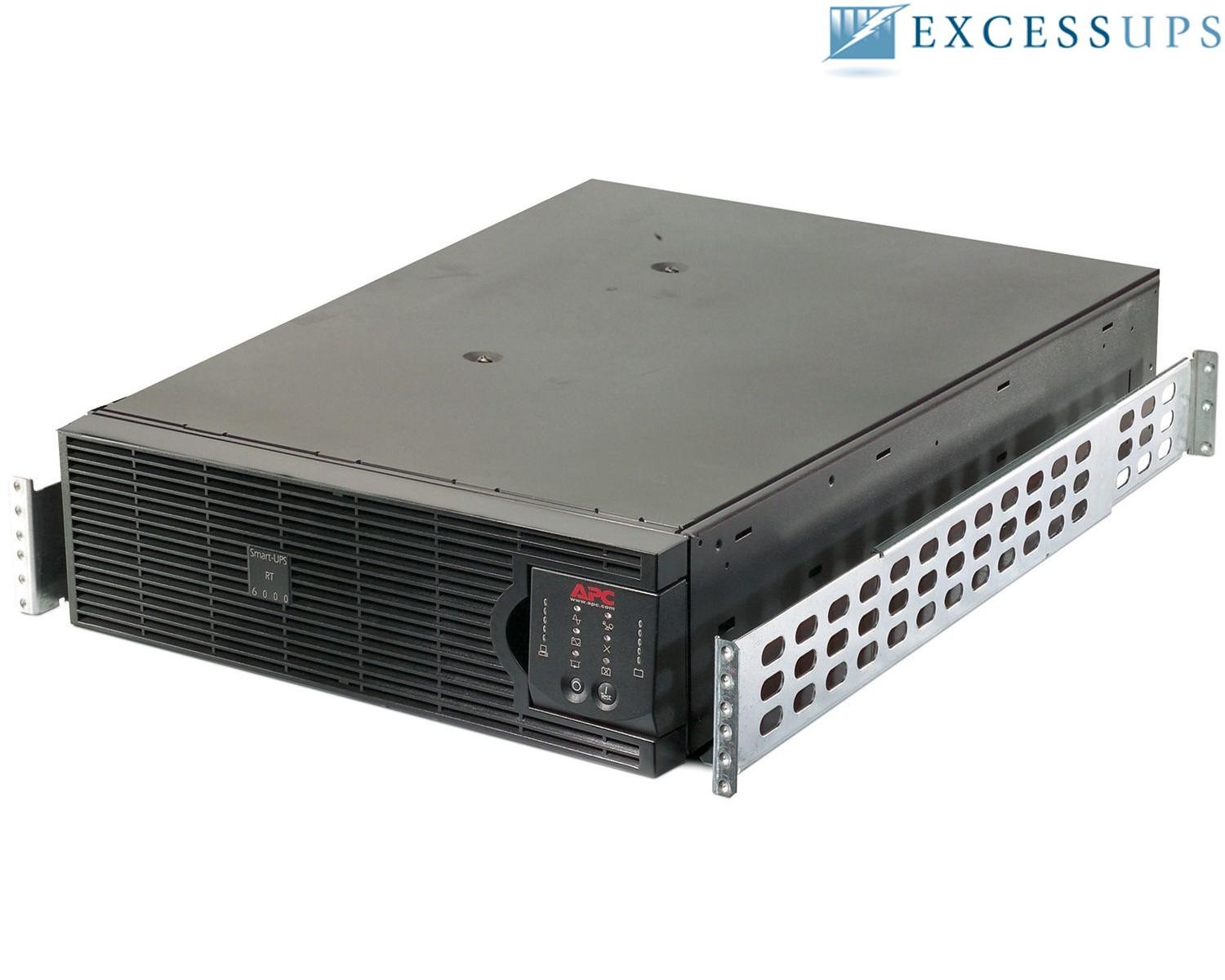

Model: APC Smart-UPS RT 6000VA 4200W, RM, 3U, 208V to 208V/120V
Condition: New Batteries, Refurbished UPS
Part Number: SURTD6000RMXLP3U
Maximum output: 4200W / 6000VA
Topology: Online Double-Conversion
Waveform: Pure Sine Wave
Typical backup time at half load: 13.1 minutes (2200 Watts)
Typical backup time at full load: 4.4 minutes (4200 Watts)
Warranty: 1 Year Full Replacement Warranty Included
Description: The APC SURTD6000RMXLP3U is a Smart-UPS RT online double-conversion UPS designed to provide continuous 4200W / 6000VA power protection for servers, storage systems, networking equipment, and other mission-critical applications. It delivers pure sine wave output with zero transfer time, supports configurable 120V, 208V, and 240V output voltages, and features Automatic and Manual Internal Bypass for maximum availability. Equipped with a NEMA L14-30P input, (4) NEMA 5-20R, (1) NEMA L6-30R, and (1) NEMA L14-30R output receptacles, it includes a pre-installed APC Network Management Card 2 with environmental monitoring, hot-swappable batteries, and support for external battery packs to extend runtime. This refurbished UPS includes new batteries and is backed by a 1-Year Full Replacement Warranty.
APC Smart-UPS RT 6000VA 4200W SURTD6000RMXLP3U - User - APC Smart-UPS Specifications:
Product Overview Power Rating 6000VA / 4200W UPS TopologyOnline Double-Conversion Form FactorRackmount Rack Height3U Input Voltage208V / 240V Output Voltage120V / 208V / 240V (Configurable) Waveform TypePure Sine Wave Input Plug TypeNEMA L14-30P Output Receptacles(4) NEMA 5-20R (1) NEMA L6-30R (1) NEMA L14-30RBattery TypeSealed Lead-Acid Hot-Swappable BatteriesYes Internal BypassAutomatic & Manual Intelligent Battery ManagementYes Pre-Installed Network CardNetwork Management Card 2 with Environmental Monitoring Extended Runtime SupportYes Included AccessoriesRack Rails, Support Feet, RS-232 Cable, Software CD, User Manual User Interface, Alerts & Controls Front Panel DisplayMultifunction LCD Display Front Panel IndicatorsOnline, On Battery, Load, Battery, Fault Status User InterfaceLCD Configuration & Monitoring Console Audible AlarmBattery, Low Battery and Overload Alarms Alarm ManagementConfigurable Audible Notifications ControlsPower ON/OFF, LCD Navigation Emergency Power Off (EPO)Yes BypassAutomatic & Manual Internal Bypass Battery StatusRuntime, Charge Level & & Management Pre-Installed Network CardAPC AP9619 Network Management Card SmartSlotOccupied (Factory Installed AP9619) Ethernet Port10/100Base-T RJ-45 USB PortNo Serial PortDB9 RS-232 Communication InterfacesEthernet, RS-232, SmartSlot, EPO Remote MonitoringSupported via AP9619 Web Interface Remote ManagementHTTP, HTTPS, Telnet, SSH, SNMP v1/v3 Management SoftwareAPC PowerChute Business Edition Event LoggingSupported Email NotificationsSupported SNMP Trap SupportSupported Firmware UpdatesSupported via AP9619 User AuthenticationPassword-Protected Access Security FeaturesSSL/HTTPS, SSH, SNMPv3 Authentication Monitoring FunctionsInput/Output Voltage, Load, Battery Status, Runtime, Temperature*, UPS Diagnostics Remote ShutdownSupported Watchdog / Auto RestartSupported Environmental MonitoringOptional with APC Environmental Monitoring Accessories Enterprise IntegrationCompatible with APC InfraStruXure and SNMP Management Platforms Surge Energy Rating480 Joules EMI/RFI FilteringFull-Time Multi-Pole Noise Filtering Batteries & Runtime Battery TypeSealed Lead-Acid Included Battery Modules2 Replacement BatteryAPCRBC140 Battery Quantity1 RBC Battery Capacity960 VAh Typical Runtime @ 50% Load13.1 Minutes (2200W) Typical Runtime @ Full Load4.4 Minutes (4200W) Recharge Time2.5 Hours Battery Life3-5 Years Battery Charge Power382W Hot-Swappable BatteriesYes Extended RuntimeYes Compatible External Battery Packs
SURT192RMXLBP3U 1 2880 VAh
SURT192RMXLBP3U 2 4800 VAh
SURT192RMXLBP3U 3 6720 VAh
SURT192RMXLBP3U 4 8640 VAh
SURT192RMXLBP3U 5 10560 VAh
SURT192RMXLBP3U 6 12480 VAh
SURT192RMXLBP3U 8 16320 VAh
SURT192RMXLBP3U 10 20160 in (130 mm) Width17.01 in (432 mm) Depth25.98 in (660 mm) Net Weight128 lbs (58.06 kg) Rack PreferenceLower ColorBlack IP Temperature32°F to 104°F (0°C to 40°C) Storage Temperature5°F to 113°F (-15°C to 45°C) Operating Humidity0-95% Non-Condensing Storage Humidity0-95% Non-Condensing Operating AltitudeUp to 10,000 ft (3,048 m) Storage AltitudeUp to 50,000 ft (15,240 m) Acoustic Noise55 dBA Heat Dissipation1780 BTU/hr Conformance Product CertificationCSA UPS TypeSmart-UPS RT On-Line ConditionNew Batteries, Refurbished UPS Warranty1 Year Full Replacement Warranty Included
