Manufacturer: APC

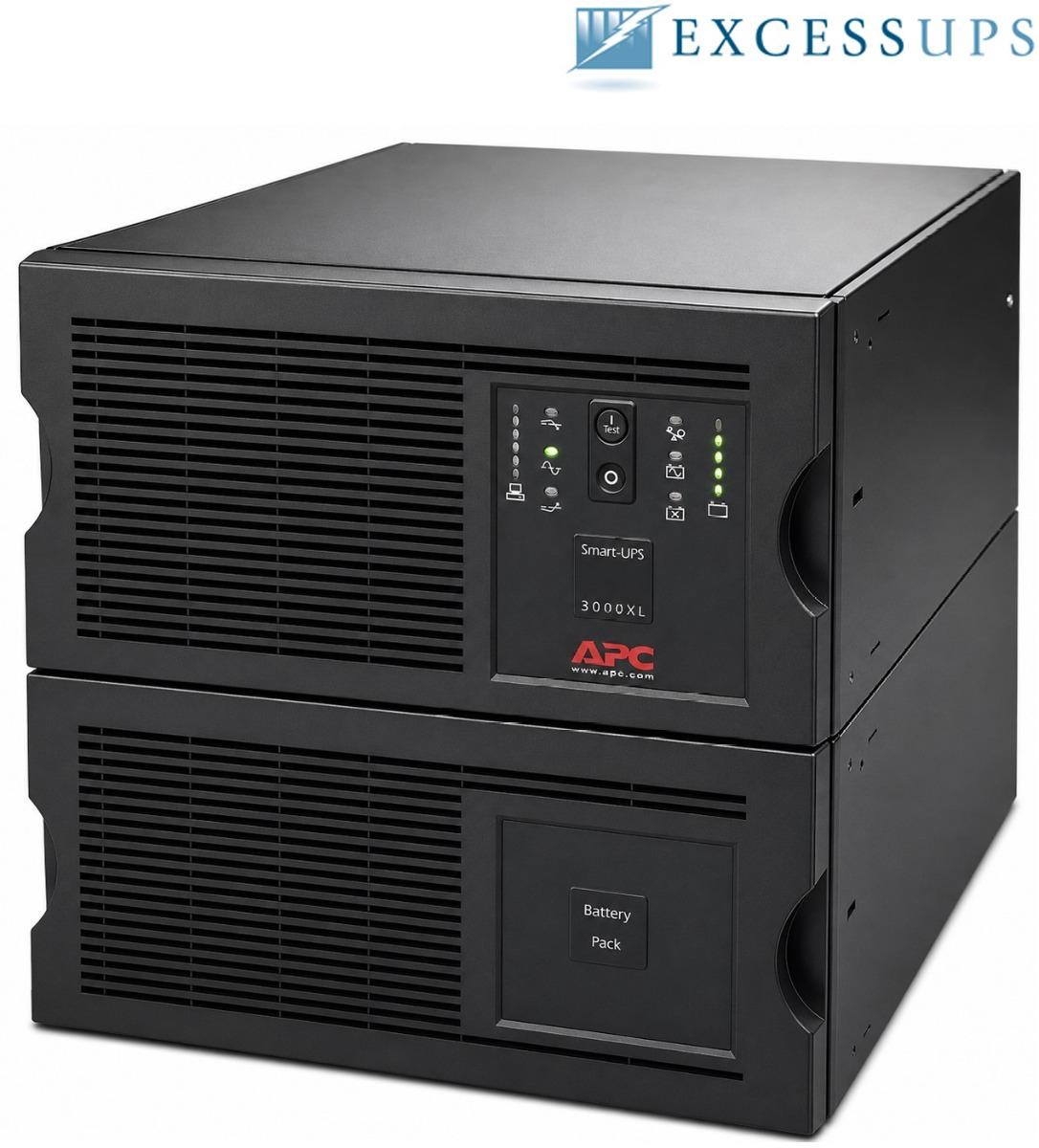

Model: APC Smart-UPS XL 3000VA 2700W, RM, 5U, 120V
Condition: New batteries, refurbished UPS
Part Number: SUA3000XL
Maximum output: 2700W / 3000VA
Typical backup time at half load: 17.0 minutes (1350 Watts)
Typical backup time at full load: 5.0 minutes (2700 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS XL 3000VA 2700W SUA3000XL 30A 120V - User Manual
SUA3000XL - APC Smart-UPS XL Specifications:Main:
Main Input Voltage
120V
Main Output Voltage
120V
Rated Power in W
2700W
Rated Power in VA
3000VA
Input Connection Type
NEMA L5-30P
Output Connection Type
(9) NEMA 5-15R
(2) NEMA 5-20R
Number of Rack Unit
5U
Cable Length
2.44 m
Number of Cables
1
Battery Type
Lead-Acid Battery
General:
Number of Power Module Filled Slots
0
Number of Power Module Free Slots
0
Product Web Sub-family
Extended Run
Redundant
No
Physical:
Color
Black
Height
44.4 cm
Width
22.1 cm
Depth
49.5 cm
Net Weight
63.64 kg
Mounting Location
Front
Mounting Preference
No Preference
Mounting Mode
Rack-mounted with kit
Two Post Mountable
0
USB Compatible
No
Input:
Input Voltage Limits
75 - 154 V adjustable
82 - 144 V
Network Frequency
50/60 Hz +/- 3 Hz auto-sensing
Output:
Harmonic Distortion
Less than 5 % at full load
Maximum Configurable Power in VA
3000VA
Maximum Configurable Power in W
2700W
Transfer Time
2 ms typical
Topology
Line Interactive
Waveform Type
Sine wave
Efficiency
96 % (full load)
Output Frequency
47 - 53 Hz for 50 Hz nominal sync to mains
57 - 63 Hz for 60 Hz nominal sync to mains
Conformance:
Product Certifications
CSA
Environmental:
Acoustic Level
53 dBA
Heat Dissipation
305 Btu/h
Operating Altitude
0 - 10000 ft
Ambient Air Temperature for Operation
0 - 40 °C
Ambient Air Temperature for Storage
-15 - 45°C
Storage Altitude
0.00 - 15240.00 m
Relative Humidity
0 - 95 %
Storage Relative Humidity
0 - 95 %
Batteries & Runtime:
Extended Runtime
1
Number of Battery Filled Slots
0
Number of Battery Free Slots
3h
Number of Battery Replacement Quantity
1
Battery Life
3-5 years
Replacement Battery
RBC55
Battery Power in VAH
816 VAh runtime
Battery Charge Power (Watts)
271 W rated
Battery Option
SUA48XLBP 1 2448 VAh
SUA48XLBP 2 4080 VAh
SUA48XLBP 3 5712 VAh
UXABP48 1 4176 VAh
UXABP48 2 7536 VAh
UXABP48 3 10896 VAh
SUA48XLBP 8 13872 VAh
SUA48XLBP 10 17136 VAh
Communications & Management:
Control Panel
LED status display with load and battery bar-graphs and on line : on battery : replace battery : and overload indicators
Emergency Power Off (EPO)
Yes
Free Slots
Surge Protection and Filtering:
Surge Energy Rating
480 J
Noise Suppression
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
