Manufacturer: APC

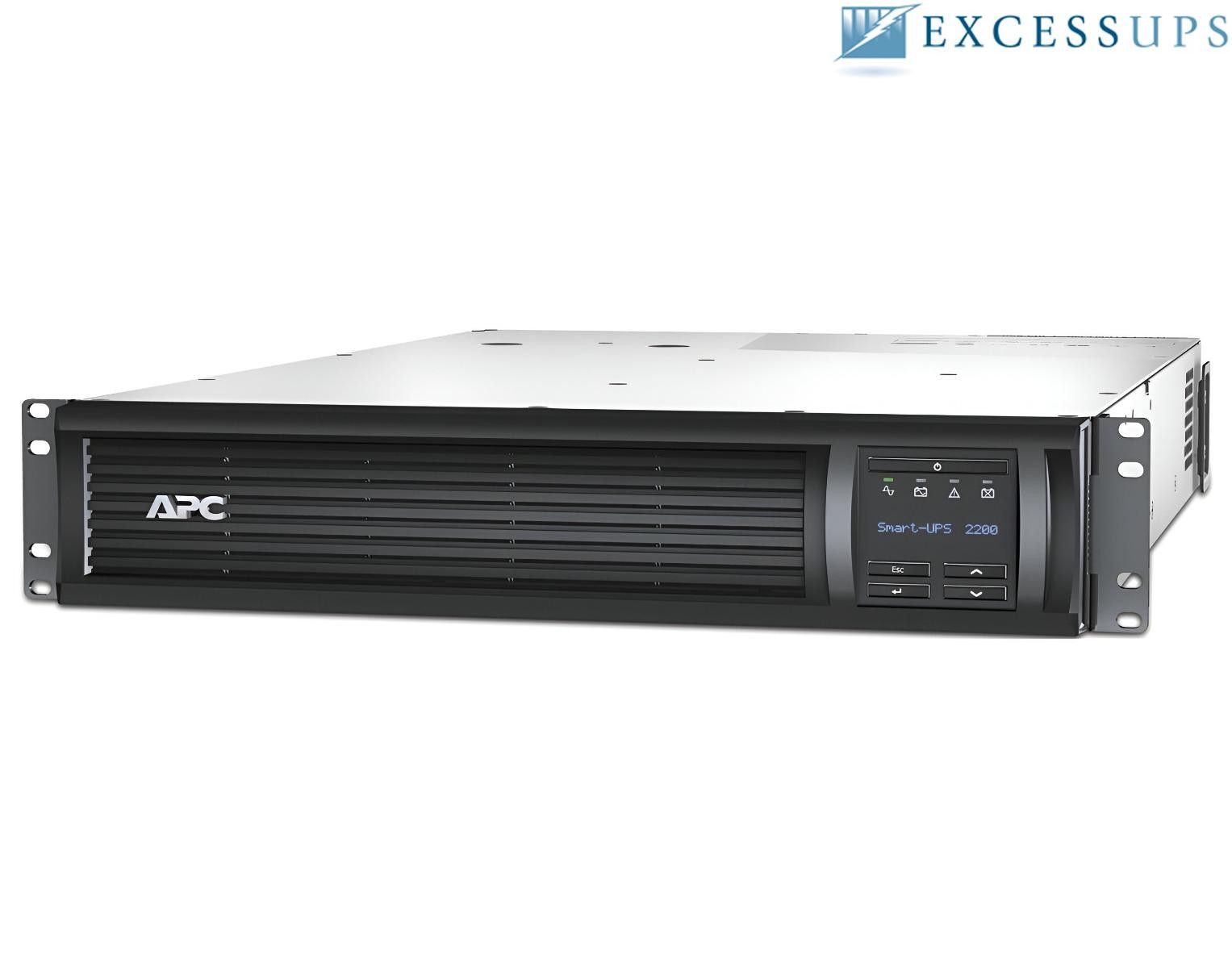

Model: APC Smart-UPS 2200VA 1920W, LCD, RM, 2U, 20A, 120V, SmartConnect model
Condition: New batteries, refurbished UPS
Part Number: SMT2200RM2UC
Maximum output: 1920W / 2200VA
Typical backup time at half load: 18 minutes (960 Watts)
Typical backup time at full load: 6 minutes (1920 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS 2200VA 1920W Smartconnect LCD RM 2U SMT2200RM2UC Manual
SMT2200RM2UC - APC Smart-UPS 2200VA Specifications:
Main:
Main Input Voltage
120V
Other Input Voltage
110V
125V
Main Output Voltage
120V
Other Output Voltage
110V
125V
Rated Power in W
1920W
Rated Power in VA
2200VA
Input Connection Type
NEMA 5-20P
Output Connection Type
(6) NEMA 5-15R
(2) NEMA 5-20R
Number of Rack Unit
2U
Cable Length
8 ft (2.44 m)
Number of Cables
1
Battery Type
Lead-Acid Battery
Physical:
Color
Black
Height
3.39 in (8.6 cm)
Width
17.01 in (43.2 cm)
Depth
26.89 in (68.3 cm)
Net Weight
93.28 lb(US) (42.31 kg)
Mounting Location
Front
Mounting Preference
Lower
Mounting Mode
Rack-mounted
Two Post Mountable
0
USB Compatible
Yes
Input:
Efficiency at Full Load
75 - 154V adjustable
82 - 143V
Input Frequency
50/60 Hz +/- 3 Hz auto-sensing
Output:
Harmonic Distortion
Less than 5%
Maximum Configurable Power in VA
2200VA
Max Configurable Power (Watts)
1980W
Transfer Time
6ms typical : 10ms maximum
Topology
Line Interactive
Waveform Type
Sine wave
Output Frequency (sync to mains)
50/60 Hz +/- 3 Hz sync to mains
Conformance:
Product Certifications
CULus
ENERGY STAR V2.0 (USA)
Environmental:
Acoustic Level
55 dBA
Heat Dissipation
215 Btu/h
Operating Altitude
0 - 10000 ft
Ambient Air Temperature for Operation
32 - 104 °F (0 - 40 °C)
Ambient Air Temperature for Storage
5 - 113°F (-15 - 45°C)
Storage altitude
0 - 50000 ft (0.00 - 15240.00 m)
Relative Humidity
0 - 95 %
Storage Relative Humidity
0 - 95 %
Batteries & Runtime:
Typical Recharge Time
3-8h
RBC Quantity
1
Battery Life
3-5 years
Replacement Battery
RBC43
Battery Power in VAH
538 VAh capacity
538 VAh runtime
Battery Charge Power (Watts)
179 W rated
Communications & Management:
Control Panel
Multi-function LCD status and control console
Emergency Power Off (EPO)
Yes
Free Slots
1
Control Panel
LED status display with on line : on battery : replace battery and overload indicators
Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering:
Surge Energy Rating
530 J
