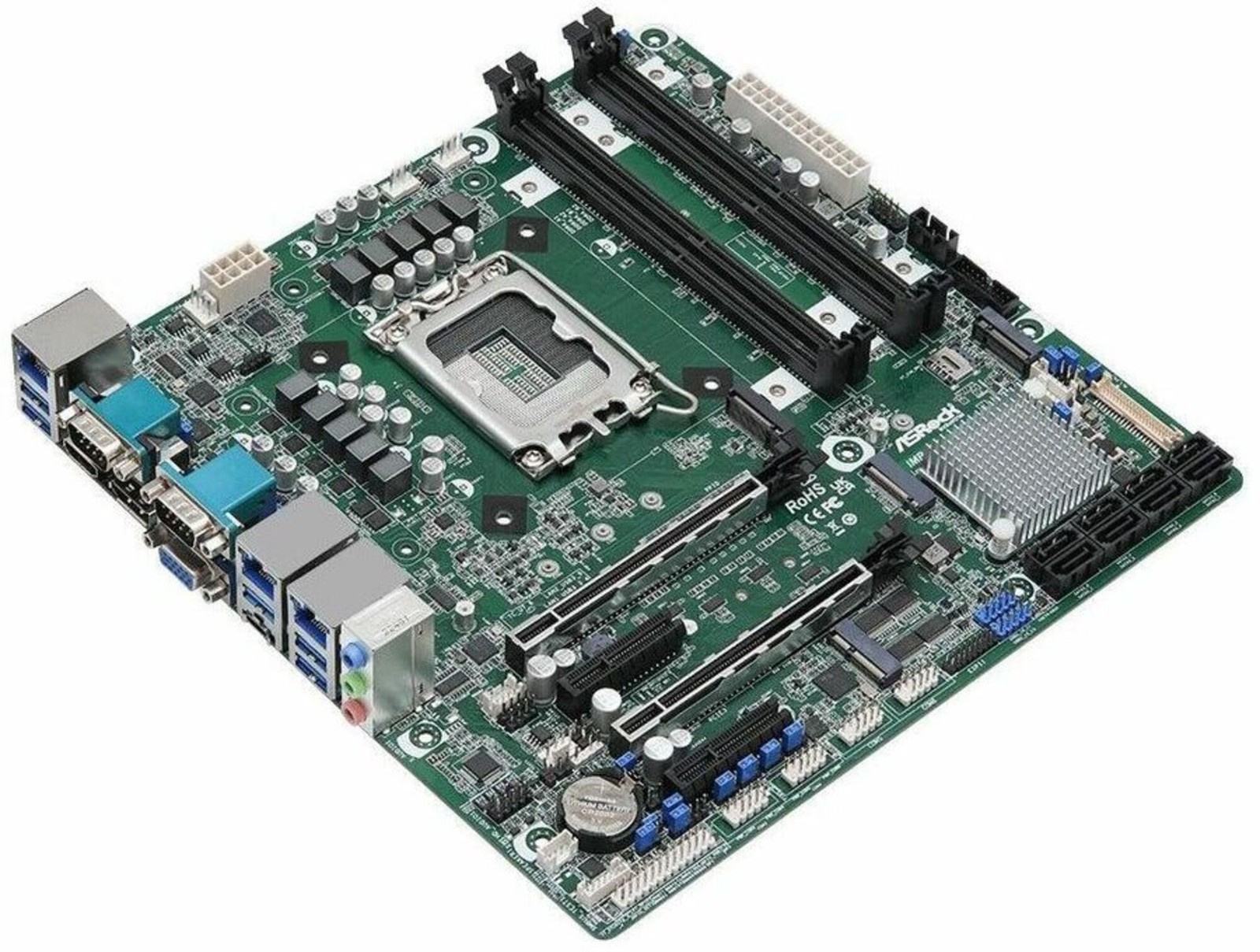

Image is an illustration, may not reflect the exact product sold. ASRock - IMB-X1314 - ASRock IMB-X1314 Industrial Motherboard - Intel W680 Chipset - Socket LGA-1700 - Micro ATX - Core 448.11
IMB-X1314
Micro ATX Motherboard
Intel 12th Gen Alder Lake-S Core Processors with W680 chipset
4 x 288-pin ECC/non-ECC Long-DIMM DDR4 3200 MHz, up to 128GB (32GB per DIMM)
1 x PCIex16 (Gen4), 1 x PCIex8 (Gen4), 2 x PCIex4 (Gen4), 1 x USB 3.2 Gen2x2 Type C, 5 x USB 3.2 Gen2, 2 x USB 3.2 Gen1, 4 x USB 2.0, 1 x M.2 Key E, 2 x M.2 Key M, 1 x M.2 Key B, 6 x COM, 8 x SATA3
3 x Intel 2.5 Gigabit LAN
Support Quad display, 1 x , 1 x DP 1.4a, 1 x VGA, 1 x LVDS
TPM2.0 on board IC
Supports Intel vPro, AMT, VMD RAID 0/1/5/10
ATX PWR (24+8 Pin)
Detail Specifications
Form Factor
Micro-ATX
Processor System
CPU
Intel 12th Gen (Alder Lake-S) Core Processors, up to 125W
Chipset
Intel W680
Socket
LGA 1700
BIOS
AMI SPI 256 Mbit
Memory
Technology
Dual Channel ECC/non-ECC DDR4 3200 MHz
Capacity
128GB (32GB per DIMM)
Socket
4 x 288-pin Long-DIMM
Graphics
Controller
Intel UHD Graphics
HDMI
HDMI 2.0b
Max resolution up to 4096 x 2160 at 60Hz
DisplayPort
DisplayPort 1.4a, DP++
Max resolution up to 4096x2160 at 60Hz
VGA
Max resolution up to 1920 x 1200 at 60Hz
LVDS
Dual channel 24 bit up to 1920 x 1200 at 60Hz
MultiDisplay
Quad Display
Expansion Slot
PCIe
2 x PCIe Gen4 Slots (PCIE1/PCIE3:single at x16(PCIE1)
dual at x8 (PCIE1) / x8 (PCIE3))
(PCIE1: Support riser card x8/x8)
2 x PCIex4 (Gen4)
If using PCIEx8/x16 card on PCIE2/PCIE4 slot, M.2 Key M2(M2_M2) and M.2 Key E(M2_E1) are limited to install.
M.2
1 x M.2 (Key B, 3042/3052) with PCIex1, USB 3.2 Gen1, USB 2.0 and SIM for 4G/5G
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless
SIM Socket
1 x SIM socket connected to M.2 key B
Audio
Interface
Realtek ALC897 HD, High Definition Audio.
Ethernet
Controller/ Speed
LAN1: Intel I225LM with 10/100/1000/2500 Mbps, supports AMT/vPro
LAN2: Intel I225LM with 10/100/1000/2500 Mbps
LAN3: Intel I225LM with 10/100/1000/2500 Mbps
Connector
3 x RJ-45
Rear I/O
HDMI
1 x
DisplayPort
1 x DP 1.4a
VGA
1
Ethernet
3 x 2.5 Gigabit LAN
USB
5 x USB 3.2 Gen2
1 x USB 3.2 Gen2x2 (20G) Type C
Audio
3 (Line-In/Line-Out/Mic-In)
Serial Port
COM1, COM2 (RS- )
Internal Connector
USB
2 x USB 3.2 Gen1 (1 x USB 3.2 header)
4 x USB 2.0 (2 x 2.54 pitch header)
COM
COM3, COM4, COM5, COM6 (RS-232)
Parallel
1 (shared with GPIO)
GPIO
8 x GPI, 8 x GPO (shared with LPT header)
TPM
TPM 2.0 on board IC
LVDS
1
Speaker Header
1
PS/2
1 x PS/2 header
Thunderbolt header
1 (only support by PCIE4)
Storage
M.2
1 x M.2 (Key M, up to 25110) with PCIex4 Gen4 for SSD
1 x M.2 (Key M, 2242/2260/2280) with PCIex4 Gen3 for SSD
SATA
8 x SATA3
RAID
Intel VMD RAID 0/1/5/10
supported by identical interface (PCIE or SATA)
PCIE interface: M.2 Key B + M.2 Key M1/2 or 2xM.2 Key M
SATA interface: SATA port
Watchdog Timer
Output
From Super I/O to drag RESETCON NUMBER
Interval
256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR
ATX PWR (24+8-pin)
Power On
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Operating Temp
0 o C - 60 o C
Storage Temp
-40 o C - 85 o C
Operating Humidity
5% - 90%
Storage Humidity
5% - 90%
Accessories
Gift Package
2 x SATA Data Cable (14G00010107DAK)
1 x I/O Shield (13G020776000AK)
4 x SCREW M2x2, D equal 5 (13G020302031AK)
Bulk Package
1 x I/O Shield (13G020776000AK)
4 x SCREW M2x2, D equal 5 (13G020302031AK)
Item Dimension (L"xW"xH")
11 x 10 x 9
Weight
8 lbs
Warranty Information
26 months
Product Details Manufacturer ASRock Mfr Part IMB-X1314 Weight 8.0000 UPC
