Product Description

Please note: The buyer is responsible for customs clearance and payment of duties.

If you have other configuration needs, you can contact us and we will customize it for you.

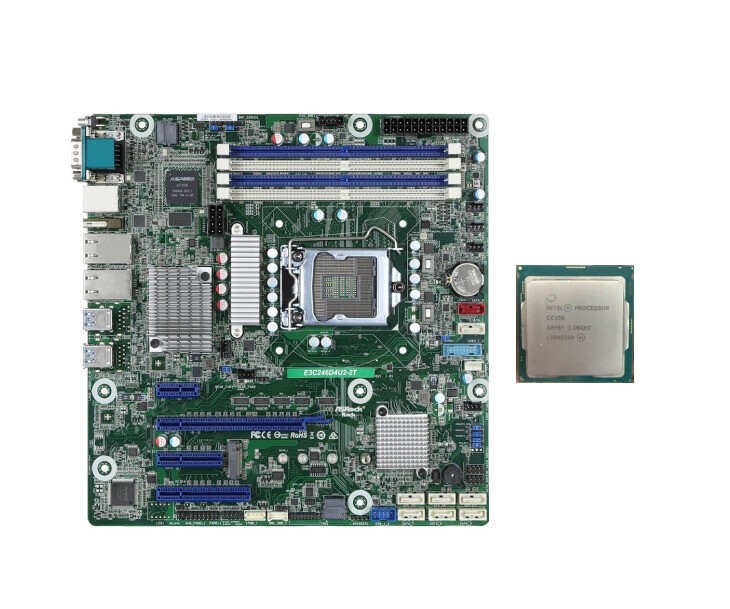

ASRock Rack E3C246D4U2-2T DDR4 LGA1151 MotherboardWith Intel CC150 3.5 GHz 8 Cores CPU

Package include:

1x Asrock Rack E3C246D4U2-2T Motherboard

1x Intel CC150 3.50GHz Processors

Specifications

Physical StatusForm FactormATXDimensions9.6'' x 9.6'' (244 mm x244 mm)Processor SystemCPUSupports Intel®Xeon®E-2100/E-2200 Series ProcessorsSocketSingle Socket LGA 1151Thermal Design PowerMax. 95WChipsetIntel®C246System MemorySupported DIMM Quantity4 DIMM slotsSupported TypeDual Channel memory technology
DDR4 288-pin ECC/non-ECC UDIMMMax. Capacity per DIMM32GBMax. DIMM FrequencyECC/Non-ECC UDIMM: 2666/2400/2133 MHzVoltage1.2VPCIe Expansion Slots (SLOT7 close to CPU)PCIe x 16- SLOT6: PCIe3.0 x16, auto switch to x8 when SLOT4 is occupied [CPU]PCIe x 8- SLOT4: PCIe3.0 x8 [CPU]PCIe x 4- SLOT5: PCIe3.0 x4 [PCH]**Only supported for E3C246D4U2-2L2TPCIe x 1- SLOT7: PCIe3.0 x1 [PCH]Other PCIe Expansion ConnectorsM.2 slot- (2230/2242/2260/2280, Supports PCIE3.0(X4)/SATA3)SATA/SAS StoragePCH Built-in Storage- 8 x SATA3 6Gb/s (SATA0-7, SATA_0 supports SATA DOM)
- 7 x SATA3 6Gb/s (SATA1-7) and 1 x M.2 SSD SATA connected*

*The M.2 slot (M2_1) is shared with the SATA_0 connector. When M2_1 is populated with a M.2 SATA3 module, the Pin 7 of SATA_0 is disabled.EthernetInterface- 10000/1000 /100 MbpsAdditional GbE Controller- 2 x RJ45 10G base-T by Intel®X550-AT2
- 1 x RJ45 Dedicated IPMI LAN port by RTL8211E
- Supports Wake-On-LAN - Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE
- LAN1 supports NCSIServer ManagementBMC Controller- ASPEED AST2500IPMI Dedicated GLAN- 1 x Realtek RTL8211E for dedicated management GLANFeatures- Watch Dog
- NMIGraphicsController- ASPEED AST2500VRAM- DDR4 256MB (128MBx16)Rear I/OUID Button/LED- 1VGA Port- 1 x D-SubSerial Port- 1USB 3.2 Gen1 Port- 2USB 3.2 Gen2 Port- 2RJ45- 2x RJ45: 2x 10GbE by Intel®X550-AT2
- 1x IPMI dedicated LAN
- LAN Ports with LED (ACT/LINK LED and SPEED LED)HDMI- 1Internal Connector/HeadersPower Connector- 1x (24-pin) + 1x (8-pin)Auxiliary Panel Header- 1 (includes chassis intrusion, location button & LED, and front LAN LED)System Panel- 1 (RST, PWRBTN, HDDLED, PWRLED)Buzzer- 1Fan Header- 6(1CPU/3Front/2Rear)Thermal Sensor Header- 1 TR1TPM Header- 1SGPIO Header- 2SMBus header- 1PMBus header- 1IPMB Header- 1Clear CMOS- 1 (header and short pin)ME/SPS Recovery- 1USB 3.2 (Gen1) Header- 1 (supports 2 USB 3.1 Gen1 ports)USB 2.0 Header- 1 (supports 2 USB 2.0 ports)LED Indicators80 Debug Port LED- 1Fan Fail LED- 6 (Header)System BIOSBIOS Type- 256 Mb AMI UEFI Legal BIOS
BIOS Features- Plug and Play (PnP)
- ACPI 2.0 Compliance Wake Up Events
- SMBIOS 2.8.0 Support
- ASRock Rack Instant FlashHardware MonitorTemperature- CPU/PCH/DDR/LAN/Storage Temperature Sensing
- MB/Card side/TR1 Temperature SensingFan- CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed ControlVoltage- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +BAT, 3VSB, 5VSBSupported OSOSMicrosoft®Windows®
- Server 2016 (64 bit)
- Server 2019 (64 bit)
Linux
- RedHat Enterprise Linux Server 6.9 (64 bit) / 7.4 (64 bit)
- SUSE Enterprise Linux Server 12 SP1 (64 bit) /
12 SP3 (64 bit)
- Ubuntu 15.10 (64 bit) / 16.04 (64 bit)EnvironmentTemperatureOperation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°CHumidity- Non operation humidity: 20% ~ 90% ( Non condensing)
