please make sure this item is the correct one your wanted before purshasing.

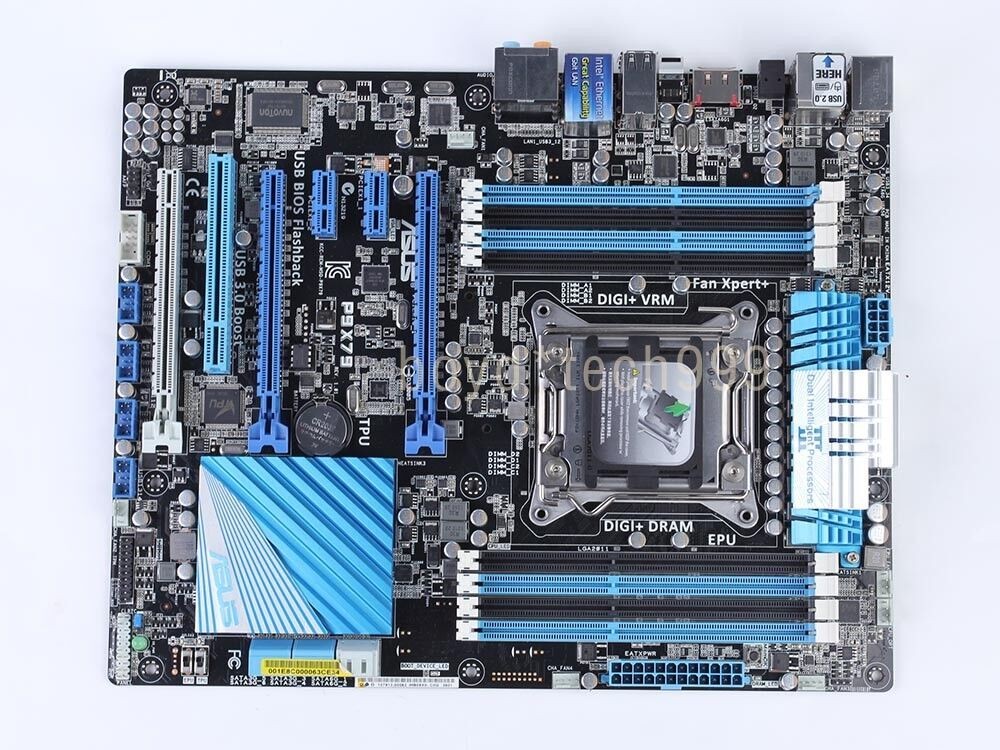

Motherboard Description:

CPU

Intel® Socket 2011 for 2nd Generation Core™ i7 Processors
Supports Intel® Turbo Boost Technology 2
* Refer to ASUS official website for CPU support list

Chipset

Intel® X79

Memory

8 x DIMM, Max. 64GB, DDR3 MHz Non-ECC, Un-buffered Memory
Quad Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to ASUS official website for the Memory QVL (Qualified Vendors Lists).

Multi-GPU Support

Supports NVIDIA® Quad-GPU SLI™ Technology
Supports AMD Quad-GPU CrossFireX™ Technology

Expansion Slots

2 x PCIe 3.0/2.0 x16 (dual x16) *1
1 x PCIe 3.0/2.0 x16 (x8 mode) *1
2 x PCIe 2.0 x1
1 x PCI

Storage

Intel® X79 chipset :
2 x SATA 6Gb/s port(s), white
4 x SATA 3Gb/s port(s), blue
Support Raid 0, 1, 5, 10
ASMedia® ASM1061 controller :
1 x Power eSATA 6Gb/s port(s), green
1 x eSATA 6Gb/s port(s), red

LAN

Intel® 82579V, 1 x Gigabit LAN Controller(s)

Audio

Realtek® ALC892 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
- Blu-ray audio layer Content Protection
- DTS Ultra PC II
- DTS Connect
- Optical S/PDIF out port(s) at back panel

IEEE 1394

VIA® 6315N controller
1 x IEEE 1394a port(s)
(1 at back panel)

USB Ports

ASMedia® USB 3.0 controller :
4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue)
Intel® X79 chipset :
14 x USB 2.0 port(s) (6 at back panel, black+white, 8 at mid-board)

Special Features

ASUS Dual Intelligent Processors 3 with New DIGI+ Power Control :
ASUS TPU :
- Auto Tuning
- TurboV
- TPU switch
ASUS EPU :
- EPU
- EPU switch
ASUS Digital Power Design :
- Industry leading Digital 8 + 2 Phase CPU Power Design
- Industry leading Digital 2 + 2 Phase DRAM Power Design
- CPU Power Utility
- DRAM Power Utility
ASUS Exclusive Features :
- MemOK!
- AI Suite II
- Ai Charger
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB 3.0 Boost
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-pipe solution
- ASUS Fan Xpert+
ASUS EZ DIY :
- USB BIOS Flashback
- ASUS Q-Shield
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
- Multi-language BIOS
ASUS Q-Design :
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector

Back I/O Ports

1 x PS/2 keyboard/mouse combo port(s)
1 x eSATA 6Gb/s
1 x Power eSATA 6Gb/s
1 x IEEE 1394a
1 x LAN (RJ45) port(s)
4 x USB 3.1 Gen 1
6 x USB 2.0 (one port can be switched to USB BIOS Flashback)
1 x Optical S/PDIF out
6 x Audio jack(s)
1 x USB BIOS Flashback Button(s)

Internal I/O Ports

4 x USB 2.0 connector(s) support(s) additional 8 USB 2.0 port(s)
1 x TPM connector(s)
1 x COM port(s) connector(s)
2 x SATA 6Gb/s connector(s)
4 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s) (4 -pin)
4 x Chassis Fan connector(s) (4 -pin)
1 x Optional Fan connector(s) (4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Q-Connector)
1 x MemOK! button(s)
1 x TPU switch(es)
1 x EPU switch(es)
1 x Clear CMOS jumper(s)

BIOS

64 Mb Flash ROM, UEFI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.6, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3

Manageability

WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE

Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Note

*1: This motherboard is ready to support PCIe 3.0 SPEC. Functions will be available when using PCIe 3.0-compliant devices. Please refer to www.asus.com for updated details.

Instructions:

• Please DO NOT use fake memory, because the motherboard maybe can't support.

• Please DO NOT use single-side memory, because some motherboards can't support.

• Some CPUs can't be supported by motherboard, please try to update the BIOS, please note that's not motherboard's defect.


• Some "Can't boot" problem's caused by memory, please clean the memory's gold fingers and clean the motherboard's memory solts.


Package Included:

• 1 * motherboard

• 2 * sata cable

• 1 x I/O back panel
