Package Included:

1 x motherboard

1 x I/O back panel

2 x SATA II cable

Technical Tips:

A. Please do not use fake memory or if you're not sure whether your memory fake or not, please do not try it on our motherboard.
B. Please check your CPU, and RAM without problem, then install on the motherboard.
C.If the motherboard can't run correctly, please first check your CPUwhether can be compatible with our motherboard, then check your videocard or power supply.
D. 90% "can't boot" problem was caused by RAM, please don't use "single side" RAM.

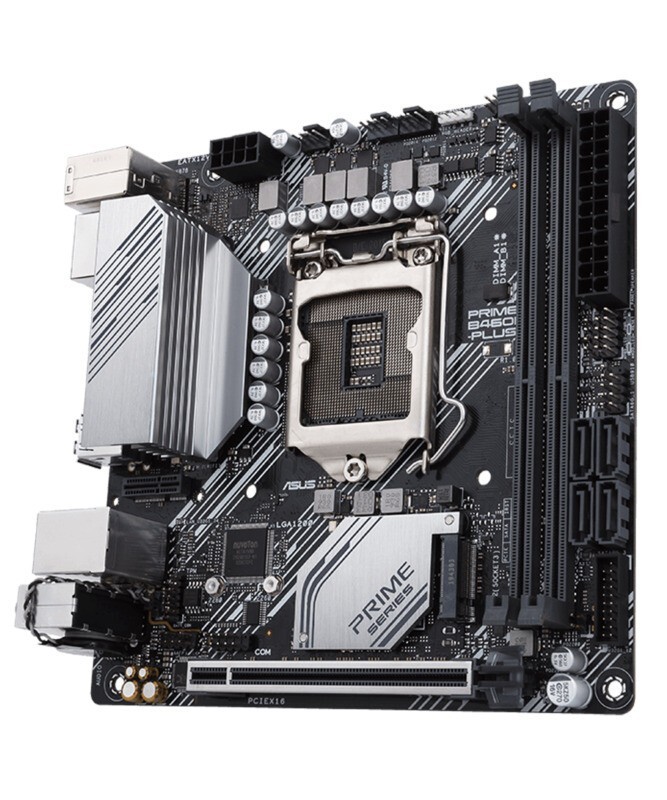

Parts Specification:

CPU

Intel® Socket 1200 - Supports 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*

Supports Intel® 14 nm processors

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

**Intel® Turbo Boost Max Technology 3.0 is supported by CPU type.

Chipset

Intel® B460

RAM

Intel® B460 Chip

2 x DIMM, supports up to 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered memory*

Supports Intel® Extreme Memory Profile (XMP) technology

Graphical display

Integrated Graphics Processor - Supports Intel® UHD Graphics

1 x DisplayPort 1.4

1 x HDMI 1.4b

1 x DVI-D

*Display core specifications may vary between CPU types.

Expansion slot

16-channel CPU-

1 x PCIe 3.0/2.0 x16 expansion card slot (x16 mode)

Storage function (subject to shipment)

Supports a total of 1 x M.2 slot and 4 x SATA 6Gb/s ports

Intel® B460 Chip :

1 x M.2 Socket 3 slot, support M key, 2260/2280 type storage device (PCIE mode)

4 x SATA 6Gb/s ports

Support Raid 0, 1, 5, 10

Intel® Rapid Storage Technology

Intel® Optane™ Memory Technology

Network features

Realtek® RTL8111H, 1 x Gigabit LAN, Supports LANGuard Network Security

Wireless connections

M.2 slot only (Key E) (supports PCIe interface)*

*Wi-Fi module sold separately.

Sound effect

Realtek ALC887 7.1ch Hi-Fi Audio Chip*

- Support: Audio interface detection (Jack-detection), 24-Bit/192kHz playback

Audio function:

- Audio dividing line design

- Layered design of left and right channels

- High quality Japanese audio capacitors

* It needs to cooperate with the HD Audio module on the front panel of the chassis to support 8-channel audio output.

USB interface

Back USB ports (6 in total)

4 x USB 3.2 Gen 1 (up to 5Gbps) ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB port (4 in total)

2 x USB 3.2 Gen 1 (up to 5Gbps) ports

2 x USB 2.0 ports

Software function

ASUS Exclusive Software

Armoury Crate

- Aura Sync

AI Suite 3

- Performance And Power Saving Utility

TurboV EVO

EPU

Digi+ VRM

Fan Xpert 4

- EZ update

ASUS CPU-Z

AI Charger

DAEMON Tools

Norton Anti-virus software (Free Trial for 60 days)

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

ASUS-specific features

ASUS 5X PROTECTION III

- ASUS DIGI+ VRM (- Digital power design with Dr. MOS)

- ASUS Enhanced DRAM Overcurrent Protection

- ASUS ESD Guards

- ASUS LANGuard

- ASUS Overvoltage Protection

- ASUS SafeSlot Core+

- ASUS Stainless-Steel Back I/O

ASUS Q-Design

- ASUS Q-Connector

- ASUS Q-DIMMs

- ASUS Q-Slot

AURA Sync

- Aura RGB header(s)

Backplane I/O Connectors

1 x PS/2 mouse and keyboard interface

1 x DisplayPort connector

1 x HDMI port

1 x LAN (RJ45) port

4 x USB 3.2 Gen 1 ports Type-A

2 x USB 2.0 ports

3 x audio jacks

Internal I/O Interface

1 x CPU Fan Header (1 x 4-pin)

1 x Chassis Fan Header

1 x AAFP Front Audio Header

1 x USB 3.2 Gen 1 (up to 5Gbps) header supports additional 2 USB 3.2 Gen 1 ports

1 x USB 2.0 connector to expand 2 external USB 2.0 ports

1 x M.2 Socket 3 slot,

1 x RGB strip header

1 x SPI TPM header

4 x SATA 6Gb/s device connection sockets

1 x 24-pin EATX motherboard power socket

1 x 8-pin ATX 12V motherboard power socket

1 x M.2 with E key for Wi-Fi module

1 x System Panel Socket

1 x AIO_Water Pump Connector

1 x Clear CMOS Jumper

1 x Serial Connection Socket (COM)

1 x Speaker Connector

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

OS

Windows® 10 64-bit

Dimensions

Mini ITX ; 6.7 in x 6.7 in ( 17.02 cm x 17.02 cm )
