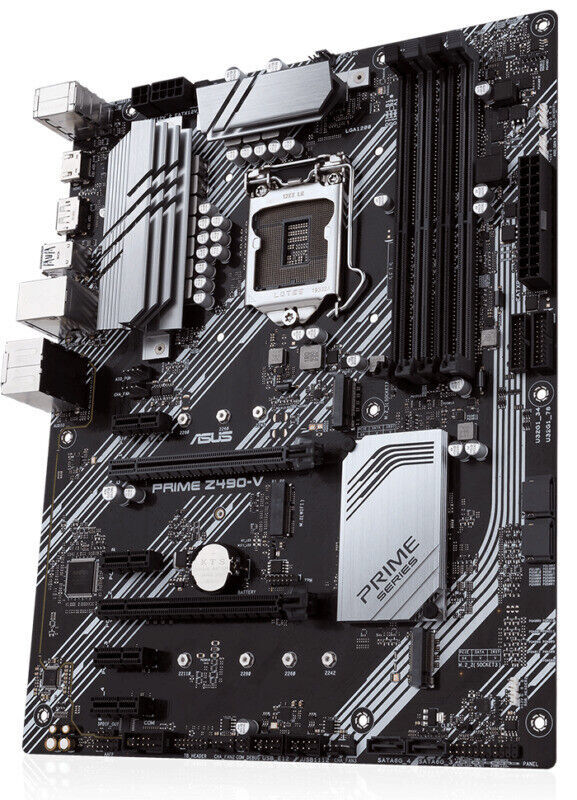

ASUS Prime Z490-V Motherboard Intel Z490 LGA1200 4 x DDR4 ATX 2 x M.2 HDMI

CPU

Intel® Socket 1200 - Supports 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*

Supports Intel® 14 nm processors

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

Chipset

Intel® Z490

RAM

4 x DIMM, support up to 128GB, DDR4 MHz Non-ECC, Un-buffered Memory*

Supports dual-channel memory architecture

Supports Intel® Extreme Memory Profile (XMP) technology

Graphical display

Integrated graphics processor

1 x DisplayPort 1.4**

1 x HDMI 1.4b

*Display core specifications may vary between CPU types.

Multiple Graphic Display Technology

Supports AMD 2-Way CrossFireX technology

Expansion slot

10th Generation Intel® Processors

1 x PCIe 3.0 x16 (x16 mode) *1

Intel® Z490 Chipset

1 x PCIe 3.0 x16 (x4 mode)

4 x PCIe 3.0 x1

Storage function (subject to shipment)

Supports a total of 2 x M.2 slots and 4 x SATA 6Gb/s ports

Intel® Z490 Chipset:

1 x M.2 Socket 3 slot, support M key, 2242/2260/2280 type storage device (SATA & PCIE 3.0 x 4 mode)*2

1 x M.2 Socket 3 slot, support M key, 2242/2260/2280/22110 type storage device (SATA & PCIE 3.0 x 4 mode)

4 x SATA 6Gb/s ports

Support Raid 0, 1, 5, 10

Intel® Rapid Storage Technology

Intel® Optane™ Memory Technology

Network features

Realtek® RTL8111H

Wireless connections

M.2 slot only (Key E) (support CNVI & PCIe interface)*

*Wi-Fi module sold separately.

Sound effect

Realtek ALC 887 8-channel high-definition audio chip

- Support: Audio interface detection (Jack-detection), front panel audio jack swap function (Jack-retasking), Multi-source independent output (Multi-Streaming), 24-Bit/192kHz playback

Audio function:

- Audio dividing line design

- Layered design of left and right channels

- High quality Japanese audio capacitors

USB interface

Back USB ports (6 in total)

2 x USB 3.2 Gen 2 ports (2 x Type-A)

2 x USB 3.2 Gen 1 ports (2 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB ports (8 in total)

4 x USB 3.2 Gen 1 ports

4 x USB 2.0 ports

Software function

ASUS-specific software

Armoury Crate Ultron Game Control Center

- AURA SYNC

AI Suite 3 Smart Butler 3rd Generation

- Performance and power application

EPU intelligent energy-saving processing

Digi+ digital power supply design

Fan Xpert 4

- EZ update

AI Charger

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

Backplane I/O Connectors

1 x PS/2 mouse and keyboard interface

1 x DisplayPort connector

1 x HDMI port

1 x LAN (RJ45) port

2 x USB 3.2 Gen 2 ports Type-A

2 x USB 3.2 Gen 1 ports Type-A

2 x USB 2.0 ports

6 x audio jacks

Internal I/O Interface

1 x CPU fan header

3 x Chassis Fan Connectors

2 x Aura RGB strip headers

1 x Gen 2 programmable header

2 x USB 3.2 Gen 1 (up to 5Gbps) ports support additional 4 USB 3.2 Gen 1 ports

2 x USB 2.0 ports can be extended to 4 external USB 2.0 ports

1 x M.2 Socket 3 slot, support M key, 2242/2260/2280/22110 type storage device (SATA & PCIE 3.0 x 4 mode)

1 x M.2 Socket 3 slot, support M key, 2242/2260/2280 type storage device (SATA & PCIE 3.0 x 4 mode)

1 x SPI TPM header

4 x SATA 6Gb/s device connection sockets

1 x S/PDIF_Out header

1 x 24-pin EATX motherboard power socket

1 x 8-pin EATX 12V power connector

1 x M.2 with E key for Wi-Fi module

1 x Thunderbolt header

1 x Front Panel Audio Interface (AAFP)

1 x 4-pin EATX 12 V power connector

1 x AIO_Water Pump Connector

1 x Clear CMOS Jumper

1 x System Panel Connector

1 x Serial Connection Socket (COM)

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

OS

Windows® 10 64-bit

Dimensions

ATX; 12" x 9.6" (30.5cm x 24.4cm)

• 1 x motherboard.

• 2 x SATA II cables.

• 1 x I/O shield.
