Why bought from us?
Dear customers, if you read our this page, please continue to have a glance at me, I think you will be glad to select our items. We test the motherboard, check the BIOS, enter to window OS, run CPU-Z and 3DMark, to ensure all the parts no defect or DOA. You can buy it at ease.About the package:
We'll seal combo parts in an anti-electrostatic plastic bag with anti-blushing agent, then put it into a safe box.About the warranty:
Our parts have 90 days warranty, please note the following reason we don't accept returns:
A. Bought a wrong item.
B. Ruin the item on purpose.
C. The parts burned by technical mistake when assemble the PC.
D. The parts didn't buy from us. All our parts have warranty label and hidden marks on them, to distinguish our items from others'.
Technical Tips:
A. Please do not use fake memory or if you're not sure whether your memory fake or not, please do not try it on our motherboard.
B. Please check your CPU, and RAM without problem, then install on the motherboard.
C. If the motherboard can't run correctly, please first check your CPU whether can be compatible with our motherboard, then check your video card or power supply.
D. 90% "can't boot" problem was caused by RAM, please don't use "single side" RAM.(Please view the following picture)

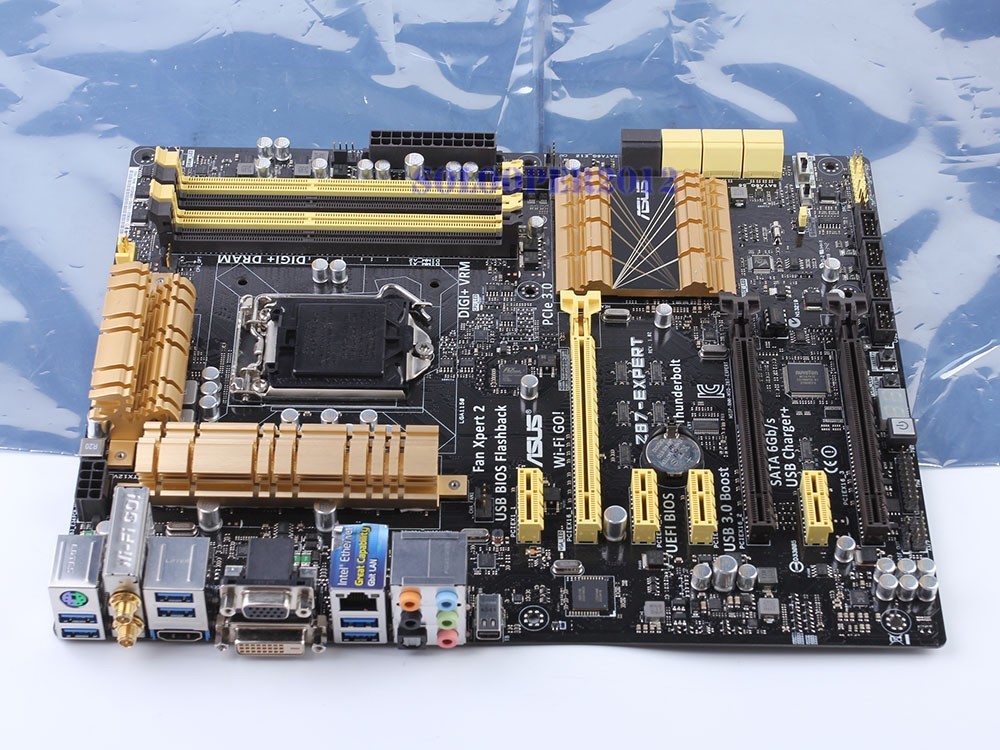

Motherboard specifics:
Packet Included:
1 x motherboard.1 x I/O back panel .
2 x generic SATA II cables.Product Details:
CPU
Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
Chipset
Intel® Z87
Memory
4 x DIMM, Max. 32GB, DDR3 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to ASUS official website for the Memory QVL (Qualified Vendors Lists).
Thunderbolt
VGA output support
Data transfer rate up to 10 Gbps
Daisy-chain up to 6 Thunderbolt device
Graphic
Integrated Graphics Processor
Multi-VGA output support : HDMI/DVI-D/RGB/Thunderbolt ports *1
- Supports HDMI with max. resolution 4096 x 2160 at 24 Hz / 2560 x 1600 at 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 at 60 Hz
- Supports RGB with max. resolution 1920 x 1200 at 60 Hz
- Supports Thunderbolt with max. resolution 4096 x2160 at24 Hz / 3840 x 2160 at 60 Hz
Maximum shared memory of 1024 MB
Supports Intel® HD Graphics, InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Supports up to 3 displays simultaneously
Multi-GPU Support
Supports NVIDIA® Quad-GPU SLI™ Technology *2
Supports AMD Quad-GPU CrossFireX™ Technology
Supports AMD 3-Way CrossFireX™ Technology
Expansion Slots
3 x PCIe 3.0/2.0 x16 (x16 or dual x8 or x8/x4/x4) *3
4 x PCIe 2.0 x1
Storage
Intel® Z87 chipset :
6 x SATA 6Gb/s port(s), yellow
Support Raid 0, 1, 5, 10
Supports Intel® Dynamic Storage Accelerator, Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology*4
ASMedia® ASM1061 controller : *5
2 x SATA 6Gb/s port(s), dark brown
LAN
Intel® I217V, 1 x Gigabit LAN Controller(s)
Intel® LAN- Dual interconnect between the Integrated LAN controller and Physical Layer (PHY)
Audio
Realtek® ALC1150 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 112 dB SNR stereo playback output (Line-out at rear) and 104 dB SNR recording input (Line-in)
Audio Feature :
- Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
- DTS Ultra PC II
- DTS Connect
- Optical S/PDIF out port(s) at back panel
- BD Audio Layer Content Protection
USB Ports
Intel® Z87 chipset :
4 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 2 at mid-board)
Intel® Z87 chipset :
8 x USB 2.0/1.1 port(s) (8 at mid-board)
ASMedia® USB 3.0 controller :
4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue)
Special Features
ASUS Dual Intelligent Processors 4 with 4-Way Optimization :
- The tuning key perfectly consolidates ASUS-exclusive DIGI+ Power Control, TPU, EPU, and Fan Xpert 2 optimize the digital power setting, system performance, power saving and whole system cooling configuration
ASUS 5X PROTECTION :
- ASUS DIGI+ VRM - 8 Phase digital power design
- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
- ASUS ESD Guards - Enhanced ESD protection
- ASUS All 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability
- ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating
ASUS EPU :
- EPU
- EPU switch
ASUS Digital Power Design :
- Industry leading Digital 8 Phase Power Design
- Industry leading Digital 2 Phase DRAM Power Design
- ASUS DIGI+ VRM Utility
- CPU Power Utility
- DRAM Power Utility
ASUS Wi-Fi GO!
- Wi-Fi GO! Function: Cloud GO!, DLNA Media Hub, Smart Sensor Control, Remote Desktop, Remote Keyboard & Mouse, File Transfer, Capture & Send
- Wi-Fi Engine for network sharing and connection: Client Mode, AP Mode
- Wi-Fi GO! & NFC Remote for portable Smartphone/Tablet, supporting iOS & Android systems
ASUS Exclusive Features :
- USB BIOS Flashback
- MemOK!
- AI Suite 3
- Ai Charger+
- USB Charger+
- Anti-Surge
- Onboard Button : Power
- Front Panel USB 3.0 Support
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
- USB 3.0 Boost
- Disk Unlocker
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert 2
ASUS EZ DIY :
- DirectKey
- Precision Tweaker 2
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- Multi-language BIOS
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
100% All High-quality Conductive Polymer Capacitors
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)
Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x Thunderbolt port(s)
1 x HDMI
1 x LAN (RJ45) port(s)
6 x USB 3.1 Gen 1 (blue)
1 x Optical S/PDIF out
6 x Audio jack(s)
1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n and Bluetooth v4.0/3.0+HS)
Internal I/O Ports
1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
4 x USB 2.0 connector(s) support(s) additional 8 USB 2.0 port(s)
1 x TPM header
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
4 x Chassis Fan connector(s) (4 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Q-Connector)
1 x DirectKey Button(s)
1 x DRCT header(s)
1 x MemOK! button(s)
1 x TPU switch(es)
1 x EPU switch(es)
1 x Power-on button(s)
1 x Clear CMOS jumper(s)
1 x USB BIOS Flashback button(s)
BIOS
64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.7, ACPI 5.0, Multi-language BIOS,
ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions, and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability
WfM 2.0, DMI 2.7, WOL by PME, PXE
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Note
*1: DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays
*2: With 2 PCIex16 graphics card.
*3: Thunderbolt port shares bandwidth with PCIe x1_2/4 slots. The Thunderbolt port default runs at X4(Auto) mode for system resource optimization.
*4: Supports on Intel® Core™ processor family
*5: These SATA ports are for data hard drivers only. ATAPI devices are not supported.
