Welcome to here, thank you for viewing our page. We will provide you best serviceand high quality products.

Every Item will be inspect before ship it out,we ensure it qualified in orders, and everyone will be packaged carefully. You must be happy to do business with us.

we specialize in computer accessories and so on. we only sell parts with confidence.

Note：

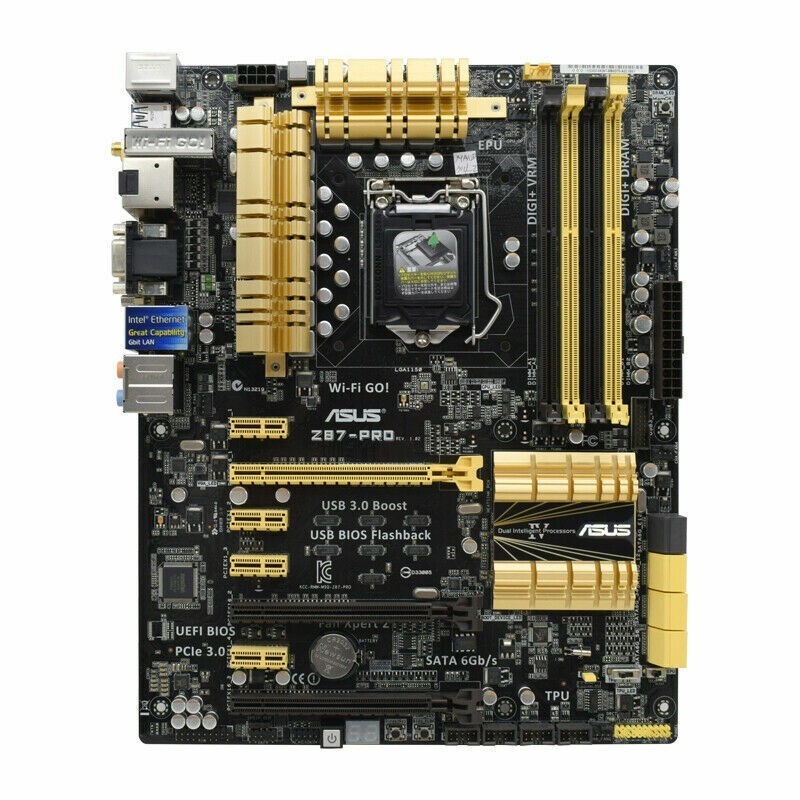

Photo above is only for illustration purposes.

Item Including：
1 x motherboard
1 x I/O back panel
2 x generic SATA II cables
no other accessories included.ItIemintroduction

Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.Chipset
Intel® Z87Memory
4 x DIMM, Max. 32GB, DDR3 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.Graphic
Integrated Graphics Processor
Multi-VGA output support : HDMI/DVI-D/RGB/DisplayPort 1.2 ports *1
- Supports HDMI with max. resolution 4096 x 2160 at 24 Hz / 2560 x 1600 at 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 at 60 Hz
- Supports RGB with max. resolution 1920 x 1200 at 60 Hz
- Supports DisplayPort with max. resolution 4096 x 2160 at 24 Hz / 3840 x 2160 at 60 Hz
Maximum shared memory of 1024 MB
Supports Intel® HD Graphics, InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Supports up to 3 displays simultaneouslyMulti-GPU Support
Supports NVIDIA® Quad-GPU SLI™ Technology *2
Supports AMD Quad-GPU CrossFireX™ Technology
Supports AMD 3-Way CrossFireX™ TechnologyExpansion Slots
2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
1 x PCIe 2.0 x16 (x4 mode) *3
4 x PCIe 2.0 x1 *4Storage
Intel® Z87 chipset :
6 x SATA 6Gb/s port(s), yellow
Support Raid 0, 1, 5, 10
Supports Intel® Dynamic Storage Accelerator, Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology*5
ASMedia® ASM1061 controller : *6
2 x SATA 6Gb/s port(s), dark brownLAN
Intel® I217V, 1 x Gigabit LAN Controller(s)
Intel® LAN- Dual interconnect between the Integrated LAN controller and Physical Layer (PHY)Wireless Data Network
Wi-Fi 802.11 a/b/g/n
Supports dual band frequency 2.4/5 GHzAudio
Realtek® ALC1150 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 112 dB SNR stereo playback output (Line-out at rear) and 104 dB SNR recording input (Line-in)
Audio Feature :
- Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
- DTS Ultra PC II
- DTS Connect
- Optical S/PDIF out port(s) at back panel
- BD Audio Layer Content ProtectionUSB Ports
Intel® Z87 chipset :
4 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 2 at mid-board)
Intel® Z87 chipset :
8 x USB 2.0/1.1 port(s) (8 at mid-board)
ASMedia® USB 3.0 controller :
4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue)Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
6 x USB 3.1 Gen 1 (blue)
1 x Optical S/PDIF out
6 x Audio jack(s)
1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n and Bluetooth v4.0/3.0+HS)Internal I/O Ports
1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
4 x USB 2.0 connector(s) support(s) additional 8 USB 2.0 port(s)
1 x TPM header
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
4 x Chassis Fan connector(s) (4 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Q-Connector)
1 x DirectKey Button(s)
1 x DRCT header(s)
1 x MemOK! button(s)
1 x TPU switch(es)
1 x EPU switch(es)
1 x Power-on button(s)
1 x Clear CMOS jumper(s)
1 x USB BIOS Flashback button(s)BIOS
64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.7, ACPI 5.0, Multi-language BIOS,
ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions, and ASUS DRAM SPD (Serial Presence Detect) memory informationForm Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

• Economy shipping:Usually To all countries will be shipped via AIR MAIL ,not expedited shipping.Usually to USA,UK,EU,CA ,AU need 10-25 days arrive other country 12-35 days .

• Expedited shipping:,EU,USA, CA ,AU ,Europe Usually need 3-5 days arrive.other country 4-7 days.

• ChooseExpedited shipping, may produce be extra costs（duties taxes）Thesecharges are the buyer’s responsibility. Please check with yourcountry’s customs office to determine what these additional costs willbe prior to offerding/buying shipping fee except.

• Wecan not mark backplate as gift , since Your Country customs andinternational customs regulations prohibit such behavior, thank youfor your understanding

• Order can not be shipping to any P.O boxes. Order can only be shipped to Details address.

• Incase you haven't recieved the packet, please check with your local postoffice first, because the packet will arrive there. Duo to differentcountry, some local post office can't offer more detailed trackingstatus in time, it perhaps only show the shipment infor just left HongKong.

Service：

• PayPalis the only online payment method we accept. Please make sure youhave a valid/confirmed PayPal account prior offerding. And please makesure that your PayPal registed address is the same with your registed address.


• All items are sold with 90 days warranty unless otherwise stated in the sale.

• Refundor replacement requirements apply only to the date of the requestwithin 90 days. if the product is defective or not as described wewill replace the product or refund.

• Pleasedo not return any items without an authorization number or otherinstructions by us. Any packages that are send without our knowledge will be refused and no replacements will be issued.

• We pride ourselves in offering very high level of customer service and strive to be the best marketplace seller online.

• Pleasecontact us before leaving any negative or neutral response, so we canhelp you solve any problem whether pre-sale or after sale.

• Ifthere are any queries please do not hesitate to contact us via ’smessaging service, we will get back to ALL messages within 24 hours Monday-Friday.
