Wavlink - Bringing Technology to Life

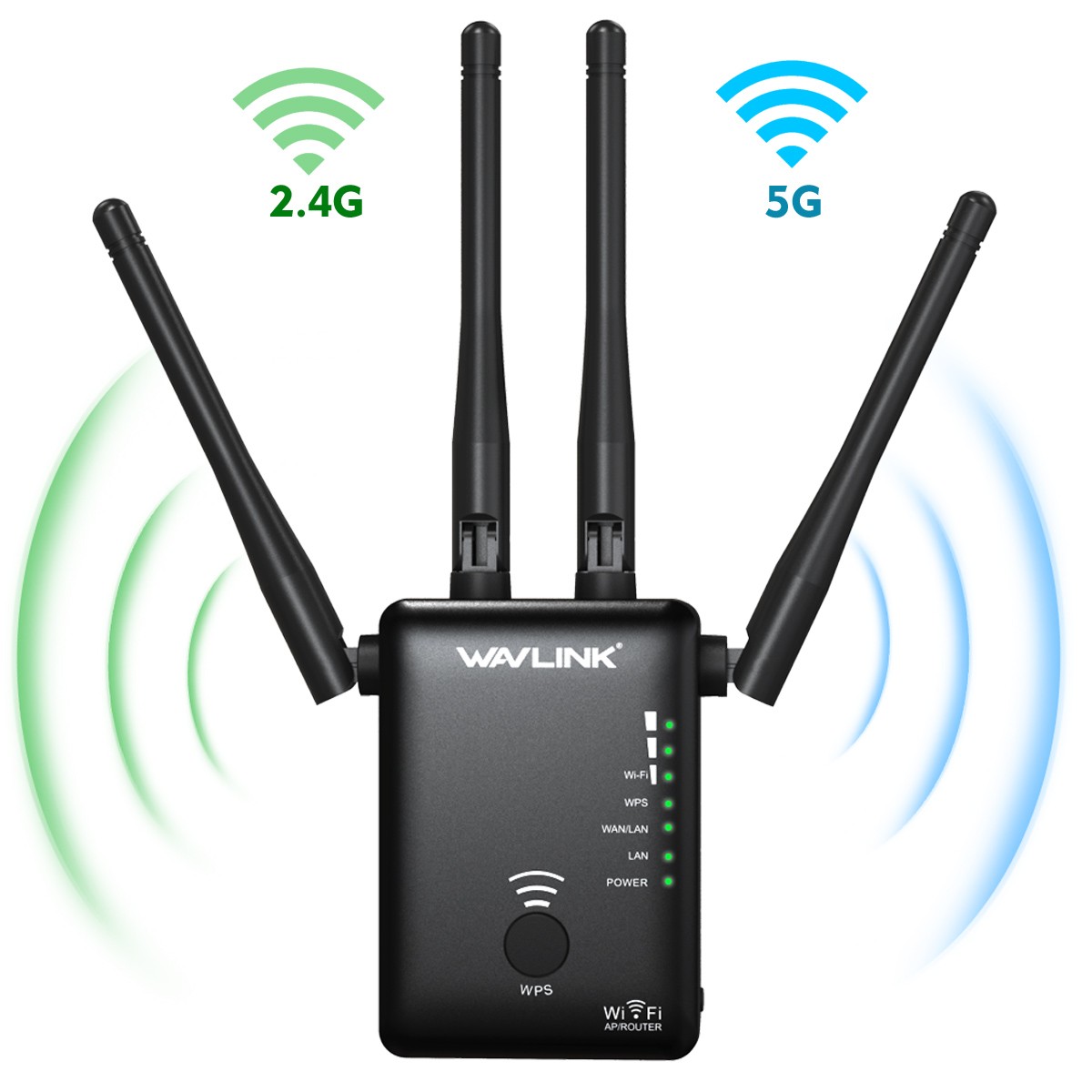

The Wavlink 575A3 expands your existing wireless network and eliminates dead spots with high performance antennas
and 802.11ac technology - the next generation Wi-Fi. Dual Band technology lets you simultaneously enjoy lag-free HD video streaming,
online gaming, emailing and web browsing with its speed up to N300 + AC867 without interruption.
It’s well suited for large homes with multiple devices and heavy online media usage.

Dual Band Connectivity
The AC1200 Repeater features simultaneous dual bands that deliver speeds up to N300 Mbps+ AC867 Mbps,
ideal for seamless HD streaming and gaming without interference.

Beamforming Technology
Beamforming Technology is known as the direct focus of wireless signals on your device. This ensures optimal network
performance, enabling multiple household members to enjoy simultaneous high-bandwidth activities like HD streaming and online gaming.

High-Performance External Antennas
Three external antennas boost your Wi-Fi coverage, helping your devices stay connected anywhere your network signal reaches.

Wireless Security
The Wavlink 575A3 supports up to 128-bit encryption - WEP, WPA, WPA2 and equipped with a WPS button,
allowing you to securely and easily establish a connection to prevent unauthorized access and to keep your network and your data safe.

Intelligent Signal Indicator
The Intelligent Signal Indicators indicate the strength of signal received from your wireless router,
helping you locate the ideal spot for optimal coverage.

Plug and Play
With no new wires or cables within range of their existing wireless network, you can easily extend wireless coverage at a
push of the WPS button on their router followed by the Range Extender button on the WN575A3 or vice versa.
An additional push of the pair button can quickly establish an encryption with client devices.

3 Working Modes
WiFi Range Extender-Extend WiFi coverage of an existing wireless network
Wireless Access Point-Covert a wired network to a wireless network
Wireless Router-Create an instant private wireless network and share Internet to multiple WiFi device, which is suitable for most hotel and Temperature: 0°C~40°C
2.Storage Temperature: -10~70°C
3.Voltage: 110~240V
4.Power Plug: US
5.Frequency Band: 2.4GHz and 5GHz
6.Standard: 802.11ac, 802.11a/b/g/n
7.Distance:Outdoors 300m, Indoor 100m(Change with the Actual Environment)

System Requirement:
-100 - 240 volt socket
-The WLAN client must support at least the WPA encryption standard.
-WLAN access point and the WLAN client with automatic IP address assignment (DHCP).
-Forwarding of IPv4-based protocol/Address Resolution Protocol
-The network name (SSID) of the WLAN access point must be set to in the package:
1 x AC1200 Wireless Router
1 x RJ-45 Networking Cable
1 x Quick Installation Guide

Note:
-The passwords of your repeater are as same as your router’s.
-More than 70% signal is recommended for the most reliable connection.
-Poor signal connection may cause slow speeds or dropped connection.
-If do not see desired wireless network, you can move the range extender closer to the router and scan again as it may be out of range.
-The Extender mode of this device can be set up by wireless device such as smart phone or laptop.

AX3000 WiFi 6/up to 2000sq.ft., 256 Devices

Upgrade Your Home Network to Real WiFi6 with the Cutting-Edge WAVLINK AX3000 Wi-Fi 6 Repeater/AP/Router
Elevate to the WAVLINK AX3000 WiFi 6 Repeater/AP/Router for lightning-fast speeds of up to 3000Mbps!
Unlike ordinary WiFi 6 devices, the WN583AX3 offers 160MHz bandwidth for unparalleled networking speed.
Whether you're working from home, streaming your favorite content, or engaging in intense gaming sessions,
this innovative WiFi6 booster provides exceptional coverage and stability, making dead zones a thing of the past.
Experience the next level of network reliability with WN583AX3—your gateway to a faster, more efficient online experience.

BSS Coloring
With BSS Coloring technology, the WiFi extender effectively minimizes interference from neighboring networks,
ensuring a stable connection even in crowded network environments.

WiFi 6 OFDMA
OFDMA technology helps improve WiFi efficiency by allowing multiple devices to communicate with the router simultaneously,
enhancing overall network performance for smoother connectivity.

4x5dBi Adjustable Antennas
The 4x5dBi high-gain antennas are designed to rotate both horizontally and vertically, which helps to adapt
to different placement positions for the best signal enhancement.

Gigabit WAN/LAN Port
The 1000Mbps Ethernet port is ideal for connecting desktop computers, gaming consoles, smart TVs, streaming devices,
and upper routers or modems, ensuring stable wired connections with enhanced speeds and network stability.

Intelligent FEM Chips
With the incorporation of 4 FEM chips, this WiFi 6 extender exhibits remarkable power and efficiency enhancements,
allowing it to manage demanding transmission tasks like online gaming streams and 4K live feeds while maintaining stability.

Easily Accessible Web Interface
Configure your AX3000 WiFi6 repeater via web interfaces on the phone or computer, which offers user-friendly management
options and convenient monitoring capabilities, enhancing control and customization of network settings for optimized performance.

Advanced Security with WPA3
Benefiting from the latest WPA3 encryption, the WN583AX3 ensures strong security for important data or
private information transmitted over WiFi. Enjoy a super-fast WiFi connection without worrying about information leakage.

LED Indicator Description
Solid Purple: The device is being activated.
Fast Blinking Red: The device is not connected to the higher-level router.
Slow Blinking Red: The device doesn't have access to the Internet.
Fast Blinking Blue: Pairing with the WPS of a higher-level router.
Slow Blinking Blue: The phone is pairing with WPS./Press the pair button for Mesh pairing.
Solid Blue: The Internet is connected and stable./AP Mode.

WPS/Mesh Pair button:
AP Mode: Press and hold WPS for 2 seconds to connect to downstream devices.
Repeater Mode: Press and hold the WPS button for 2 seconds to connect to the downstream devices and for 8 seconds to connect to the upstream router.
Mesh Extender/Mesh Router Mode: Press and hold the Mesh Pair button for 2 seconds to pair.

Reset Button:
Press and hold the button for 6 seconds to reset to product's factory settings.

Specification
- Model: WL-WN583AX3
- Ports: 1 x WAN/LAN(10/100/1000Mbps)
- Buttons: 1 x Power On/Off; 1 x Reset; 1 x WPS
- Status LED: 1 x WPS(Purple/Red/Blue); 1 x WAN/LAN(Blue)
- Wireless Standard: IEEE 802.11a/b/g/n/ac/ax
- Frequency Band/Speed: 2.4GHz(573Mbps)+5GHz(2402Mbps)
- Antenna: 4 x 5dBi Omni Directional Antennas(Length: 15.4cm/6.1in)
- Wireless Security: WPA3/WPA2-PSK MIX, WPA2-PSK, WPA2/WPA1-PSK MIX
- Unit Size(without antennas): 16.0x7.5x4.2cm/6.3x3.0x1.7in ( L x W x H )
- Ethernet Cable Length: 100cm/39.4in
- Weight: 298g/10.5oz
- Everything Mesh supported Models: WN533AX6/LUX DX15, WN531AX3/LUX DX7, WN586X3/MIGHTY EXI,
WN587X3/MIGHTY EX2, WN583AX3/AERIAL D6X, WN573HX3/AERIAL HD9(Does not support networking with other brands of mesh devices.)

In the Box
- 1 x Wi-Fi 6 Repeater/AP/Router
- 1 x RJ-45 Ethernet Cable
- 1 x Quick Start Guide
