Hardware Specification:
Chipset : MT7981B+MT7976CN+7531AE)
Standard : 802.11ax/ac/b/g/n
Flash : SPI NOR 8MB (1.8v) + NAND 128MB
DDR3L : 512MB
2.4G Frequency: 2.4GHz - 2.484GHz
2.4G Wi-Fi standard : 802.11b/g/n/ax
5.8G Frequency : 4.9~5.9G
5.8G Wi-Fi Standard : 802.11 a/n/ac/ax
Interface : 1 * 10/100/1000/1000Mbps RJ45 WAN port and PoE port, 1*10/100/1000Mbps LAN port, 1 * reset button, which presses 10 seconds to revert to default setting.
Antenna : Build in 4*5dBi dual band MIMO Antenna
Data Rate : 3000Mbps （2.4G 600Mbps, 5.8G 2400Mbps）
End Users : 258+
2.4G RF Power ≤ 23dBm, 5.8G RF Power≤ 23dBm
DC : 12V----2A, PoE : 48V (IEEE 802.3at)
LED light : Sys, WAN, LAN
Power Consumption : ≤ 20W
Firmware Specification:
Working Mode : Gateway, AP
Protocols : IPv4
Wireless Security: Open, WPA, WPA2PSK_TKIPAES, WAP2_EAP, WPA3
Wireless Functions: Support SSID hidden; Support seamless roaming, 802.11kvr standard; Support 5G Prior for a faster Ethernet; Support MAC filter; Support Wi-Fi time on/off to save energy; Support client isolation to improve the wireless stability; Support RF power adjustable, adjust the RF power based on environment; Support user quantity limited, Max 64 users to access each band.
Networking Function : VLAN settings and cloud access support in gateway mode
Device Management : Support firmware GUI web management, AC controller management, remote management and cloud management
AX3000 WIFI 6 ACCESS POINT: Built on the 802.11ax standard, this wireless access point delivers a combined wireless rate of up to 3000Mbps—2402Mbps on 5GHz and 574Mbps on 2.4GHz. This WiFi access point supports video meetings, streaming, cloud applications and everyday business traffic, making it a capable choice among computer networking wireless access points. Actual speeds vary by internet service, layout, interference and connected devices.
BUILT FOR 200+ CONNECTED DEVICES: Designed as a network wireless access point for busy shared environments, the AX835 uses 2x2 MU-MIMO and OFDMA to communicate with multiple compatible clients more efficiently, reducing congestion, latency and airtime competition. Its 512MB RAM supports 200+ connected devices; actual capacity depends on device activity, traffic, interference and network conditions.
SEAMLESS ROAMING BETWEEN WIRELESS ACCESS POINTS: Support for 802.11k/v/r helps compatible phones, tablets and laptops move between properly configured access points with fewer interruptions. Deploy multiple wireless access points across rooms or floors to provide more consistent connections for calls, video meetings and mobile work.
LOCAL, AC AND CLOUD MANAGEMENT: Configure one wireless AP through its local web interface, or manage multiple WiFi AP units through an AC controller, remote platform or cloud system. This WAP supports adjustable RF power, scheduled WiFi on/off settings and centralized management to help administrators adapt coverage and operating times to each location.
WAP WIRELESS ACCESS POINT CONTROLS: Client isolation, MAC filtering and hidden SSID settings help control how devices join and interact on shared networks. 5GHz priority can guide compatible dual-band devices toward the faster band when signal conditions allow, providing additional control for offices, hotels, schools, restaurants and other multi-user environments.
POE ACCESS POINT WITH THREE POWER OPTIONS: This PoE wireless access point supports an 802.3at PoE+ switch, a compatible 48V passive PoE source or the supplied 12V/2A DC adapter. Its access point PoE design carries network data and power through one Ethernet cable. The WiFi access point PoE setup simplifies ceiling WiFi PoE installation, while the same PoE WiFi access point can use DC power when PoE is unavailable.

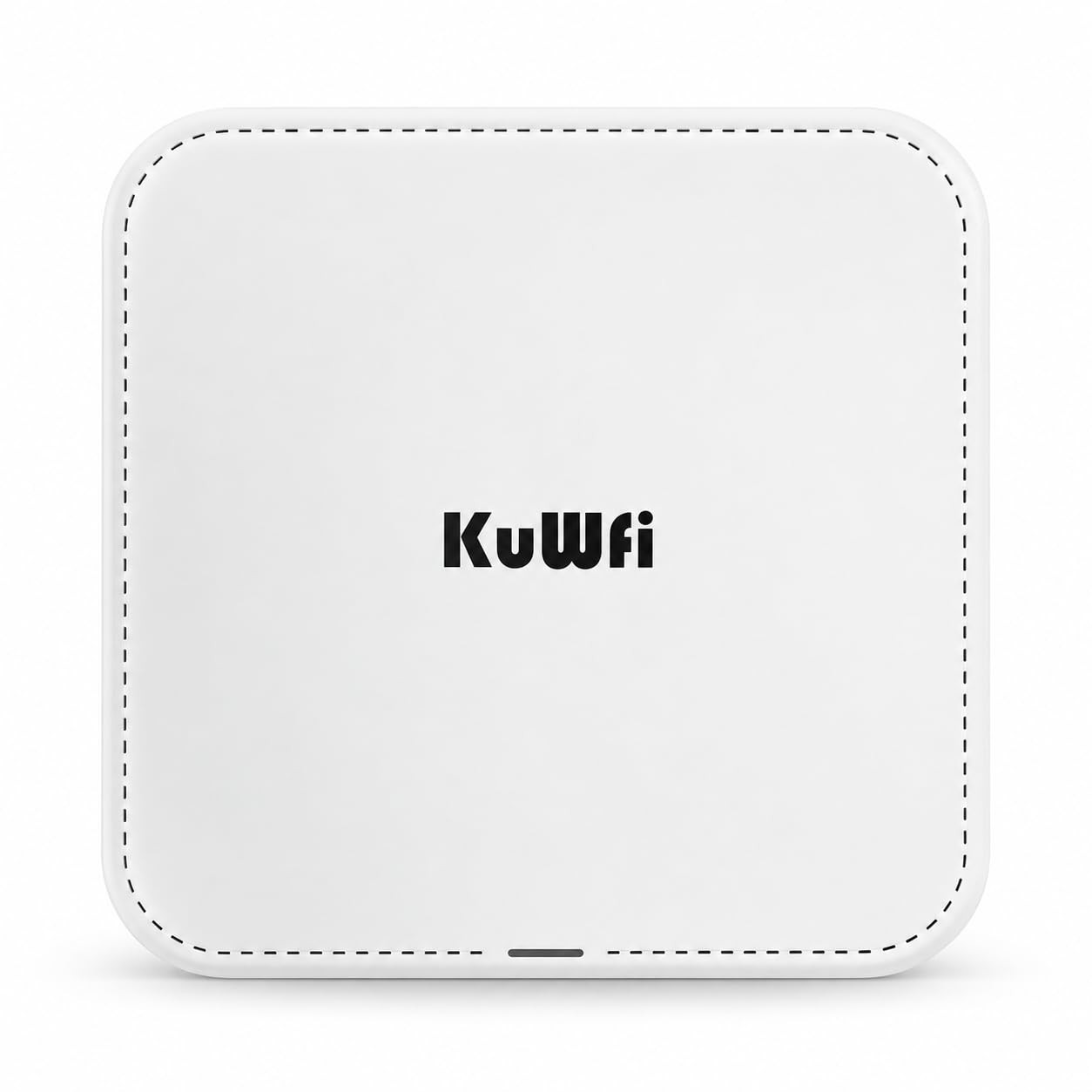

CEILING MOUNT ACCESS POINT FOR INDOOR USE: The compact AX835 is a ceiling mounted wireless access point that can also be installed on a wall. Designed as a wireless ceiling mounted AP, its low-profile ceiling mounted WiFi access point enclosure blends into indoor spaces. The ABS housing, surface heat-dissipation treatment, lightning protection and ESD protection support reliable everyday operation.
FOR BUSINESS, LARGE INDOOR SPACES AND HOMES: Use the AX835 as a wired access point connected to an existing router or network switch in offices, hotels, schools, dormitories, restaurants, healthcare facilities and larger homes. It can serve as a WiFi access point for home or an internet access point within an existing wired network. When Router Mode is enabled, it can also function as a ceiling router or ceiling WiFi router, but it does not provide internet service by itself. The package includes one AX835, a 12V/2A adapter, Ethernet LAN cable, quick-start guide and mounting accessories.
