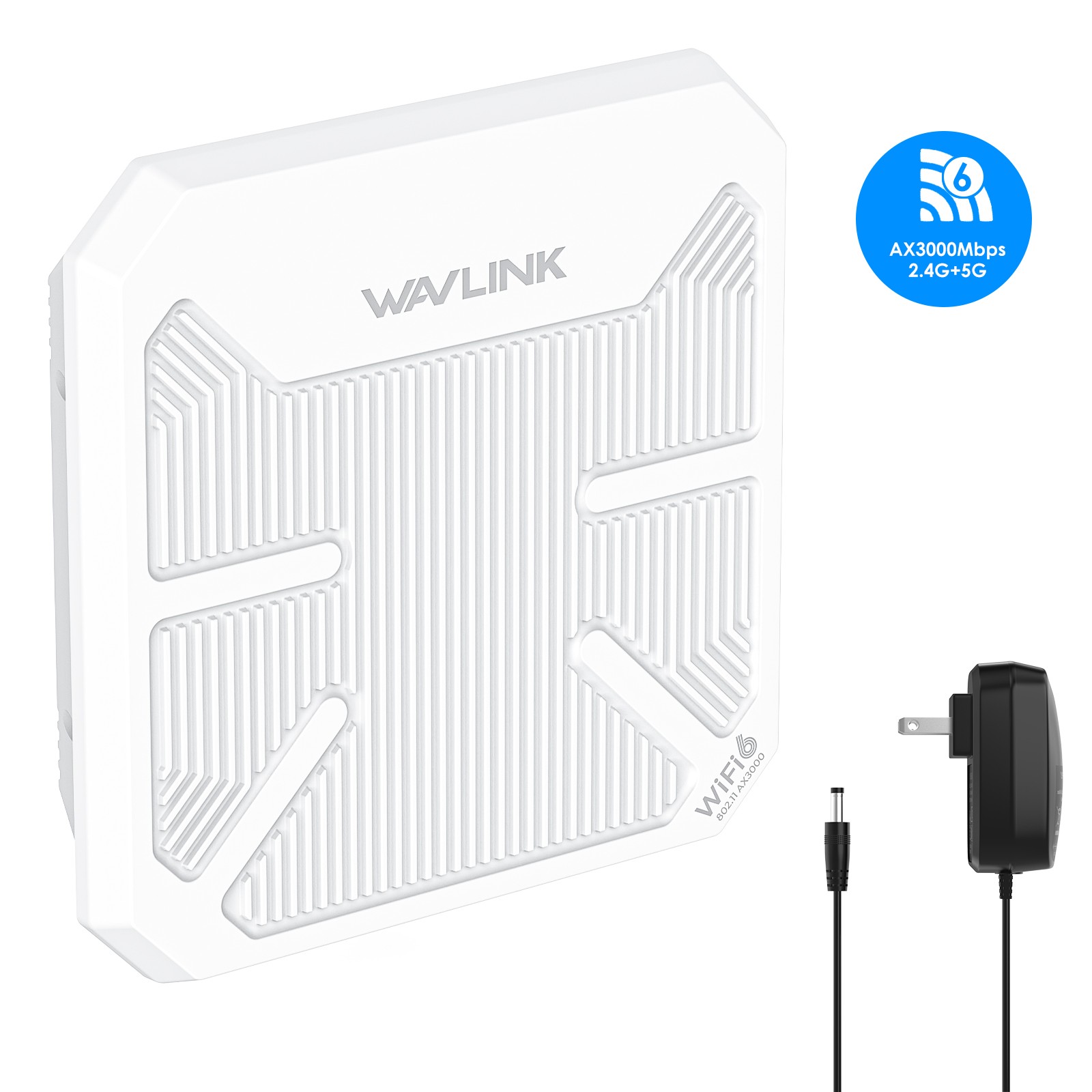

AX3000 WiFi 6/2.4G+5G/4x 12dBi Antennas(Built-in) Designed for Harsh Outdoor Conditions - IP67-rated waterproof housing that ensures continued
operation on harsh outdoor environments or in climates of extreme cold, heat or continuous moisture.
Lightning protection and weatheproof design ensure stable connection in harsh outdoor conditions.
Note: The PoE part of the router is not waterproof.
Enjoy True WiFi 6 Speed - The next generation of WiFi, complies with IEEE 802.11 ac/a/b/g/n standards.
Supports dual-band maximum speed up to 5GHz 2402Mbps and 2.4GHz 573Mbps, avoiding wireless
interference & congestion and offering lightning-fast Internet speed. With WAVLINK WN573HP3,
you can enjoy HD videos, smooth gaming, etc. even outdoors.
Optional PoE Power Supply - Supports 802.3AF/AT active PoE and passive PoE, transferring data
and charging the product with a single Ethernet cable, so you can install the product outdoors where
power outlet is not available. Note: The PoE converter is not waterproof. Please use CAT5E or
above cable and the length should not exceed 100m/328ft.
Seamless WiFi Roaming - The built-in 4x12dBi directional antennas and high-power amplifiers provide
extreme WiFi coverage and penetration. Also supports Everything Mesh technology, one-click brings more
device connections, greatly expanding the WiFi coverage, and eliminating every network dead zone.
Multiple Modes, Flexible Use - Supports Mesh, AP, Router, Repeater, AP+Repeater and other modes to
meet your different needs and apply to more outdoor connection scenarios. Router/AP mode is ideal for
converting wired connections into wireless networks, while under Mesh mode you can enjoy seamless
WiFi with a single network name and password.
3Km Wireless Data Transmission - Specially designed for outdoor uses, ideal for long distance
wireless data transmission over 3km/1.9miles(only for paired PtP or PtMP transmission),
tested in the barrier-free field. Built-in 12dBi directional antennas can significantly improve the
transmission and reception performance of wireless signal.
Specification
- Model: WL-WN573HP3
- Product Size: 24x24x7cm/9.4x9.4x2.8in
- PoE Converter Size: 4.4x3.7x2.2cm/1.7x1.5x0.9in
- Length: Ethernet Cable - 100cm/39.4in; Power Adapter Cable - 130cm/51.2in
- Product Weight: 1050g/37oz
- Standard: IEEE 802.11 ax/ac/a/n/g/b
- Frequency Band/Speed: 2.4GHz(573Mbps)+5GHz(2402Mbps)
- Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
- Antennas: 4 x 12dBi Directional Antennas
- PAIR/RESET LED: Blue
- PoE Converter Status LED: Green
In the Box
- 1 × AX3000 WiFi 6 Outdoor Access Point
- 1 × 54V Power Adapter
- 4 × Cable Ties
- 1 × PoE Converter
- 2 × Silicone Pads
- 1 × Ethernet Cable
- 1 × Main Body Holder
- 1 × PWM M4×8×8MM Screw
- 1 × Wrench
- 6 × KA M4×25×6MM Screws
- 1 × Quick Start Guide
- 6 × Φ8x25MM Screw Plugs
Warm Tips
①The PoE converter is not waterproof, please install it indoors.
②Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
③Please install the product 2-3 meters above the ground for better performance.
④Under the mesh mode, WN573HP3 supports interconnection with WN586X3, WN583AX3 and WN573HX3.
⑤The real performance of the product may vary in accordance with different environmental conditions.
N300/2.4G/2x 11dBi Antennas(Built-in)
Product Overview
The HighPower Wi-Fi AP/Repeater is ideal for long distance point-to-point/multi-point wireless data transmission,
providing a free Wi-Fi service in remote such as factory, community, street or etc. The AP/Repeater can take an
existing 2.4GHz wireless signal, repeat and extend it to a longer range where it is far away for the router or
access point to reach, and it supports 2.4G transmission speeds of up to 300Mbps. It has one directional flat
antenna (2 x built-in 11dBi high gain antennas) providing even better wireless performance, transmission rates,
stability technology automatically avoids channel conflicts using its channel selection feature.
Wish you'd have an enjoyable use experience with our product!
Flexible PoE Deployment: Support 24V PoE power supply, easy installation and deployment.
Make sure the Ethernet cable connected to this repeater be less than 80 meters,
and the ethernet cable connected to the uplink devices be less than 100 meters.
Multiple LED Indicators: 6 status LED indicatorshelp you see the power/ internet status of device.
Since the green lights might be not so obvious in the open air, you can try to cover the device with your hand to check.
Wide Range Transmission: 1.5km wireless data transmission range for point to point/multi-point use
(the result is from testing two products use together---one as sender and one as receiver), suitable for surveillance networks.
Product Dimension: Panel (L * W * T): length 19.5cm/7.68in, width 12cm/4.72in, thickness 3cm/1.18in;
Router: diameter 4.5cm/1.77in, height 17cm/6.69in. Note: Data by manual measurement for reference ONLY.
Up to 64 Devices: Share WiFi network with up to 64 devices and enjoy 300Mbps network speed.
(200 meters wireless data transmission range specifically determined by the environment and the antenna gain and power of the client.)
Features
- Easy installation, flexible placement
- Supports Router, AP, Repeater modes
- High transmission power for 1500 meters extreme Wi-Fi coverage
- Features 2 x RP-SMA connectors for external antennas
- Robust weatherproof enclosure design,15KV ESD and 4KV Lightning Protection
- Supports passive PoE power supply(through network cable)up to 80 meters
- Complies with IEEE 802.11b/g/n standards, wireless speed up to 300 Mbps
- Supports 128 bit WPA/WPA2(TKIP/AES)
- Features 6 x status LED indicators
What You Get:
1x Outdoor Wi-Fi range extender;
1x Directional antenna panel;
1x Main body holder;
1x PoE converter;
1x RJ-45 network cable;
1x Screw/Bracket fitting kit;
1x Power adapter;
2x Cable ties;
1x Quick start guide;
1xInstallation instruction.
Please Note:
* The real performance of the product may vary in accordance with different environmental conditions.
* If your device is damaged or defective, please contact our customer service for more details.
* All pictures shown on the package are for illustration purpose only.
* The PoE part of the router is not waterproof.
