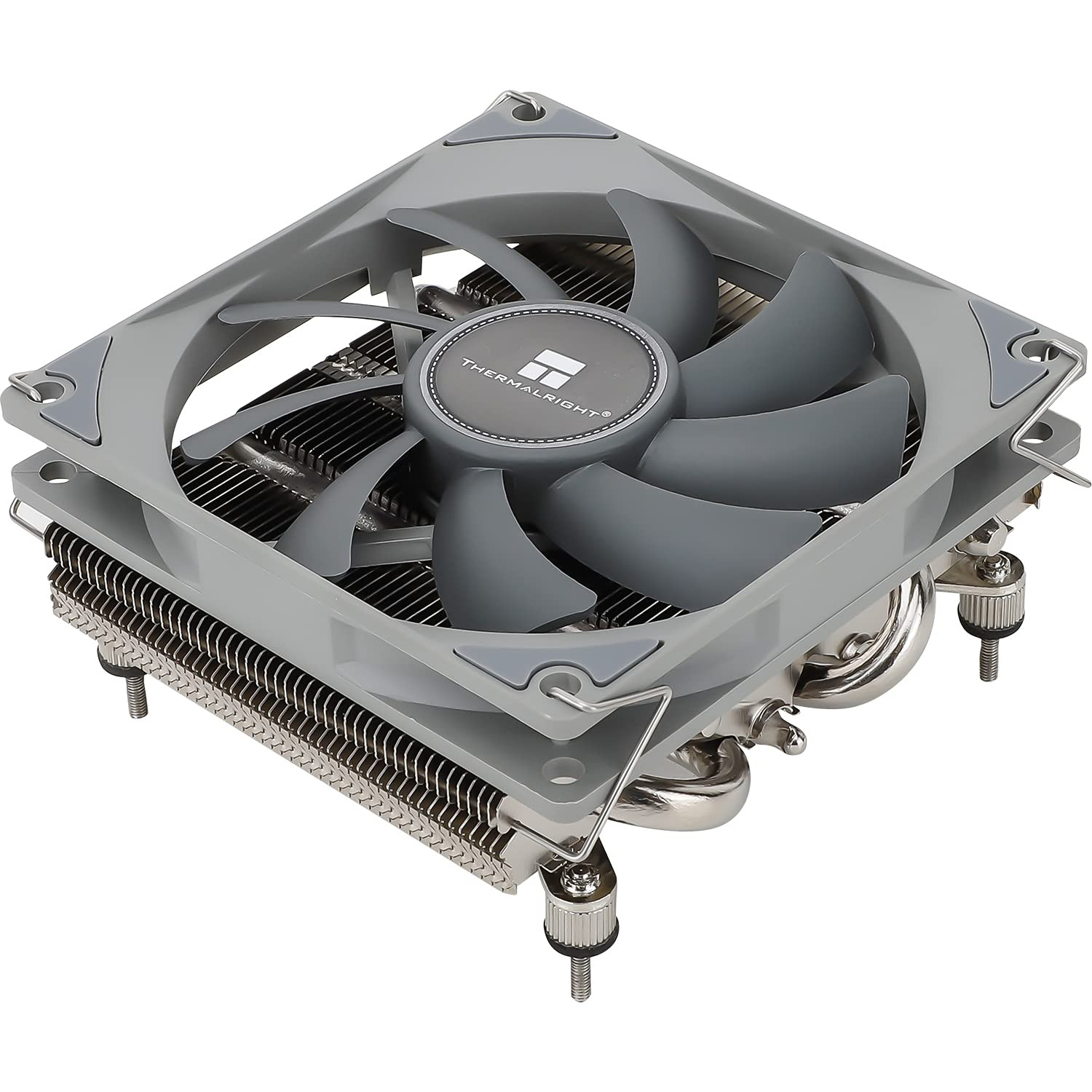

Product description 36mm low profile height
Fits in most small form factor case, even in OEM machines and smaller HTPCs, while TL-9015 slim fan is capable of generating airflow to cool heatsink and motherboard components
100% RAM and PCIe compatibility
Optimized heatsink design for compatibility for ITX motherboard, even the PCIe and RAM slots are close to CPU socket, AXP90-X low profile cooler is still compatible with high memory modules or thick PCIe cards
Dual Soldered Process
Both Nickle plated copper base and four high performance heat pipes are soldered with fins for maximum heat transfer and withstand usage over long period of time
Add to Cart Add to Cart Add to Cart Customer Reviews 4.3 out of 5 stars 20 4.1 out of 5 stars 31 4.1 out of 5 stars 88 4.4 out of 5 stars 101 4.5 out of 5 stars 400 Price — no data — no data $20.90$20.90 $8.59$8.59 $10.59$10.59 Heatpipes 5×6mm 5×8mm 4×6mm no data Fan Speed RPM1800±10% 1800RPM/1850±10% RPM2700±10% 1800RPM±10% no data AirFlow 95.5CFM（MAX） 95.5/82CFM（MAX） 42.58CFM（MAX） 59CFM（MAX） no data Wattage 245W 275W 135W no data no data Noise Level 30.2DB(A)(MAX) 30.2DB(A)(MAX) 22.4DB(A)(MAX) 26.1DBA no data Compatible Socket "CPU socket AMD：AM4" "CPU socket AMD：AM4" "CPU socket AMD：AM4" no data no data Dimensions 145x45x158mm 140×146×158mm 94.5×95×53mm 120×120×15mm 90×46×16mm Fan-quantity 1 2 1 1 no data Connector 4-Pin PWM 4-Pin PWM 4-Pin PWM 4-Pin PWM 4-Pin PWM
- Compact, premium-quality low-profile CPU cooler (36mm total height)
- Good adaptability, all metal platform, with back plate fastener, secondary reflow soldering process
- Nickel plating process, corrosion resistance, acid and alkali resistance, low thermal resistance
- 4×6mm AGHP Heatpipes, Noise≤22.4DBA, Voltage 12V, Current 0.2A (MAX)
- Support for Intel: 115X/1200; AMD: AM4/AM5
