VPP755 Eispump Technical Specifications
Dimensions (DxH): 60 x 53.5mm
Cable length: 50cm
Standard voltage: 12V DC
Power consumption: 14W
Permitted voltage: 8-13V DC
Pressure at 12V: 4m water head
Maximum flow rate: 350l/h
Pump medium: water, water/glycol mixture
Maximum system temperature: 65ºC
Power connection: 4-pin molex
Tach signal: 3-pin
PWM signal: 4-pin
Special feature: adjustable in five levels
Level 1: 1800 RPM
Level 2: 2500 RPM
Level 3: 3200 RPM
Level 4: 3900 RPM
Level 5: 4500 RPM
Eisdecke Technical Specifications
Dimensions: 80 x 80 x 40mm
Dimensions with stands: 83 x 80 x 87mm
Material: plexi
Connections: 5x 1/4" threads
Scope of Delivery

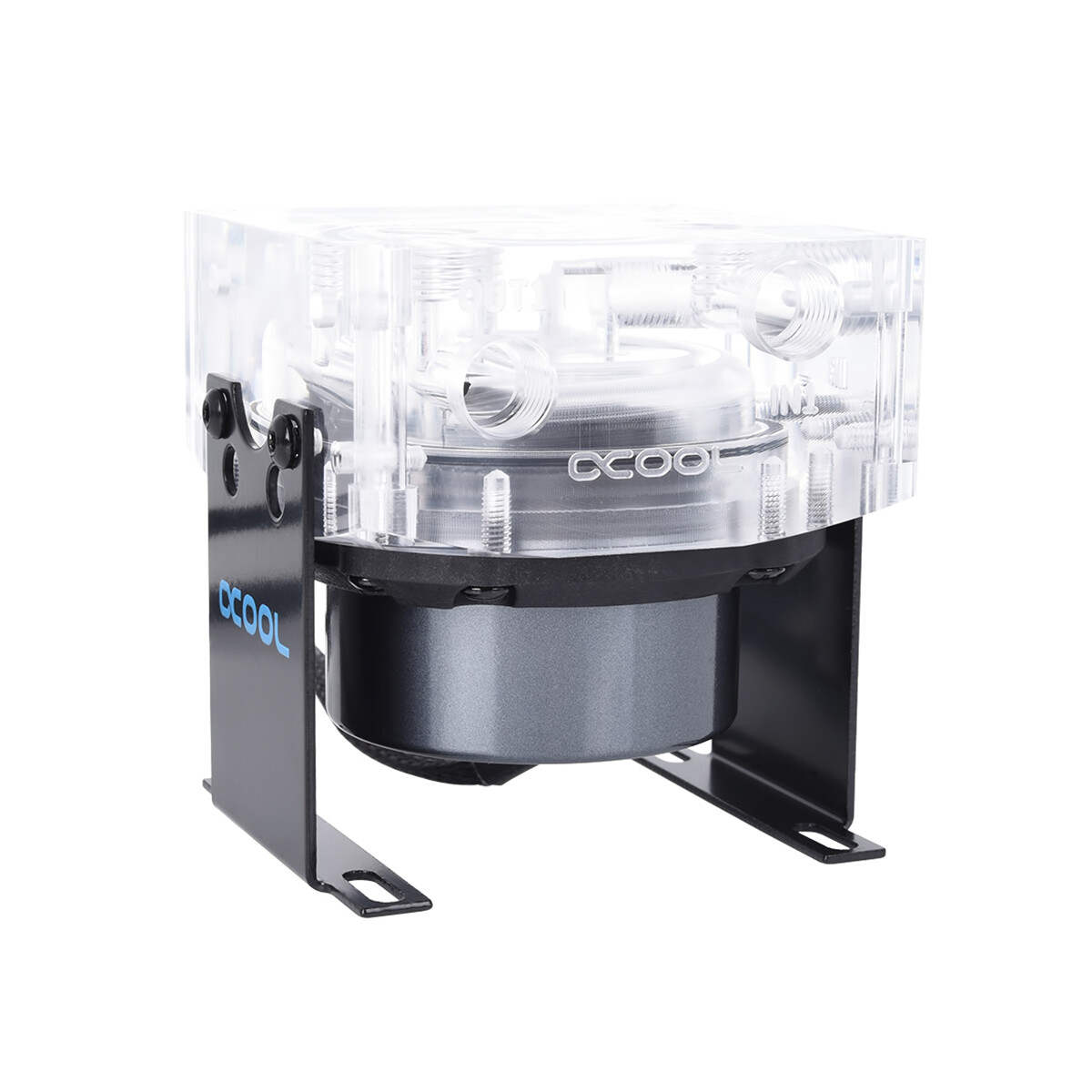

1x Alphacool Eispump VPP755 - G1/4 IT incl. Eisdecke D5 - Plexi V.3
CAuTION
Removing the impeller from the ceramic shaft will cause the upper ceramic clamping ring to over-expand, which will destroy it! Removal will void the pump’s warranty!
If the pump is put together again and put back into operation, the clamping ring will loosen, which is not accepted as grounds for a return or exchange...
Notice:
Attention: Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel fluids can clog and permanently damage water cooling products such as radiators, pumps, This can result in voiding the manufacturer's warranty as well.
use is therefore at one’s own risk.
