Zombie Components LLC Sylmar, California BCM Advanced Research SQ593 Motherboard with CPU and RAM SQ593 Pentium board ·Intel PCIset · 3 PCI slots · CPU and RAM installed

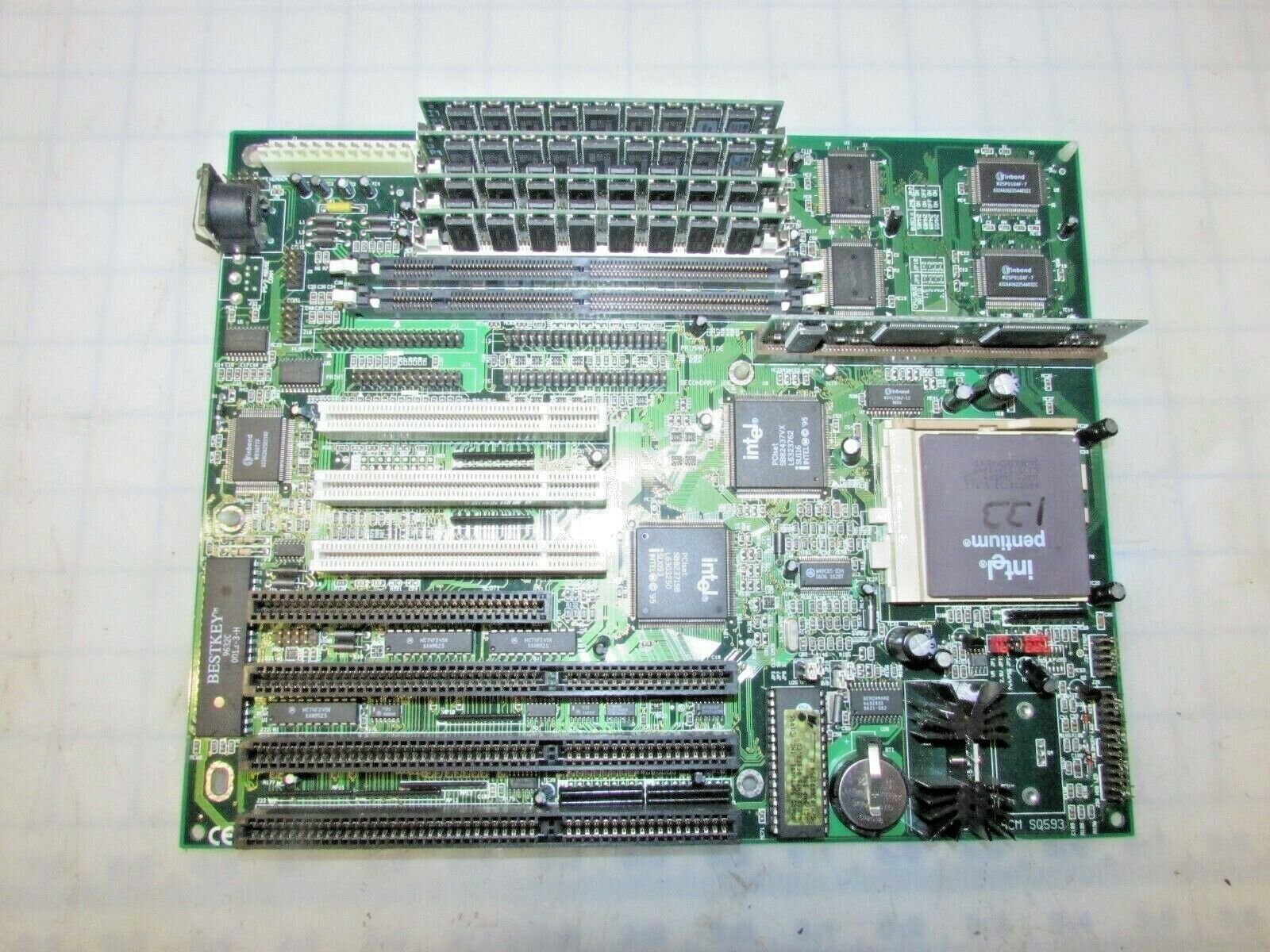

BCM Advanced Research SQ593 motherboard, sold with the CPU and RAM installed as shown. The board is silkscreened BCM SQ593 and carries an Intel PCIset chipset (SB82437VX and SB82371SB).
The installed processor is an Intel Pentium with a handwritten "133" on it. Four 72-pin SIMMs are fitted; the two DIMM sockets are empty. The board has three PCI slots and four ISA slots.
The configuration tables below (connections, jumpers, memory, cache, CPU speed and voltage) are carried from the original listing.
Condition
Used: 60 day returns.
Specifications ParameterValueMPNSQ593BrandBCM Advanced Research, Inc.ProcessorCX M1/PentiumProcessor installedIntel Pentium, marked "133" by handRAM installed4 x 72-pin SIMMChip setIntel (PCIset SB82437VX, SB82371SB)Video chip setNoneMaximum onboard memory256MB (EDO supported)Maximum video x 218mmExpansion slots3 x 32-bit PCI, 4 x ISAI/O options32-bit PCI slots (3), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, PS/2 mouse interface, serial ports (2), cache slot, IR connectors (2), USB connectors (2)NPU optionsNone Board configuration port 1CN1SpeakerJ1 pins 10 - 13Serial port 2CN2IDE interface LEDJ1 pins 14 - 17Parallel portCN3Green PC LEDJ1 pins 19 & 20Floppy drive interfaceCN4Power LED & keylockJ1 pins 22 - 26IDE interface 2CN5Fast IR connectorJ24IDE interface 1CN6IR connectorJ25PS/2 mouse portCN7USB connector 2J34PS/2 mouse interfaceCN8USB connector 1J35Reset switchJ1 pins 1 & 232-bit PCI slotsPC1 - PC3Turbo LEDJ1 pins 4 & 5Cache slotSL1Green PC connectorJ1 pins 7 & 8 USER CONFIGURABLE SETTINGSFunctionLabelPosition»CMOS memory normal operationJP3OpenCMOS memory clearJP3Closed DIMM CONFIGURATIONSizeBank 0Bank 18MB(1) 1M x 64None16MB(1) 2M x 64None16MB(1) 1M x 64(1) 1M x 6424MB(1) 2M x 64(1) 1M x 6432MB(1) 4M x 64None32MB(1) 2M x 64(1) 2M x 6440MB(1) 4M x 64(1) 1M x 6448MB(1) 4M x 64(1) 2M x 6464MB(1) 4M x 64(1) 4M x 64 DRAM CONFIGURATIONSizeBank 0Bank 18MB(2) 1M x 36None16MB(2) 2M x 36None16MB(2) 1M x 36(2) 1M x 3624MB(2) 2M x 36(2) 1M x 3632MB(2) 4M x 36None32MB(2) 2M x 36(2) 2M x 3640MB(2) 4M x 36(2) 1M x 3648MB(2) 4M x 36(2) 2M x 3664MB(2) 8M x 36None64MB(2) 4M x 36(2) 4M x 36 DRAM CONFIGURATION (CON’T)SizeBank 0Bank 172MB(2) 8M x 36(2) 1M x 3680MB(2) 8M x 36(2) 2M x 3696MB(2) 8M x 36(2) 4M x 36128MB(2) 8M x 36(2) 8M x 36256MB(2) 16M x 36(2) 16M x 36Note: Board accepts EDO memory. Board also accepts x 32 SIMMs. CACHE CONFIGURATIONSizeBank 0SL1256KB(2) 32K x 32Not installed512KB(2) 32K x 32256KB module installed CPU SPEED SELECTION (INTEL)CPU speedClock & 21 & 290MHz60MHz1.5xOpenClosed1 & 21 & 2100MHz66MHz1.5xClosedOpen1 & 21 & 2120MHz60MHz2xOpenClosed2 & 31 & 2133MHz66MHz2xClosedOpen2 & 31 & 2150MHz60MHz2.5xOpenClosed2 & 32 & 3166MHz66MHz2.5xClosedOpen2 & 32 & 3180MHz60MHz3xOpenClosed1 & 22 & 3200MHz66MHz3xClosedOpen1 & 22 & 3Note: Pins designated should be in the closed position. CPU VOLTAGE SELECTION - 3.6vClosed1 & 2, 3 & 4, 5 & 6, 7 & 8Open3.4v - 3.6vOpen1 & 2, 3 & 4, 5 & 6, 7 & 8OpenNote: Pins designated should be in the closed position. Included
One BCM SQ593 motherboard with the CPU and four SIMMs installed, as shown in the photo.
Not included:
I/O backplate
Cables
Drivers or manuals
