VISIT OUR storeBlackmagic Design UltraStudio 4K Extreme 3Condition: Brand New in Original PackagingSKU: BLUS4KE3Features

• Advanced solution for PCIe and Thunderbolt computers
• Incredibly fast 40Gb/s Thunderbolt 3 connection
• Advanced 12G‑SDI and HDMI 2.0 connections
• Working at up to 60 fps with deep color and 12‑bit RGB
• Support for HDR workflows via HDMI 2.0a
• Supports extremely large 4K frame sizes
• Widest range of analog and digital connections
• Works with virtually any camera, deck, router or display
• Powerful hardware encoder built-in

Product Description

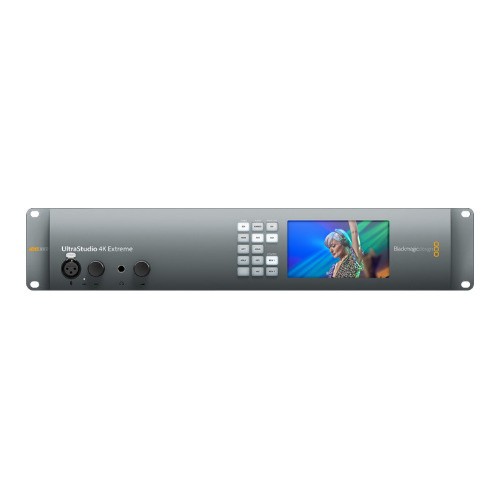

Blackmagic Design UltraStudio 4K Extreme 3 is one of the world’s most advanced capture and playback solution for PCI Express and Thunderbolt computers! It features incredibly fast 40Gb/s Thunderbolt 3, advanced 12G‑SDI and HDMI 2.0 connections for working at up to 60 frames per second with deep color, 12‑bit RGB, support for HDR workflows via HDMI 2.0a and extremely large 4K frame sizes. Featuring the widest range of analog and digital connections, UltraStudio 4K Extreme 3 is compatible with virtually any camera, deck, router or display. There’s even an extremely powerful hardware encoder built-in that supports realtime H.265 encoding!

What's in the Box

• Blackmagic Design UltraStudio 4K Extreme 3
• SD Card with Software and Manual
• DaVinci Resolve SD Card
• 3-Year Limited Manufacturer's Design UltraStudio 4K Extreme 3
  Connections
  • SDI video inputs: 2 x 12Gb/s and 2 x 6Gb/s SD/HD/2K/4K. Supports single/dual/quad link 4:2:2/4:4:4. 2D/3D switchable
  • SDI video outputs: 2 x 12Gb/s and 2 x 6Gb/s SD/HD/2K/4K. Supports single/dual/quad link 4:2:2/4:4:4. 2D/3D switchable
  • SDI rates: 270Mb, 1.5G, 3G, 6G, 12G.
  • Optical SDI: Supports 2 optional SMPTE modules.
  • SDI video loop: 4 x reclocked SD/HD/2K/4K linked to corresponding inputs.
  • SDI video repeated outputs: 2 x 12Gb/s and 2 x 6Gb/s SD/HD/2K/4K. Supports single/dual/quad link 4:2:2/4:4:4. 2D/3D switchable
  • Analog video inputs: 1 x Component YUV on 3 BNCs, 1 x composite NTSC/PAL on 1 BNC.
  • Analog video outputs: 1 x Component YUV on 3 BNCs, 1 x composite NTSC/PAL on 1 BNC.
  • Analog Audio Inputs: 4 Channels of professional balanced analog audio via XLR connectors and 2 channels of consumer unbalanced via RCA connectors.
  • Analog audio outputs: 4 Channels of professional balanced analog audio via XLR connectors.
  • Optical fiber inputs/outputs (optional): 2 x 12Gb/s Optical Fiber.
  • AES/EBU audio inputs: 2 Channels unbalanced with sample rate converter on BNC connector.
  • AES/EBU audio outputs: 2 Channels unbalanced on BNC connector
  • SDI audio inputs: 16 Channels embedded in SD/HD/2K/4K
  • SDI audio outputs: 16 Channels embedded in SD/HD/2K/4K
  • HDMI video inputs: HDMI 2.0 type A connector with support for 2160p60
  • HDMI video outputs: HDMI 2.0 type A connector with support for 2160p60
  • HDMI audio inputs: 8 Channels embedded in SD/HD/4K.
  • HDMI audio outputs: 8 Channels embedded in SD/HD/4K.
  • Mic input: 1 x 48V microphone input via XLR connector. Phantom Power switchable via software control
  • Timecode input: 1 x XLR Input
  • Timecode output: 1 x XLR Output
  • Sync input: 1 x Reference input. Tri-Sync or Black Burst
  • Sync output: 1 x Reference Loop Output. Tri-Sync or Black Burst
  • Computer interface: Thunderbolt 3 (Mac OS and Windows), PCI Express 4 lane generation 2
  • Power: 2 x built-in international AC power supply with IEC C14 inlet. 120-240V, 50-60Hz
  Supported Codecs
  • AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4
  Software
  • Software included: DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
  • Internal software upgrade: Firmware built into software driver. Software driver loads upgrades at system start or via updater software
  SDI Video Standards
  • SD video standards: 525i59.94 NTSC, 625i50 PAL
  • HD video standards:
  • 720p50, 720p59.94, 720p60
  • 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
  • 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
  • 1080i50, 1080i59.94, 1080i60
  • 2K video standards: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
  • Ultra HD video standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
  • 4K video standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
  • 3D video standards:
  • 720p50, 720p59.94, 720p60
  • 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48
  • 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
  • 1080i50, 1080i59.94, 1080i60
  • 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48, 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI
  • 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48
  • 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI
  • SDI compliance: SMPTE 259M, SMPTE 274M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, SMPTE 435, SMPTE 2048-1, SMPTE 2081-10, SMPTE 2081-11, SMPTE 2082-10, SMPTE ST2108‑1, ITU-R BT.656 and ITU-R BT.601
  • SDI metadata support: RP 188/SMPTE 12M-2 and closed captioning.
  • SDI audio sampling: Television standard sample rate of 48 kHz and 24-bit.
  • SDI video sampling: 4:4:4, 4:2:2
  • SDI color space: REC 601, REC 709, REC 2020.
  • HDR support: HDR metadata packing, HLG and PQ transfer characteristics.
  • SDI configuration: SDI output is configurable for Quad Link 3Gb/s via Blackmagic Desktop Video Utility. When using single link 12Gb/s on SDI A or dual link 6Gb/s on SDI A and B, SDI C and D will output downconverted HD
  HDMI Video Standards
  • SD video standards: 525i59.94 NTSC, 625i50 PAL
  • HD video standards:
  • 720p50, 720p59.94, 720p60
  • 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
  • 1080i50, 1080i59.94, 1080i60
  • Ultra HD video standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
  • 4K video standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
  • 3D video standards:
  • 720p50, 720p59.94, 720p60
  • 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30,
  • 1080i50, 1080i59.94, 1080i60
  • HDMI audio sampling: Television standard sample rate of 48 kHz and 24-bit
  • HDMI video sampling: 4:4:4, 4:2:2, 4:2:0
  • HDMI color space: REC 601, REC 709, REC 2020
  • HDR support: HDR static metadata packing, HLG and PQ transfer characteristics.
  • HDMI configuration: HDMI 2.0b supports Deep Color and HDR. Automatically configures to connected display.
  • Multiple rate support: HDMI and SDI video connections are switchable between SD/HD/UHD and 4K. Component analog video connections are switchable between SD and HD.
  • Copy protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
  Hardware Frame Buffer
  • ARGB, BGRA (8-bit RGB 4:4:4:4), r210 (10-bit RGB 4:4:4), R12B and R12L (12-bit RGB 4:4:4) up to 2160p30
  • 2vuy (8-bit YUV 4:2:2) and v210 (10-bit YUV 4:2:2) in all modes
  Color Precision
  • 8, 10, 12-bit RGB 4:4:4 up to 2160p30 and 8, 10-bit YUV 4:2:2 in all standards.
  Computer Capture
  • 2 x Thunderbolt 3 for Mac and Windows plus PCI Express Gen 2 for Mac, Windows and Linux. Includes Blackmagic Desktop Video SDK.
  Control
  • Built in control panel: 14 buttons for input selection. 5 inch color display
  • Device control: 2 x RS-422 deck Hardware based real time H.265 encoder
  • Ultra HD down conversion: Built in, high quality hardware down converter outputs Ultra HD to HD with down-converted signal on SDI outputs C & D and HDMI output when connected to an HD-only TV
  • HD to SD down conversion: Built in, high quality hardware down converter outputs HD to SD with down-converted signal on SDI output B, Component and Composite NTSC/PAL. SD output selectable between letterbox, anamorphic 16:9 and center cut 4:3
  • HD up conversion: Built in, high quality hardware up conversion from SD to 720HD or 1080HD on playback. Selectable between 4:3 pillarbox, 14:9 zoom and 16:9 zoom
  • HD cross conversion: Built in, high quality hardware cross conversion from 720p to 1080HD and 1080HD to 720p on playback
  • Real time effects: DaVinci Resolve, Final Cut Pro X internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects
  • Colorspace conversion: Hardware based real time
  • 3D processing: Dual stream and frame packed capture & playback.
  • Physical installation: Requires a computer with either a Thunderbolt port or available PCI Express slot. Blackmagic PCI Express Cable Kit available separately for high speed PCI Express Gen 3 connection. Please check support pages to see the full system requirement.
  Operating Systems
  • Mac 10.14 Mojave,
  • Mac 10.15 Catalina or later.
  • Windows 8.1 and 10, both 64-bit.
  • Linux
  Power Requirements
