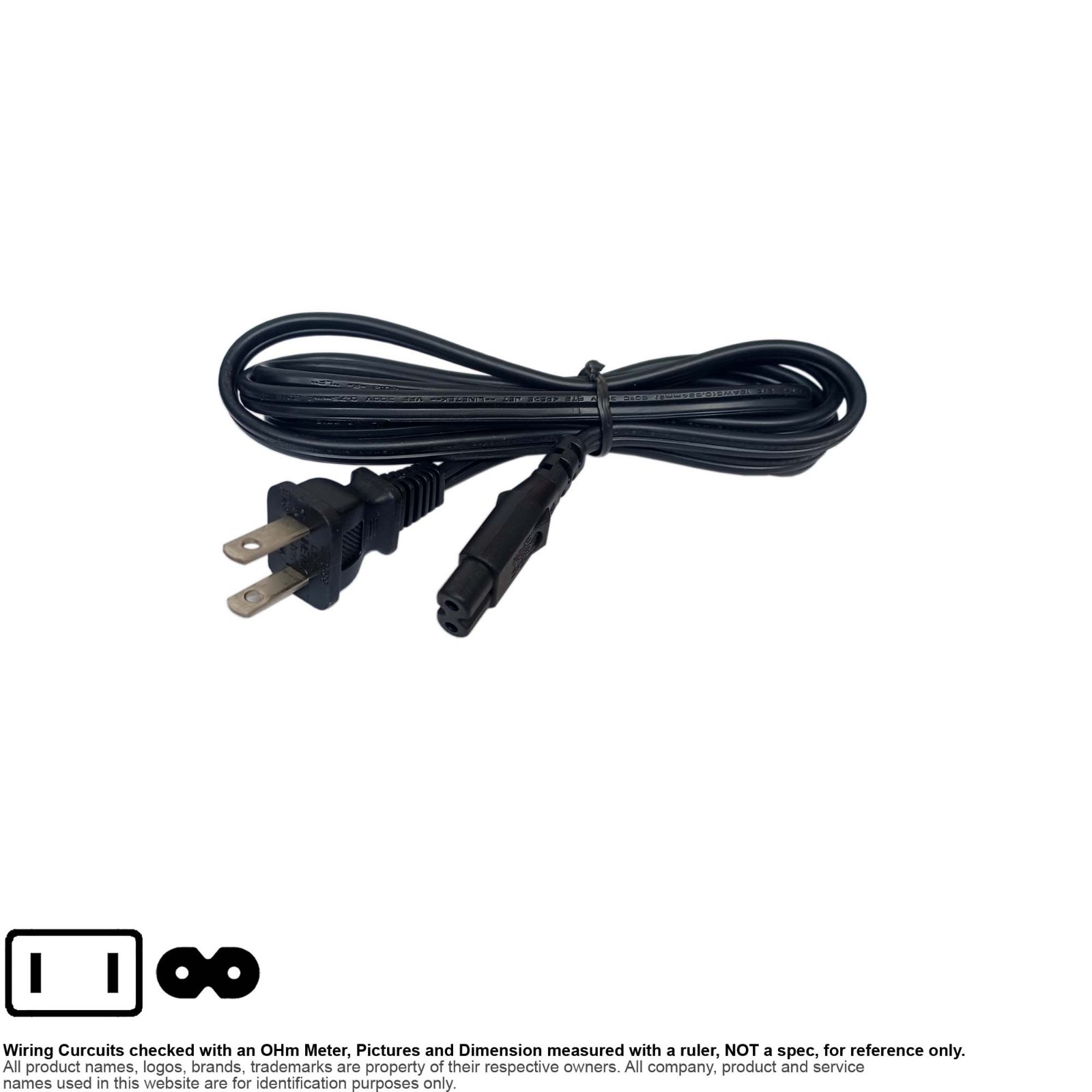

- Description: AC Power Cord 2-Prong NEMA 1-15P IEC C7 Linetek UL E138949-E Cable E70782 LP-5 Male Plug LS-7C 2-Slot Figure 8 Female Non-Polarized Receptacle SPT Stranded Parallel Thermoplastic Flat Zip Cord Single Layer 18AWG 6FT Flat-Wire SKU 091345
- Manufacturer:
- Taiwan Line Tek Electronic
- Brand or Distributor:
- Model:(and/or Compatible, Equivalent, Interchangeable)
- LineTek UL E138949E Wire E70782 Connector
- Seller's SKU 091345
- Connectors:
- NEMA 1-15P Male Plug (Linetek UL E70782 LP-5)
- IEC C7 2-Slot Figure 8 Non-Polarized Female Receptacle (Linetek UL E70782 LS-7C)
- Cable Marking
- (UL) E138949-E SPT-2 2/C 18AWG(0.824mm²) 60°C 300V VW-1 ---LINETEK--- CSA LL90989 SPT-2 2/C 18AWG(0.824mm²) 60°C 300V FT2 JET ---LINETEK--- VFF 300V 0.75mm² 2012 -F- "LF"
- The reason there are both 0.75mm² (~18.46AWG) & 18AWG (0.824mm²) marking on the same cable:
- This cable is a "world cord" certified for two different geographic regions that use entirely different sizing standard.
- North America (UL & CSA) uses the American Wire Gauge (AWG) system. It certiies the conductor as 18 AWG (which equals 0.824mm²).
- Japan (JET / PSE) uses the Metric system for wire cross-section areas. It certifies the exact same wire under Japan's standard size of 0.75mm².
- Because 18AWG(0.824mm²) is slightly thicker than 0.75mm², it safely exceeds the physical and electrical safety requirement set by Japan's JET.
- This allows Linetek to manufacture a single cost-effective cable that can be legally packaged and sold with electronics in the US, Canada, and Japan.
- Shape & Insulation:
- SPT Flat Zip-Cord Single layer Insulation
- Wire Gauge:
- Overall Length: 6FT
- Weight: 3.1 oz (estimated shipping weight 7 oz)
- Condition:(Subject to Availability)
- SKU ______U - Used, may have signs of cosmetic wear.
- Packaging: Non-retail packaging, in unprinted box or plastic bag.
- For use with or pulled from: (for reference only)
- Used in: (for reference only, info source IECInternational Electrotechnical Commission)
- American Samoa, Antigua and Barbuda, Aruba, Bahamas, Barbados, Belize, Bermuda, British Virgin Islands, Canada, Cayman Islands, Colombia, Costa Rica, Cuba, Dominican Republic, Ecuador, El Salvador, Guam, Guatemala, Guyana, Haiti, Honduras, Jamaica, Japan, Jordan, Lao People's Democratic Republic, Lebanon, Liberia, Mexico, Micronesia (Federated States of), Montserrat, Netherlands Antilles,, Nicaragua, Niger, Palau, Panama, Peru, Philippines (Rep. of the), Puerto Rico, Saint Kitts and Nevis, Taiwan, Thailand, Trinidad and Tobago, Turkmenistan, Turks and Caicos Islands, United States of America, United States Virgin Islands, Venezuela.
- American plug's Neutral Pin is wider than the live pin.
- Japanese plug's Neutral Pin is identical to the live pin.
- As a result, Japanese plugs can be used in the US but often not the other way around.
- Serial Number (Available or Sold):
 |
|
