About this item

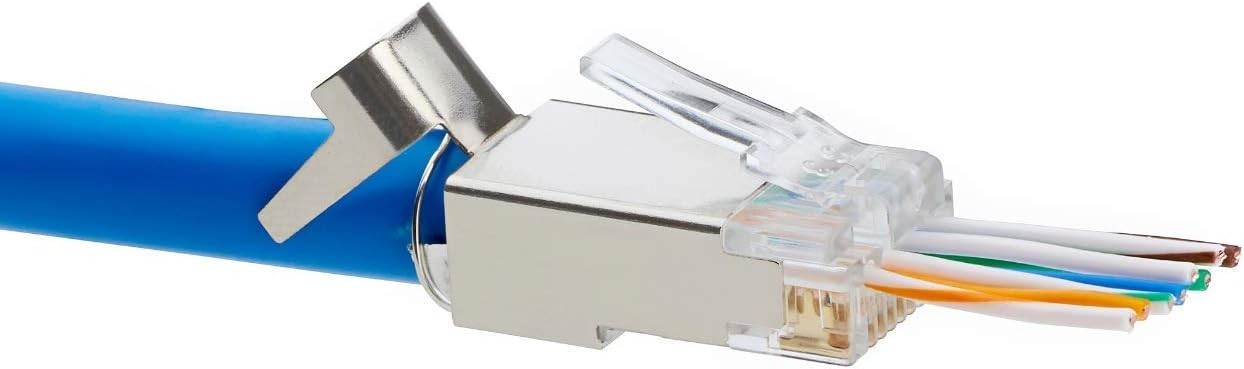

• [Pass Through Design] No more load bars means less waste and frustration. The ability to see the conductors come through the front of the plug allows you to verify the correct TIA 568A or 568B color sequence which minimizes bad terminations.
• [Maximum Performance] Ensuring the best cable to plug combination, pass through plugs allow a push-pull method to seat the cable jacket as far into the plug as possible, minimizing crosstalk. Triple prong gold plated contacts. Staggered conductor design. Shielded (External Ground). Supports Power over Ethernet: PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) 4PPoE up to 100W.
• [Versatile] Compatible with 23AWG stranded or solid conductors. Suitable for cable jacket diameters up to ∅8.00mm and conductor insulation diameters from ∅1.05 - 1.25mm. Terminate and crimp external ground tab with the trueCABLE all in one V2 tool.
• [Premium Quality] ANSI/TIA 568 2.D Certified and Validated with trueCABLE F/UTP Ethernet cable. ETL, UL, SGS (RoHS REACH / SVHC) Verified and Tested. FCC compliant.
• [Resealable Bag] These shielded pass through RJ45 ends are sure to make your install hassle free.

Product description

Pass Through Design

No more load bars means less waste and frustration! The ability to see the conductors come through the front of the plug allows you to verify the correct TIA 568A or 568B color sequence which minimizes bad terminations.

Maximum Performance

Supports PoE++ (802.3bt) 4PPoE, up to 100W. Staggered conductor design minimizes NEXT/FEXT ensuring the best cable to plug combination. Pass through plugs allow a push-pull method to seat the cable jacket as far into the plug as possible.

Versatile

Compatible with 23AWG stranded or solid conductors. Suitable for cable jacket diameters up to ∅8.00mm and conductor insulation diameters from ∅1.05 - 1.25mm.

Compatibility Counts

Terminate with our All-In-One Crimp and Termination Tool (trueCRIMP). Trims conductors from the nose of the plug accurately and automatically, even staggered conductor plugs.
