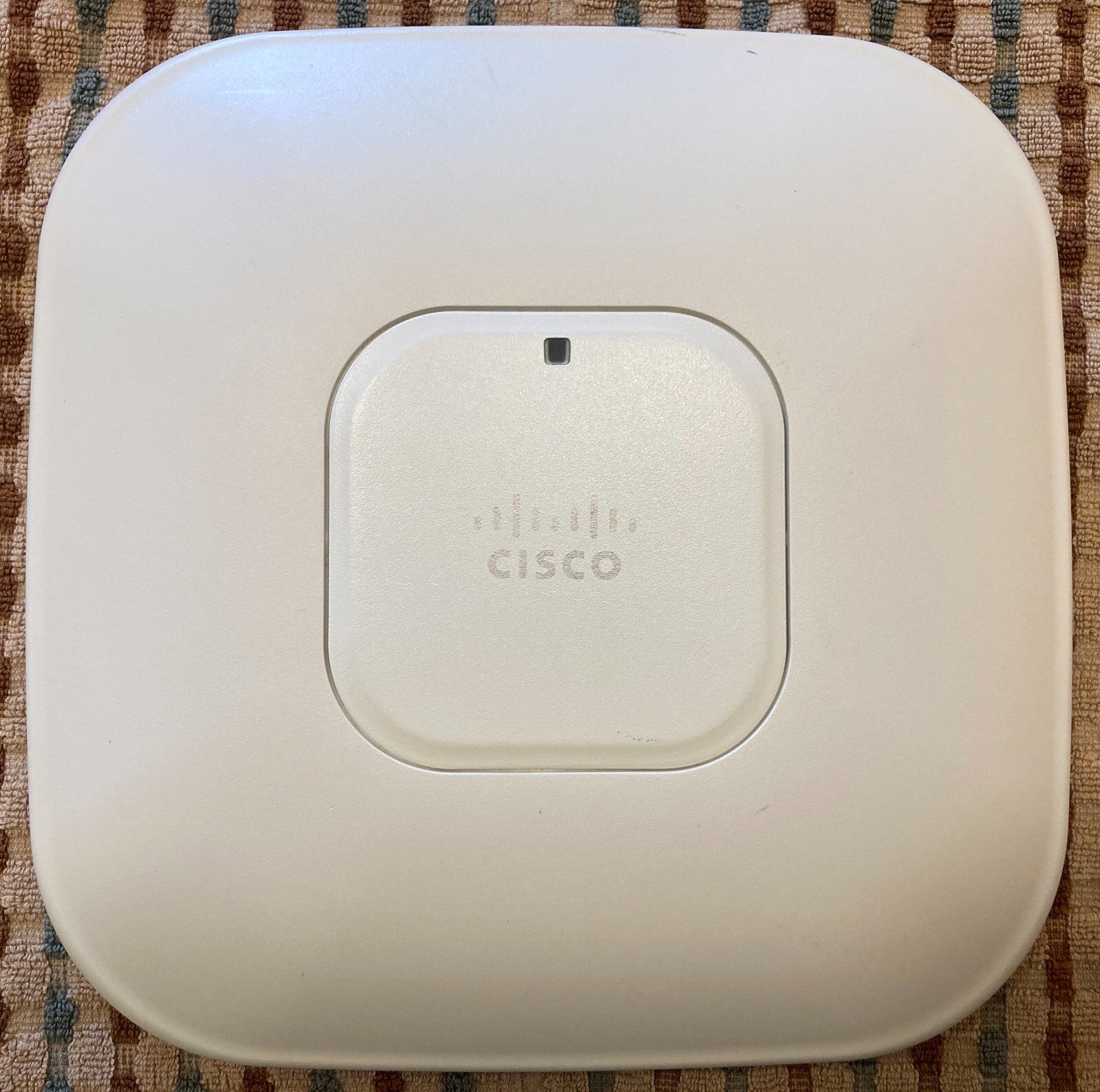

Cisco Aironet 1142 AIR-LAP1142N-A-K9 Wireless AP Dual-Band WiFi Access Point. Reset to factory defaults, output of serial console on bootup provided:using eeprom valuesWRDTR,CLKTR: 0x87000800 0x40000000
RQDC ,RFDC : 0x80000037 0x00000208using ▒▒▒▒ ddr static values from serial eeprom
ddr init doneRunning Normal Memtest...
Passed.
IOS Bootloader - Starting system.
FLASH CHIP: Numonyx P33
Checking for Over Erased file system is available.DDR values used from system serial eeprom.
WRDTR,CLKTR: 0x87000800, 0x40000000
RQDC, RFDC : 0x80000037, 0x00000208PCIE0: link is up.
PCIE0: VC0 is active
PCIE1: link is up.
PCIE1: VC0 is active
PCIEx: initialization done
flashfs[0]: 203 files, 8 directories
flashfs[0]: 0 orphaned files, 0 orphaned directories
flashfs[0]: Total bytes: 32385024
flashfs[0]: Bytes used: 9719296
flashfs[0]: Bytes available: 22665728
flashfs[0]: flashfs fsck took 22 seconds.
Reading cookie from system serial eeprom...Done
Base Ethernet MAC address: 30:f7:0d:2e:90:e9
Ethernet speed is 1000 Mb - FULL duplex
Loading uncompressed and installed, entry point: 0x4000
executing...
enet haltedSecondary Bootloader - Starting system.
FLASH CHIP: Numonyx P33
Checking for Over Erased file system is available.
flashfs[0]: 203 files, 8 directories
flashfs[0]: 0 orphaned files, 0 orphaned directories
flashfs[0]: Total bytes: 32385024
flashfs[0]: Bytes used: 9719296
flashfs[0]: Bytes available: 22665728
flashfs[0]: flashfs fsck took 6 seconds.
Reading cookie from system serial eeprom...Done
Base Ethernet MAC address: 30:f7:0d:2e:90:e9Secondary bootloader Ethernet not enabled, skip ether_init
Unable to locate IOS image with name **xx**.
Boot CMD: 'boot uncompressed and installed, entry point: 0x4000
executing...Cisco IOS Software, C1140 Software (C1140-K9W7-M), Version 15.3(3)JD17, RELEASE SOFTWARE (fc2)
Copyright (c) 1986-2019 by Cisco Systems, Inc.
Compiled Fri 12-Apr-19 05:14 by prod_rel_teamInitializing flashfs...
FLASH CHIP: Numonyx P33
Checking for Over Erased 203 files, 8 directories
flashfs[2]: 0 orphaned files, 0 orphaned directories
flashfs[2]: Total bytes: 32126976
flashfs[2]: Bytes used: 9719296
flashfs[2]: Bytes available: 22407680
flashfs[2]: flashfs fsck took 8 seconds.
flashfs[2]: Initialization complete.
flashfs[4]: 0 files, 1 directories
flashfs[4]: 0 orphaned files, 0 orphaned directories
flashfs[4]: Total bytes: 11999232
flashfs[4]: Bytes used: 1024
flashfs[4]: Bytes available: 11998208
flashfs[4]: flashfs fsck took 1 seconds.
flashfs[4]: Initialization complete....done Initializing flashfs.Radio0 present 8363 8000 90020000 0 90030000 B
Rate table has 300 entries (16 legacy/64 11n/220 11ac)POWER TABLE FILENAME = present 8363 8000 98020000 0 98030000 0
POWER TABLE FILENAME = speed is 1000 Mb - FULL duplexcisco AIR-AP1142N-A-K9 (PowerPC405ex) processor (revision A0) with 98294K/32768K bytes of memory.
Processor board ID FTX1630E7YR
PowerPC405ex CPU at 586Mhz, revision number 0x147E
Last reset from watchdog timer expired
1 Gigabit Ethernet interface
2 802.11 Radios32K bytes of flash-simulated non-volatile configuration memory.
Base ethernet MAC Address: 30:F7:0D:2E:90:E9
Part Number : 73-12836-05
PCB Serial Number : FOC16285H00
Top Assembly Part Number : 800-33775-04
Top Assembly Serial Number : FTX1630E7YR
Top Revision Number : A0
Product/Model Number : AIR-LAP1142N-A-K9Press RETURN to get started!*Mar 1 00:00:12.065: %SOAP_FIPS-2-SELF_TEST_IOS_SUCCESS: IOS crypto FIPS self test passed (15)
*Mar 1 00:00:12.067: *** CRASH_LOG = YES*Mar 1 00:00:14.524: %SOAP_FIPS-2-SELF_TEST_RAD_SUCCESS: RADIO crypto FIPS self test passed on interface Dot11Radio 0 (4)
*Mar 1 00:00:14.701: loading Power Tables from flash:/c1140-k9w7-mx.153-3.JD17/T2.bin. Class = A
*Mar 1 00:00:14.701: record size of 2ss: 404 read_ptr: 24A4B80*Mar 1 00:00:15.561: %SOAP_FIPS-2-SELF_TEST_RAD_SUCCESS: RADIO crypto FIPS self test passed on interface Dot11Radio 1 (4)
*Mar 1 00:00:15.646: loading Power Tables from flash:/c1140-k9w7-mx.153-3.JD17/T5.bin. Class = A
*Mar 1 00:00:15.647: record size of 2ss: 404 read_ptr: 24A4B80
Base Ethernet MAC address: 30:F7:0D:2E:90:E9*Mar 1 00:00:18.453: %LINK-6-UPDOWN: Interface GigabitEthernet0, changed state to up
*Mar 1 00:00:20.091: Starting Ethernet promiscuous mode
*Mar 1 00:11:24.001: %LINEPROTO-5-UPDOWN: Line protocol on Interface GigabitEthernet0, changed state to up
*Mar 1 00:11:24.065: %DOT11-5-EXPECTED_RADIO_RESET: Restarting Radio interface Dot11Radio0 due to interface reset
*Mar 1 00:11:24.078: %DOT11-5-EXPECTED_RADIO_RESET: Restarting Radio interface Dot11Radio1 due to interface reset
*Mar 1 00:11:24.084: %DOT11-5-EXPECTED_RADIO_RESET: Restarting Radio interface Dot11Radio0 due to interface is getting down
*Mar 1 00:11:24.087: %DOT11-5-EXPECTED_RADIO_RESET: Restarting Radio interface Dot11Radio1 due to interface is getting down
*Mar 1 00:11:24.103: %LINK-5-CHANGED: Interface Dot11Radio0, changed state to administratively down
*Mar 1 00:11:24.103: %LINK-5-CHANGED: Interface Dot11Radio1, changed state to administratively down
*Mar 1 00:11:24.143: %SYS-5-RESTART: System restarted --
Cisco IOS Software, C1140 Software (C1140-K9W7-M), Version 15.3(3)JD17, RELEASE SOFTWARE (fc2)
Compiled Fri 12-Apr-19 05:14 by prod_rel_team
*Mar 1 00:11:24.144: %SNMP-5-COLDSTART: SNMP agent on host ap is undergoing a cold start
*Mar 1 00:11:24.171: %DOT11-5-EXPECTED_RADIO_RESET: Restarting Radio interface Dot11Radio0 due to interface reset
*Mar 1 00:11:24.175: No configuration in NVRAM..Auto Install initiated..
*Mar 1 00:11:25.103: %LINEPROTO-5-UPDOWN: Line protocol on Interface Dot11Radio0, changed state to down
*Mar 1 00:11:25.103: %LINEPROTO-5-UPDOWN: Line protocol on Interface Dot11Radio1, changed state to down
*Mar 1 00:11:25.104: %LINEPROTO-5-UPDOWN: Line protocol on Interface BVI1, changed state to up
*Mar 1 00:11:33.123: %DHCP-6-ADDRESS_ASSIGN: Interface BVI1 assigned DHCP address 192.168.1.3, mask 255.255.255.240, hostname ap
