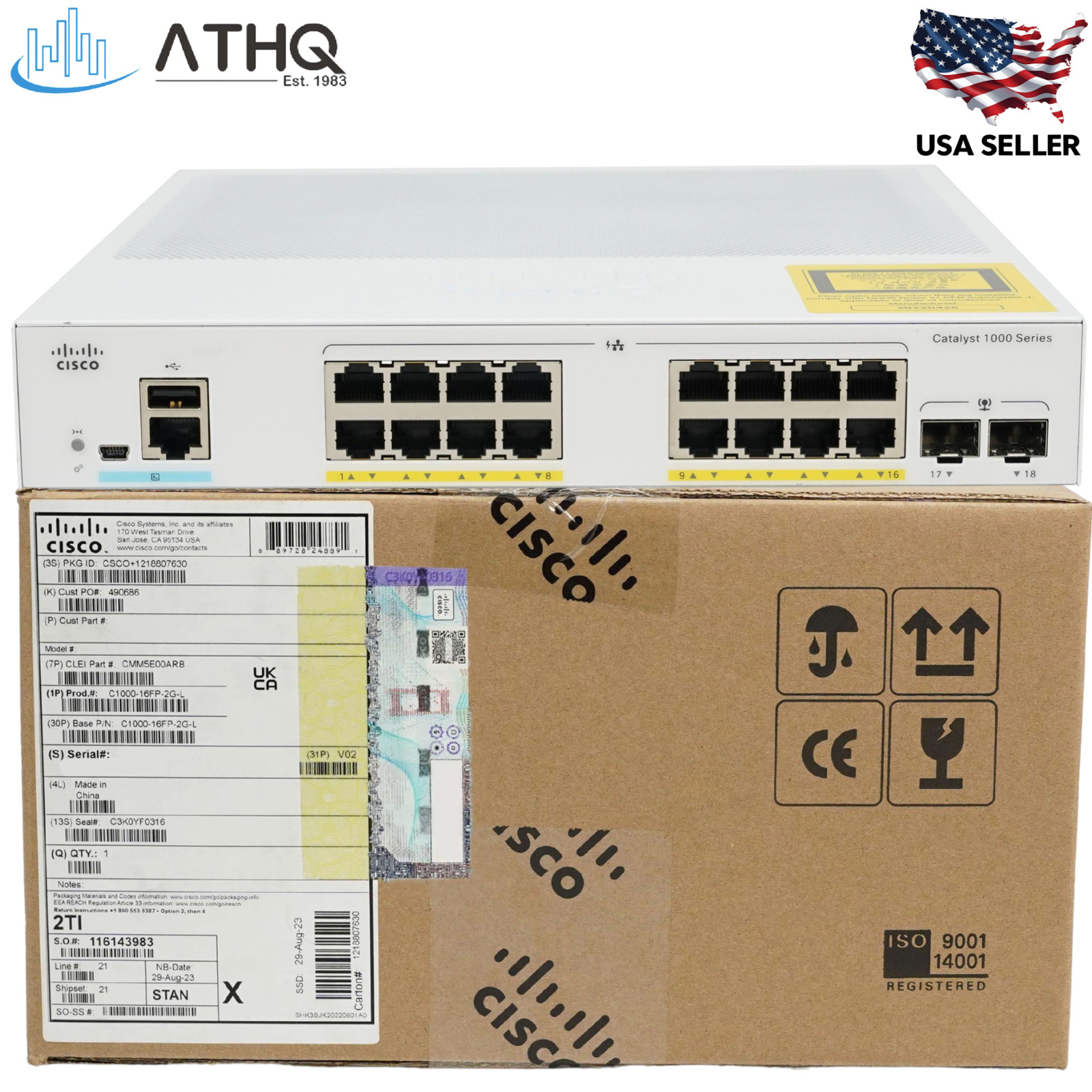

Cisco Catalyst C1000-16FP-2G-L - 16-Port Gigabit PoE+ Managed Switch | 240W PoE Budget | 2x 1G SFP Uplinks - New

The Cisco Catalyst C1000-16FP-2G-L is a fixed managed Layer 2 Gigabit Ethernet switch purpose-built for small businesses, branch offices, retail stores, and out-of-the-wiring-closet IoT deployments. It delivers 16 x 10/100/1000BASE-T PoE+ ports with a 240W total PoE budget and 2 x 1 Gigabit SFP uplinks for fiber connectivity. Running on Cisco IOS Software (LAN Lite) with 36 Gbps switching capacity, a silent fanless chassis, and management via CLI, on-box web UI, or SNMP, it is ideal for powering IP phones, wireless access points, IP cameras, and POS systems.

Cisco Catalyst C1000-16FP-2G-L - Key Features & Benefits

• 16 Gigabit PoE+ Ports — 240W Total PoE Budget: Delivers 16 x 10/100/1000BASE-T (RJ45) ports supporting IEEE 802.3af (up to 15.4W/port) and IEEE 802.3at PoE+ (up to 30W/port), with a 240W total budget dynamically allocated across ports by Cisco intelligent power management
• 2 x 1G SFP Fiber Uplinks: Two dedicated 1 Gigabit SFP (1000BASE-X) uplink slots for flexible fiber connectivity to core switches, distribution layers, or long-distance runs; supports Cisco-compatible SFP modules
• Enterprise-Class Layer 2 Performance: 36 Gbps switching capacity and 26.78 Mpps forwarding rate with a 16,000-entry MAC address table and support for 256 active VLANs (4,094 VLAN IDs) — handles demanding small-business and branch workloads with headroom
• Fanless, Rack-Mountable 1RU Design: Silent fanless operation makes it ideal for classrooms, retail floors, and medical offices; compact 10.56 x 12.14 x 1.73 in chassis weighing 5.48 lbs (2.49 kg)
• Cisco IOS Security & Monitoring: Runs Cisco IOS Software (LAN Lite) with 802.1X authentication, BPDU Guard, ACLs, QoS, and SPAN/RSPAN for secure access control and traffic monitoring; supports sFlow and SNMP for network visibility
• Flexible Management Options: Configure via CLI, on-box web UI, SNMP, or Bluetooth console through the dedicated RJ-45, USB mini-B, and USB-A console ports — deploy quickly without complex infrastructure

Cisco Catalyst C1000-16FP-2G-L - Technical Specifications

• Part Number: C1000-16FP-2G-L
• Product Family: Cisco Catalyst 1000 Series
• Downlink Ports: 16 x 10/100/1000BASE-T PoE+ (RJ45)
• Uplink Ports: 2 x 1 Gigabit SFP (1000BASE-X)
• PoE Standards: IEEE 802.3af (up to 15.4W/port) • IEEE 802.3at PoE+ (up to 30W/port)
• PoE Budget: 240W (total, dynamically allocated)
• Switching Capacity: 36 Gbps
• Forwarding Rate: 26.78 Mpps
• MAC Address Table: 16,000 entries
• VLAN Support: 256 active VLANs • 4,094 VLAN IDs
• Software: Cisco IOS • LAN Lite
• Switch Type: Fixed managed Layer 2
• Management: CLI • Web UI • SNMP • sFlow
• Console Ports: 1x RJ-45 • 1x USB mini-B • 1x USB-A (Bluetooth console)
• Power Supply: Internal, 100–240V AC auto-ranging, 50/60 Hz
• Max Power Consumption: 256.8W (with PoE) • 16.8W (without PoE)
• Operating Temperature: 23° to 122°F (−5° to 50°C) up to 5,000 ft
• Dimensions (W x D x H): 10.56 x 12.14 x 1.73 in
• Weight: 5.48 lbs (2.49 kg)
• Form Factor: Fixed-configuration, rack-mountable (1RU), fanless
• Condition: New

Cisco Catalyst C1000-16FP-2G-L - Frequently Asked Questions (FAQ)

• What is the difference between the C1000-16FP-2G-L and the C1000-16P-2G-L?
  Both have the same 16 Gigabit PoE+ ports and 2 x 1G SFP uplinks. The difference is the PoE budget: the C1000-16FP-2G-L provides 240W (Full PoE), while the C1000-16P-2G-L provides 120W (Partial PoE). The FP model is the right choice when powering higher-draw devices like Wi-Fi access points or PTZ cameras across multiple ports.
• Does this switch have an internal power supply, or does it need an external brick?
  It has an internal auto-ranging power supply (100–240V AC, 50/60 Hz) — no external power brick is required. Connect the included power cable and it's ready to run.
• What software runs on the Catalyst 1000 Series, and is it Layer 2 or Layer 3?
  The switch runs Cisco IOS with LAN Lite and is a fixed managed Layer 2 switch with limited static routing. It supports VLANs, 802.1X, ACLs, QoS, and SPAN, but does not support dynamic Layer 3 routing protocols like OSPF or EIGRP.
