The Catalyst 3750X 48 Port Data LAN-Base switches are cost effective,lightweight, stackable and have an array of network modules andredundant power supply options available. WS-C3750X-48T-L includes 48 x 10/100/1000 Ethernet ports that share a total switching fabric bandwidth of 160 Gbps and itsupports standard 9216-byte Jumbo frames as well as numerous remote management protocols. The switch allows you to add modules in the field by incorporating hot swap protocols and connectors. These switches work well for growing networks.
Device Type:Switch - 48 ports - managed - stackable
Form Factor:Rack-mountable
Dimensions (WxDxH):17.5 in x 18.1 in x 1.8 in
Features:Hot swap module replacement, layer 2 switching, dynamic IP address assignment , DHCP support, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), Cisco StackWise Technology, Per-VLAN Spanning Tree Plus (PVST+), Uni-Directional Link Detection (UDLD), Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN)
Capacity:Virtual interfaces (VLANs) : 255
Ports:48 x 10/100/1000
Performance:Switching fabric bandwidth : 160 Gbps
Remote Management Protocol:SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI
Compliant Standards:TUV GS, CISPR 22 Class A, GOST, cUL, NOM, VCCI Class A ITE, EN55022 Class A, CB, AS/NZS 60950-1, AS/NZ 3548 Class A, CCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, FCC Part 15 A, CSA C22.2 No. 60950-1

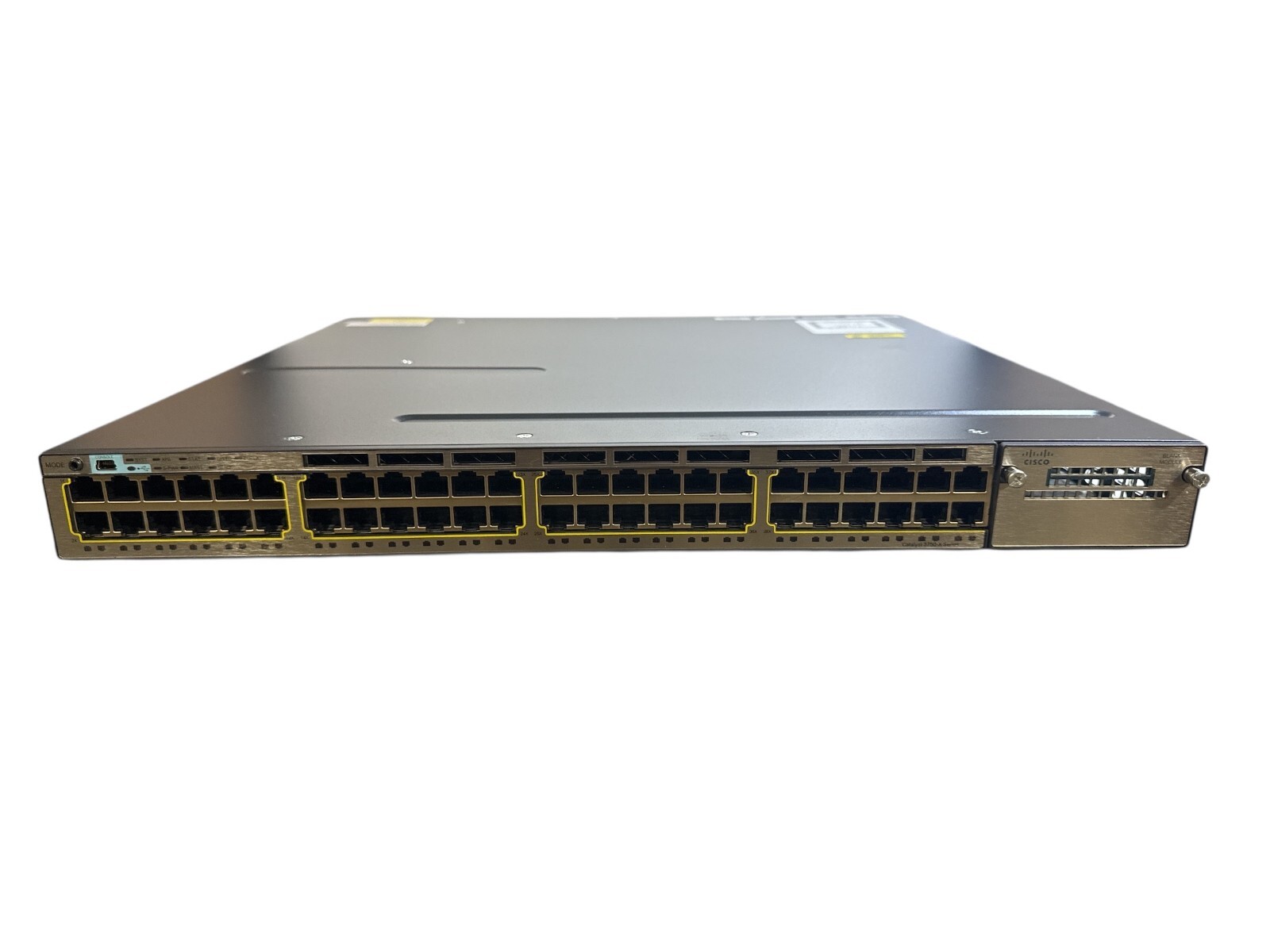

Product Description:Cisco Catalyst 3750X-48T-L - switch - 48 ports - managed - rack-mountable
Interfaces:48 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ USB : 1 x 4 pin USB Type A ¦ 1 x console - mini-USB Type B - management ¦ 1 x RS-232 - RJ-45 - management ¦ 1 x 10Base-T/100Base-TX - RJ-45 - management ¦ Network stack device : 2 x
Expansion Slots:1 (total) / 1 (free) x expansion slot
