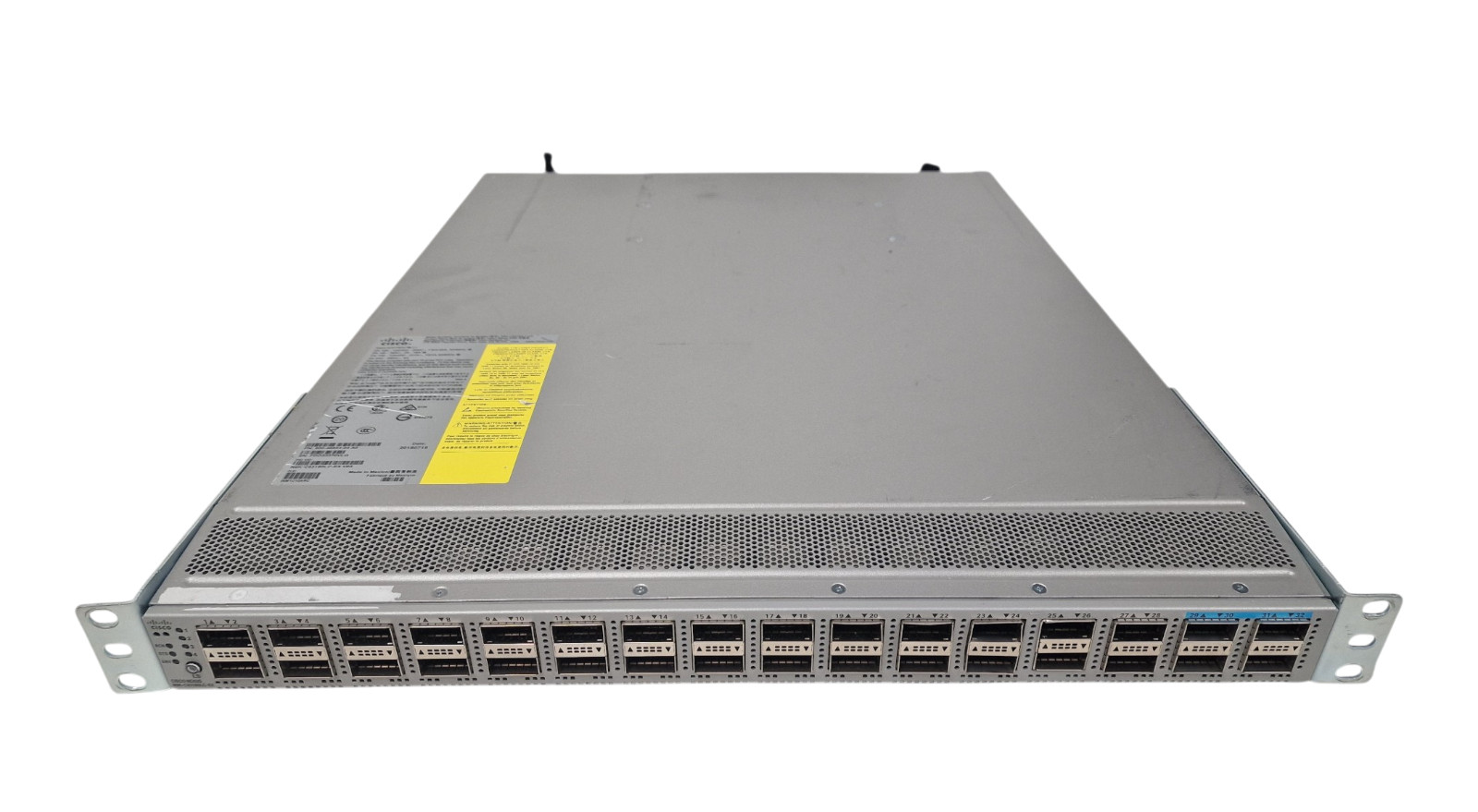

2 Year Warranty Fast Worldwide Delivery Trusted Seller In Stock & Ready to Ship Cisco N9K-C93180LC-EX Nexus 9300 28x 40G QSFP+ + 4x 100G QSFP28 1U Switch What's Included 1 x Cisco N9K-C93180LC-EX Nexus 9300 28x 40G QSFP+ + 4x 100G QSFP28 1U Switch - Refurbished

Specification Delivery Returns Ports:28 x 40G QSFP+, 4 x 100G QSFP28

Air Flow: Port-Side Intake

Power Supplies Installed: 2x 500W Redundant PSU

Operating System:NXOS 9.3.3

Switching Capacity:3.6 Tbps

Management: Fully Managed

Chassis Type: 1U Rackmountable

Boot Log:
switch# showversion
Cisco NexusOperating System (NX-OS) Software
TAC (C)2002-2019, Cisco and/or its affiliates.
All rightsreserved.
The copyrights tocertain works contained in this software are
owned by otherthird parties and used and distributed under their own
licenses, such asopen source. This software is provided"as is," and unless
otherwise stated,there is no warranty, express or implied, including but not
limited towarranties of merchantability and fitness for a particular purpose.
Certaincomponents of this software are licensed under
the GNU GeneralPublic License (GPL) version 2.0 or
GNU GeneralPublic License (GPL) version 3.0 or theGNU
Lesser GeneralPublic License (LGPL) Version 2.1 or
Lesser GeneralPublic License (LGPL) Version 2.0.
A copy of eachsuch license is available at
Software
BIOS: version 05.47
NXOS: version 9.3(3)
BIOS compile time: 04/28/2022
NXOS image file is:bootflash:///nxos.9.3.3.bin
NXOS compile time: 12/22/2019 2:00:00 [12/22/2019 14:00:37]
Hardware
cisco Nexus9000 C93180LC-EX Chassis
Intel(R) Xeon(R) CPU D-1526 @ 1.80GHz with24570416 kB of memory.
Processor Board ID FDO22270VLQDevice name: switch
bootflash:53298520 kB
Kernel uptime is0 day(s), 0 hour(s), 2 minute(s), 28 second(s)Last reset at423663 usecs after Tue Jun 9 15:22:492026
Reason: Module PowerCycled
System version:
Service: HW check by card-clientplugin
Core Plugin, Ethernet showinventory
NAME:"Chassis", DESCR:"Nexus9000 C93180LC-EX Chassis"
PID:N9K-C93180LC-EX , VID: V03 ,SN: FDO22270VLQNAME: "Slot1", DESCR: "28x40G + 4x40/100GEthernet Module"
PID:N9K-C93180LC-EX , VID: V03 ,SN: FDO22270VLQNAME: "PowerSupply 1", DESCR: "Nexus9000C93180LC-EX Chassis Power Supply"
PID:NXA-PAC-500W-PI , VID: V01 ,SN: LIT22202675NAME: "PowerSupply 2", DESCR: "Nexus9000C93180LC-EX Chassis Power Supply"
PID:NXA-PAC-500W-PI , VID: V01 ,SN: LIT222026C7NAME: "Fan1", DESCR: "Nexus9000C93180LC-EX Chassis Fan Module"
PID:NXA-FAN-30CFM-B , VID: V01 ,SN: N/ANAME: "Fan2", DESCR: "Nexus9000C93180LC-EX Chassis Fan Module"
PID:NXA-FAN-30CFM-B , VID: V01 ,SN: N/ANAME: "Fan3", DESCR: "Nexus9000C93180LC-EX Chassis Fan Module"
PID:NXA-FAN-30CFM-B , VID: V01 ,SN: N/ANAME: "Fan4", DESCR: "Nexus9000C93180LC-EX Chassis Fan Module"
PID:NXA-FAN-30CFM-B , VID: V01 ,SN: N/Aswitch# showlicense usage
Feature Ins LicStatus Expiry Date Comments
No -Unused -
VPN_FABRIC No -Unused -
NXOS_OE_PKG No -Unused -
FCOE_NPV_PKG No -Unused -
SECURITY_PKG No 0Unused -
ACI-PREMIER-GF No -Unused -
N9K_UPG_EX_10G No -Unused -
TP_SERVICES_PKG No -Unused -
NXOS_ADVANTAGE_GF No -Unused -
NXOS_ADVANTAGE_M4 No -Unused -
NXOS_ADVANTAGE_XF No -Unused -
NXOS_ESSENTIALS_GF No -Unused -
NXOS_ESSENTIALS_M4 No -Unused -
NXOS_ESSENTIALS_XF No -Unused -
NXOS_ESSENTIALS_XM No -Unused -
SAN_ENTERPRISE_PKG No -Unused -
PORT_ACTIVATION_PKG No0 Unused -
NETWORK_SERVICES_PKG No- Unused -
NXOS_ADVANTAGE_M8-16 No- Unused -
NXOS_ESSENTIALS_M8-16 No- Unused -
FC_PORT_ACTIVATION_PKG No0 Unused -
LAN_ENTERPRISE_SERVICES_PKG No- Unused Model Hw Direction NXA-FAN-30CFM-B --front-to-back Ok
Fan2(sys_fan2) NXA-FAN-30CFM-B --front-to-back Ok
Fan3(sys_fan3) NXA-FAN-30CFM-B --front-to-back Ok
Fan4(sys_fan4) NXA-FAN-30CFM-B --front-to-back Ok
Fan_in_PS1 -- -- front-to-back Ok
Fan_in_PS2 -- -- front-to-back Ok
Fan Zone Speed:Zone 1: 0x80
Fan Air Filter :NotSupported
Power Supply:
Voltage: 12 Volts
Power Actual Actual Total
Supply Model Output Input Capacity Status
(Watts ) (Watts ) (Watts )
------- ------------------------- ------ ------------------------------
1 NXA-PAC-500W-PI 74 W 84 W 500 WOk
2 NXA-PAC-500W-PI 76 W 88 W 500 WOk
Power Supplyredundancy mode (configured)PS-Redundant
Power Supplyredundancy mode (operational)PS-RedundantTotal PowerCapacity (based on configured mode)500.00 W
Total Grid-A(first half of PS slots) Power Capacity500.00 W
Total Grid-B(second half of PS slots) Power Capacity500.00 W
Total Power ofall Inputs (cumulative)1000.00 W
Total PowerOutput (actual draw)151.00 W
Total Power Input(actual draw)172.00 W
Total PowerAllocated (budget) N/A
Total PowerAvailable for additional modules SensorMajorThresh MinorThres CurTempStatus
(Celsius) (Celsius) FRONT 70 42 21 Ok
1 BACK 80 70 25 Ok
1 CPU 90 80 34 Ok
1 Sugarbowl 110 90 42 Ok
