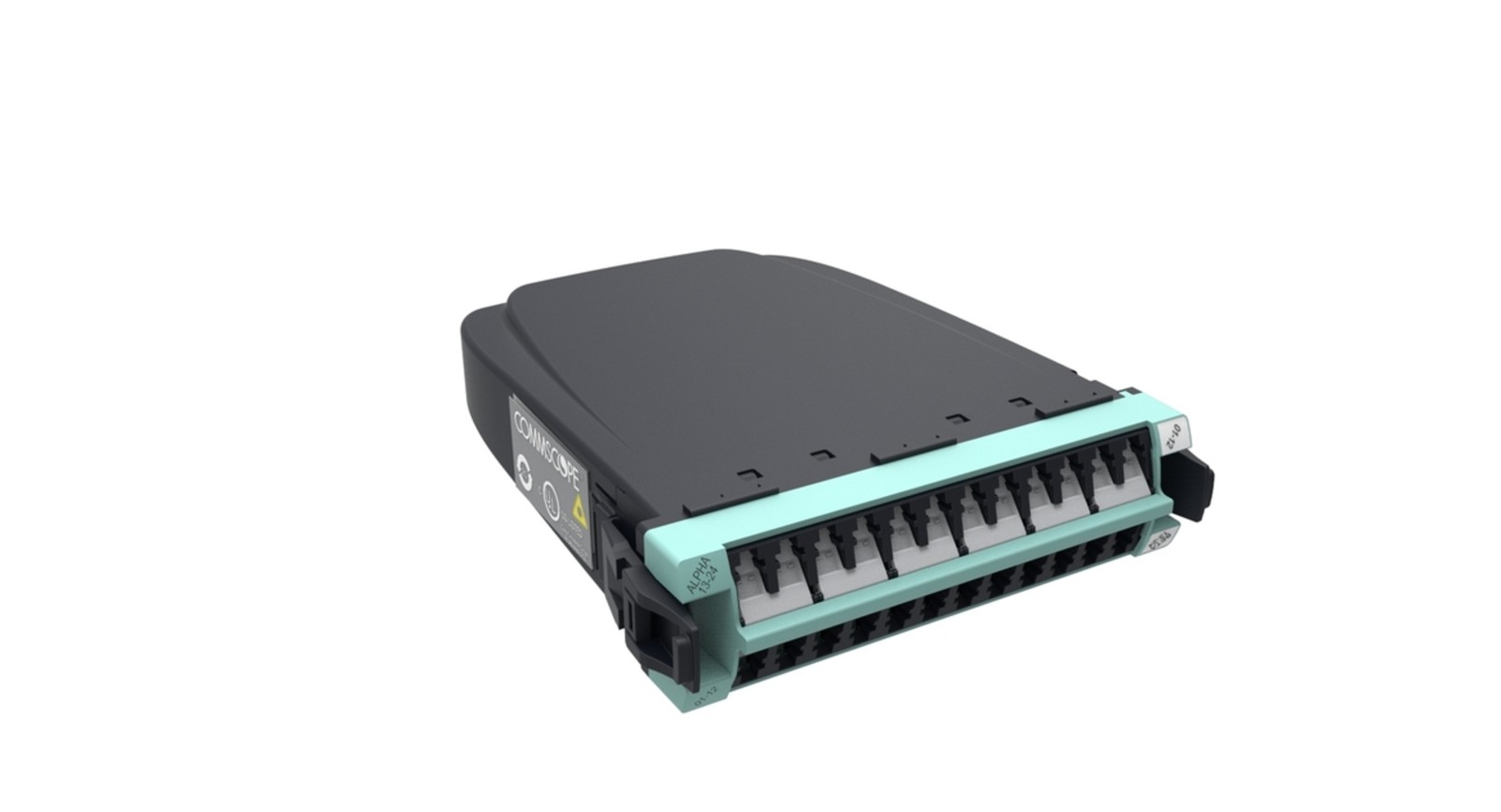

Image is an illustration, may not reflect the exact product sold. CommScope / Amphenol - 760206532 - InstaPATCH 360 LazrSpeed Standard Module, 24 LC Fibers (12 Duplex Ports), ( Each ) 1166.49
Specifications
Product Classification
Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Fiber module
Product Series G2
General Specifications
Color, front Aqua
Color, rear Gray
Interface, front LC
Interface Feature, front Duplex
Interface, rear MPO Pinned
Interface Feature, rear Key up/up
Polarity Method B
Shuttered Yes
Total Fibers, quantity 24
Dimensions
Height 27.94 mm | 1.1 in
Width 91.44 mm | 3.6 in
Depth 116.84 mm | 4.6 in
Optical Specifications
Fiber Mode Multimode
Fiber Type OM4
Insertion Loss, maximum 0.47 dB
Environmental Specifications
Qualification Standards IEC 61753-1 | TIA-568.3-D
Safety Standard CE | CSA | UL
Packaging and Weights
Packaging quantity 1
Weight, net 0.291 kg | 0.642 lb
Regulatory Compliance/Certifications
Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
REACH-SVHC
Product Details Manufacturer CommScope / Amphenol Mfr Part 760206532 Weight 2.0000 UPC 646444865111
