Compute Module 4 to Raspberry Pi 4 Adapter, Connect CM4 to Replace Raspberry Pi 4B, Alternative for Pi 4,Onboard 4-ch USB 3.0,RJ45 Gigabit Ethernet Port,PoE Header,Compatible with Pi 4B Series Hats
Product Details Color: CM4 To Pi 4B
Brand: waveshare
MPN: Does not apply
UPC: Does not apply
EAN: Does not apply

• Brand: waveshare
• CPU Model: Cortex
• Connectivity Technology: Ethernet, USB
• Included Components: CM4-to-Pi4-Adapter, Screws pack
• Operating System: Linux
• CPU Model: Cortex
• Connectivity Technology: Ethernet, USB
• Operating System: Linux
• Processor Brand: ARM
• Processor Count: 4
• Total Usb Ports: 4
• Brand: waveshare
• Built-In Media: CM4-to-Pi4-Adapter, Screws pack
• Manufacturer: Waveshare
• Model Number: CM4-to-Pi4-Adapter

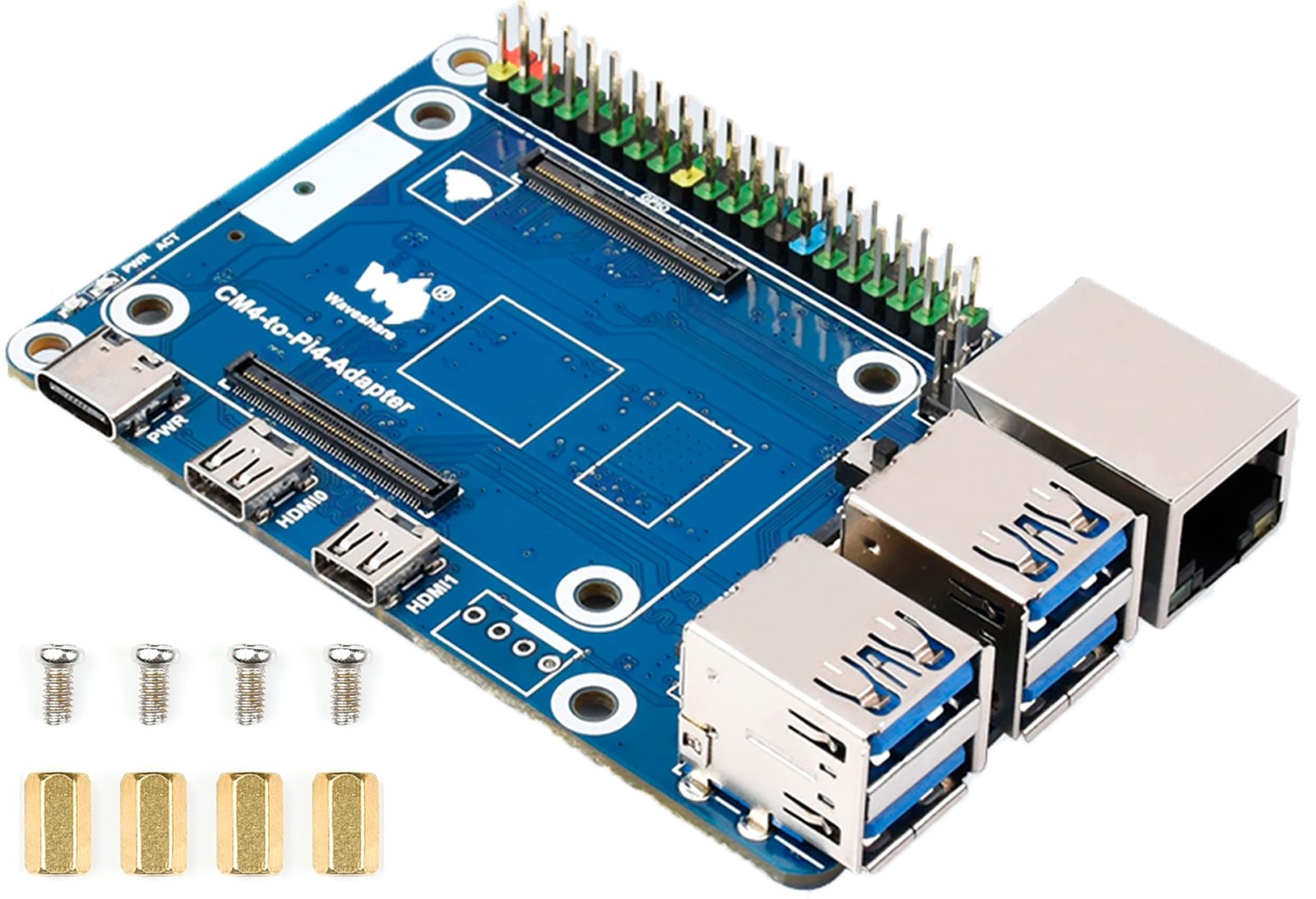

• This is a CM4 To Pi 4B Adapter---Compute Module 4 to Raspberry Pi 4 Model B Adapter, Based On Compute Module 4, Alternative Solution for Raspberry Pi 4B. Using Compute Module 4 to reproduce the Original appearance of Raspberry Pi 4. Note: Compute Module 4 is not included.
• Onboard standard CM4 connector, support access to CM4 Lite / eMMc series boards with Quad Core Cortex A72 64-bit processor, more powerful performance.
• Onboard 4-ch USB 3.0 ports, compatible with USB 2.0 / 1.1 transmission. Onboard RJ45 Gigabit Ethernet port, 10 / 100 / 1000 M adaptive. Onboard PoE header, for connecting PoE HATs.
• Compatible With Pi 4B Series HATs: Easy Access To Pi 4B Series HATs Or Other Development Projects
• USB Type C interface is for the power supply or can be used as the USB SLAVE interface for programming images. Do not connect to other devices when using the micro USB port to program the image for ensuring the power supply of Compute Module 4. CM4 must be provided by 5V 2A, or it will shut down, lower frequency, etc.

This is a CM4 To Pi 4B Adapter---Compute Module 4 to Raspberry Pi 4 Model BAdapter, Based On Compute Module 4, Alternative Solution for Raspberry Pi 4B.Using Compute Module 4 to reproduce the Original appearance of Raspberry Pi 4.Note: Compute Module 4 is not included. Features Onboard standard CM4connector, support access to CM4 Lite / eMMc series boards with Quad CoreCortex A72 64-bit processor, more powerful performance Easily compatible withthe interfaces of Raspberry Pi 4B board, the DISPLAY port position isinconsistent with the main board of Raspberry Pi 4B Onboard 4-ch USB 3.0ports, compatible with USB 2.0 / 1.1 transmission Onboard RJ45 GigabitEthernet port, 10 / 100 / 1000 M adaptive Onboard PoE header, for connectingPoE HATs DSI interface is DSI1 USB Type C interface is for the power supply orcan be used as the USB SLAVE interface for programming images Do not connectto other devices when using the micro USB port to program the image forensuring the power supply of CM4 CM4 must be provided by 5V 2A, or it willshut down, lower frequency, etc. For People Need a Pi4B with eMMC functionwhile the TF card is not very stable? This adapter is designed for you If youneed 4-ch USB3.0 and dislike the slow USB2.0 interface, you can choose thisadapter Suitable for application scenarios which require wider temperaturerange Need to find an alternative solution for your product which is designedbased on the Raspberry Pi 4B Online Tutorial/Online Document:n9.cl/sjh33Package Content CM4-to-Pi4-Adapter x1 Screws pack (locked to the board) x1
