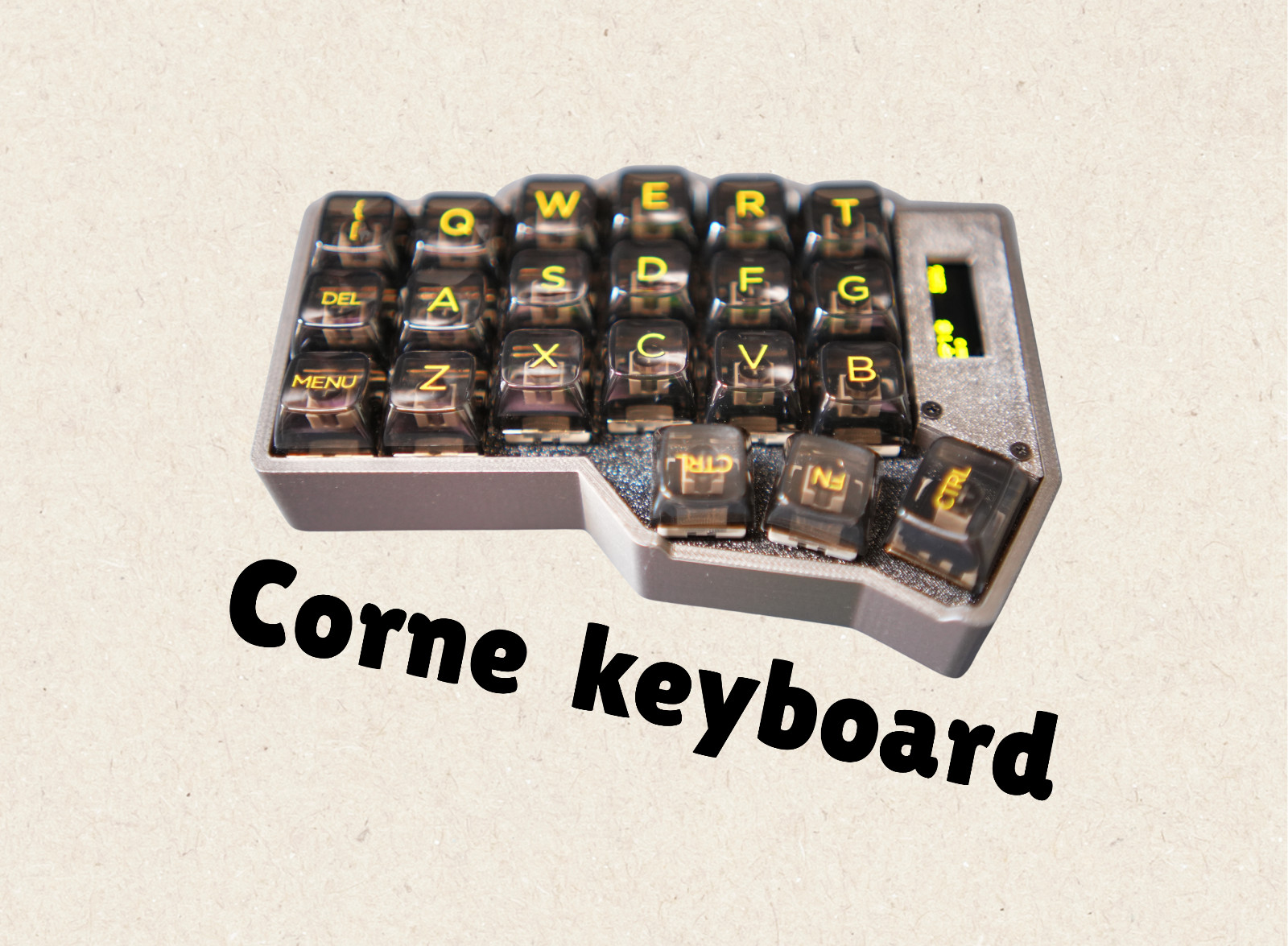

Corne split keyboard with Customized original designSelf-designed case (non-open source): the interfaces are specially designed and well sealed, unlike the extruding open-source circuit board which easily get dusted and lead to short circuit.Connection method:[1] Single-mode wired
[2] Dual-mode: Bluetooth without a receiver and WiredPackage:[1] Ready for Use Package:
Wired: with RGB;
Wireless: w/o RGB, with switches (gray wood v4) and keycaps.[2] DIY Kit Package (without switches and caps):
Wired: with RGB;
Wireless: w/o RGB.Must-see before ordering:
The case is 3D printed, and the layer pattern is inevitable. The structural joints cannot be as smooth as the injection molding process, but it is guaranteed to be tightly fitted. NOT for Perfectionists. No refunds or exchanges accepted.Warning: Please plug in the cable first and then the power cable. Try not to hot-plug the cable when the power is on, otherwise there is a certain chance of burning the main control board! All open source Corne circuit boards are like this.Delivery instructions:
The wired version comes with a TRS data cable for connecting the left and right keyboards, and the wireless version does not need it; please bring your own computer connection cable. The keyboard has a type-c interface.
The hardware is soldered before delivery.Keyboard Introduction:[Layout]: 42 layout[Master control]: Wired: rp2040; wireless: nrf52840[Connection method]:
Single-mode Wired: Left and right keyboards communicate through TRRS data cable, connected to computer via type-c;
Dual-mode Wired + Bluetooth: left and right connects through Bluetooth or wired.[Hot Swap]: Support Kailh hot swap switch (does not support short/low profile switch)[Key Change]: Wired: QMK firmware, rp2040 supports Vial; Wireless: ZMK firmware, supports key change on ZMK web page[RGB]: Supported[Case]: The shell and positioning plate are both FDM 3D printed, the PETG material is environmentally friendly and durable, and air leakage and dust are prevented from all sides.[Screen]: Two OLED screens are used to display the logo and the current layer and the pressed key.
