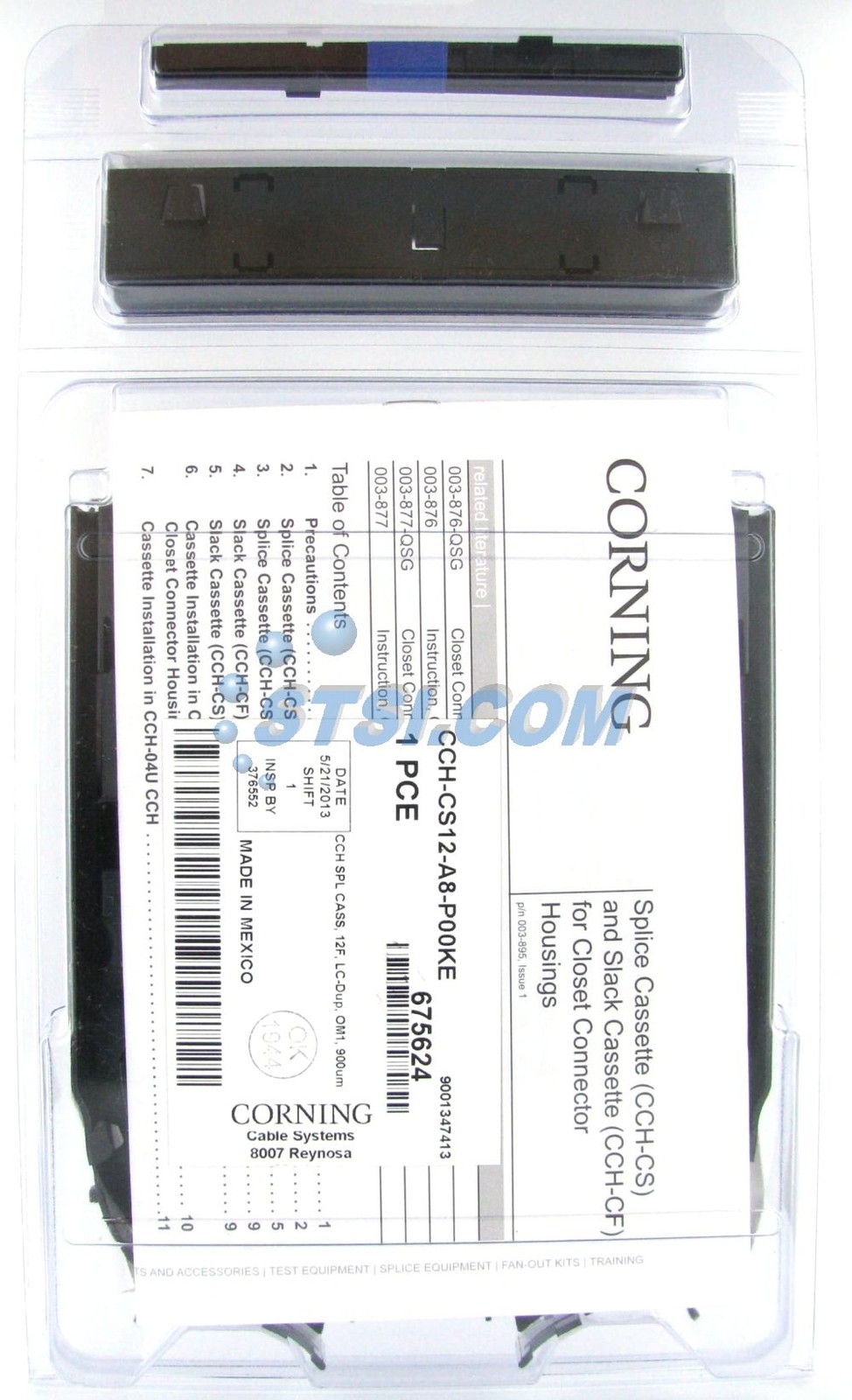

Corning CCH-CS12-A8-P00KE Pigtailed Splice Cassette, 12 Fiber, LC UPC Duplex 62.5um Multimode OM1

Description:

Corning CCH Pigtailed Splice Cassette 12 F, LC UPC duplex, 62.5 µm multimode (OM1), single-fiber (250 µm)
Part # CCH-CS12-A8-P00KECCH Splice Cassettes enable fast field termination and easy modular management of connectorization within the housing.The CCH Splice Cassette supports fusion splicing of individual or ribbon fibers, with heat shrinks, pigtail slack and cable slack managed within a single space-saving footprint. This eliminates the need for individual splice trays or separate splice housings, as well as allowing splicing to be done away from the rack housing in a suitable workspace as needed. The modular design makes it easy to access the fiber in an individual cassette without disturbing the other fibers in the housing.A CCH panel with the desired adapter configuration can be ordered separately and fits easily into the cassette. Each cassette is shipped with 1 rail for use with CCH-01U/2U/3U housings, and 2 rails used with CCH-04U housings. Grommets and cable ties for additional strain relief and protective tubing for incoming cable are also included. Splice cassettes ship with 12 single-fiber heat-shrink splice protectors
Features:

• Fiber Count 12
• Connector Configuration LC Duplex
• Polish UPC
• Housing Type Cassettes
• Panel or Module Type CCH
• Splice Protectors Type Heat Shrink, Mass Fusion
• Number of Splice Protectors 12
• Number of Ports 12
• Manage cable slack for a CCH panel in a modular footprint
• Fast, easy and reliable initial routing, and quick, simple reaccess for moves, adds and changes (MACs)
• Includes everything needed to convert a CCH housing for modular routing and/or splicing
• Easy ordering and field installation
• Modular splice capability
• Manage all splices inside the housing
• Colored 250 µm at splice point
• Easy to identify and prep colored 250 µm for fast and easy splicing
• Pre-prepped splice cassette
• Saves time in the field with a ready to splice product
• Broad operating temperature range (-40°C to +65°C)
• Utility and flexibility
