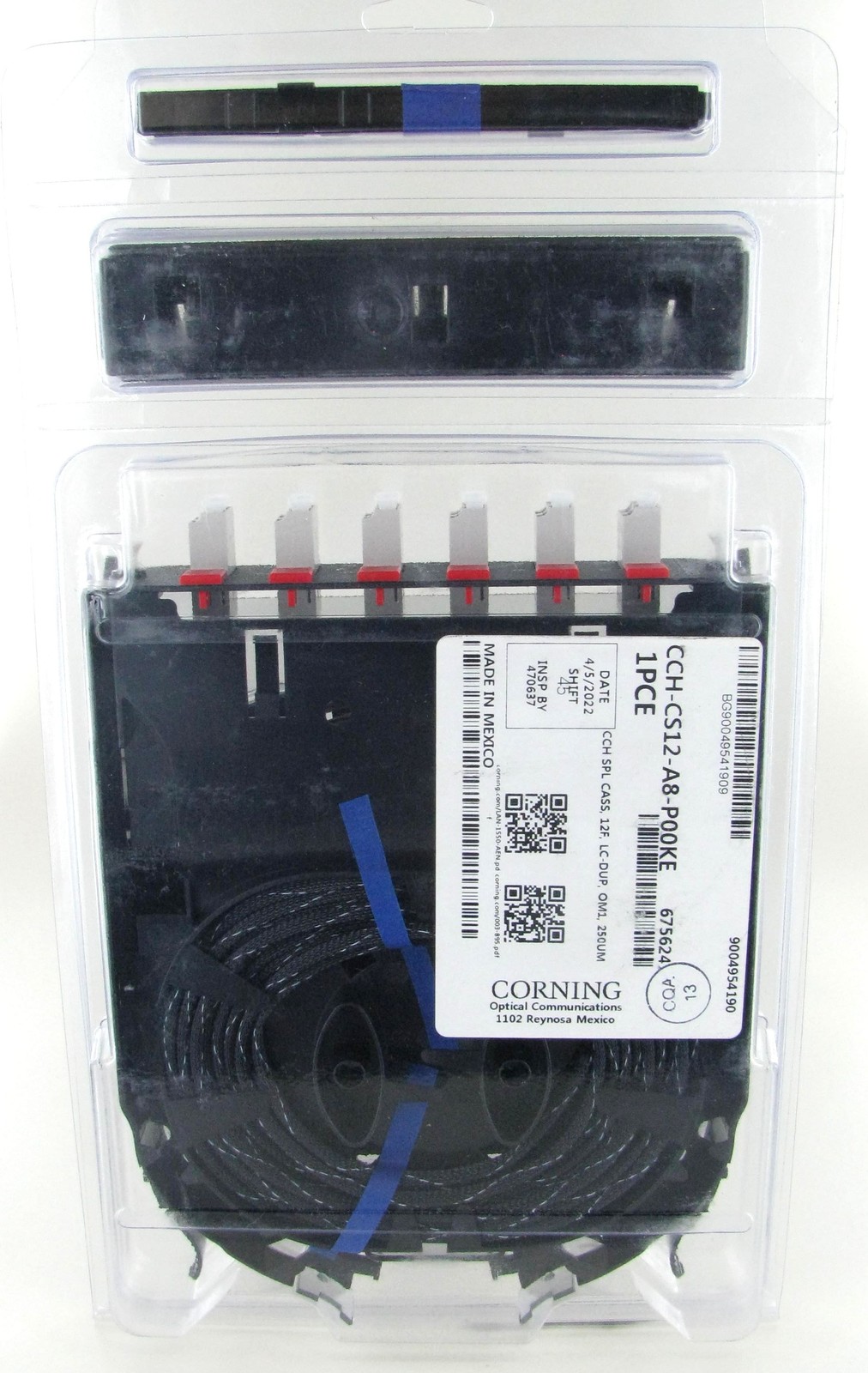

Corning CCH-CS12-A8-P00KE Pigtailed Splice Cassette, 12 Fiber, LC UPC Duplex 62.5um Multimode OM1This unit is new, open box. It still has the original fusion splice protector sleeves and rack rails, but there are slight smudges on the clear cover.Description:
Corning CCH Pigtailed Splice Cassette 12 F, LC UPC duplex, 62.5 µm multimode (OM1), single-fiber (250 µm)
Part # CCH-CS12-A8-P00KECCH Splice Cassettes enable fast field termination and easy modular management of connectorization within the housing.The CCH Splice Cassette supports fusion splicing of individual or ribbon fibers, with heat shrinks, pigtail slack and cable slack managed within a single space-saving footprint. This eliminates the need for individual splice trays or separate splice housings, as well as allowing splicing to be done away from the rack housing in a suitable workspace as needed. The modular design makes it easy to access the fiber in an individual cassette without disturbing the other fibers in the housing.A CCH panel with the desired adapter configuration can be ordered separately and fits easily into the cassette. Each cassette is shipped with 1 rail for use with CCH-01U/2U/3U housings, and 2 rails used with CCH-04U housings. Grommets and cable ties for additional strain relief and protective tubing for incoming cable are also included. Splice cassettes ship with 12 single-fiber heat-shrink splice protectorsFeatures:
Fiber Count 12
Connector Configuration LC Duplex
Polish UPC
Housing Type Cassettes
Panel or Module Type CCH
Splice Protectors Type Heat Shrink, Mass Fusion
Number of Splice Protectors 12
Number of Ports 12
Manage cable slack for a CCH panel in a modular footprint
Fast, easy and reliable initial routing, and quick, simple reaccess for moves, adds and changes (MACs)
Includes everything needed to convert a CCH housing for modular routing and/or splicing
Easy ordering and field installation
Modular splice capability
Manage all splices inside the housing
Colored 250 µm at splice point
Easy to identify and prep colored 250 µm for fast and easy splicing
Pre-prepped splice cassette
Saves time in the field with a ready to splice product
Broad operating temperature range (-40°C to +65°C)
Utility and flexibility
