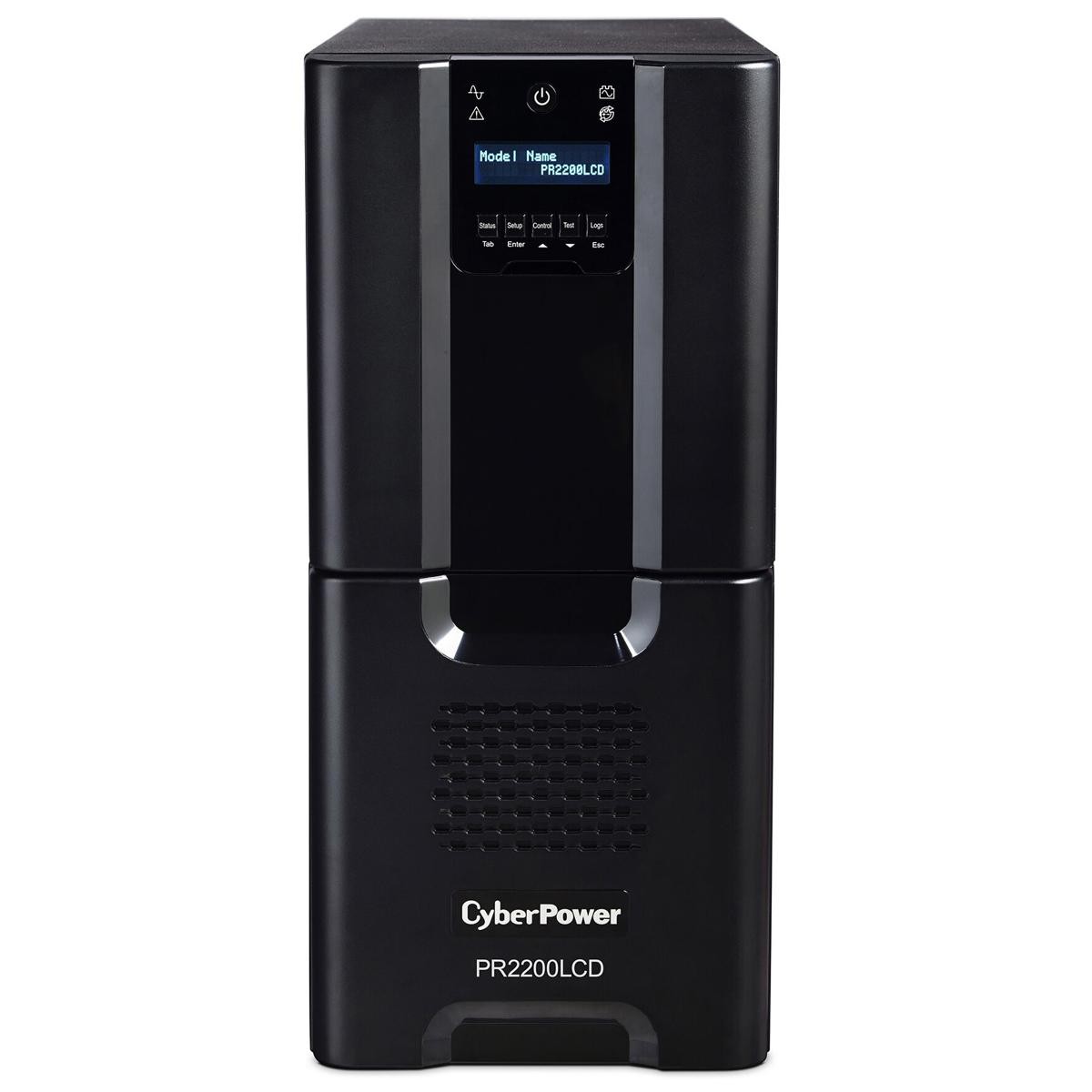

CyberPower PR2200LCD 2200 VA/1980W Smart App Sinewave Tower UPS, 8x NEMA 5-15R, 2x NEMA 5-20RSKU: CYPR2200LCDMfr. Part: PR2200LCD

Item IncludesPR2200LCD 2200 VA/1980W Smart App Sinewave Tower UPS - Emergency Power Off Cable (Gray) - PowerPanel Business Edition Software CD - Serial Interface Cable (DB-9) - USB A+B Type Cable - User Manual - CyberPower 3 Year Limited Warranty
DescriptionA tower UPS with line interactive topology, the CyberPower Smart App Sinewave PR2200LCD provides battery backup, power protection (using sine wave output), and surge protection for corporate servers, department servers, storage appliances, network devices, and telecom installations requiring Active PFC power source compatibility. The PR2200LCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently.Battery Backup
Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.

Surge Protection
Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.Line Interactive Topology
Exists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.Automatic Voltage Regulation (AVR)
Provides clean, consistent AC power by automatically increasing (boosting) low voltage without using battery power when incoming utility power experiences minor fluctuations.Sine Wave Output
Provides power protection to ENERGY STAR 6.0 systems with Active PFC power supplies.Extendable LCD Control Panel
Can be removed and relocated for easy viewing using the attached 4.5' cable. This feature provides easy access to view status or change settings on the UPS when it's installed in a hard to reach area such as the bottom of a rack, under a desk, in a crowed IT closet, or on the floor.PowerPanel Business Edition Software
Provides IT professionals with tools for monitoring and managing the UPS and backup power. This software offers remote management functionality.Cisco Compatible
This CyberPower UPS system is a Cisco EnergyWise compliant end device.FeaturesEfficient Remote Management
The Smart App Series offers full-featured network UPS management capabilities with the PowerPanel Business Edition software and an optional SNMP network management card. These remote management tools enable centralized power management, monitoring, control, and configuration. They also provide for safe shutdown of connected servers, workstations, and other devices via a standard Web browser or network management system (NMS).Safe Shutdown
The PowerPanel Business Edition software, included with every Smart App Sinewave UPS, enables an administrator to remotely manage each aspect of the UPS and facilitate the orderly automatic shutdown of connected equipment in the event of an extended power outage. This software also provides comprehensive network power management for corporate servers and critical workstations supported by the UPS, such as application/operating system shutdown, event logging, reporting, alerts and notifications.Programmable Outlet Control
Smart App UPS systems allow programming of critical outlets and non-critical outlets, giving administrators the ability to prioritize outlets and increase battery backup runtimes for the most critical equipment during extended power outages. Programmable outlet control also gives an administrator the option to delay-start non-critical outlets, permitting the internal batteries to fully recharge more quickly. This feature is vital to data centers where seamless, uninterrupted equipment bootup is a necessity.GreenPower UPS Technology: Bypass Design
GreenPower UPS Technology from CyberPower improves operating efficiency, reduce heat generation, and consume less power than conventional UPS models.Our patented Bypass Design allows current to bypass the transformer and automatic voltage regulation (AVR) when utility power is normal, thus reducing energy consumption and associated costs. Because utility power functions normally most of the time, the bypass design allows for substantial energy savings. This technology also reduces heat generation, an important factor in decreasing operating costs.Sine Wave Power
In the U.S., utility companies provide power to households and offices by distributing single phase alternating current (AC) power at a frequency of 60 Hz. Electrical power can be graphically depicted as a sine wave whereby the electrical signal alternates from +120 volts to -120 volts at a rate of 60 times per second (60 Hz). To enable more efficient operation of large, heavy equipment, utility companies provide commercial and industrial locations with three phase AC power which consists of three overlapping sine waves offset by 120 degrees.Although utility companies strive to distribute 100% sine wave power, many factors can introduce electrical noise into the AC power signal in the form of sine wave distortions and as voltage sags, surges, spikes, or other irregularities. Sine wave power is important for the optimal functioning of sensitive desktop computers and related peripheral equipment. Without sine wave power output, microprocessor-based equipment can become inoperative or sustain damage from power signal distortions.Active Power Factor Correction Supplies for IT Equipment
During the past thirty years, people have become more aware of the amount of energy used by IT equipment and devices. For many years, desktop computers and workstations inefficiently consumed power, partly due to the design of the power supplies which transformed AC power (from the wall outlet) to DC power (used by computers). This voltage transformation was relatively inefficient as reflected in low power factor ratings.In 1992, the U.S. Environmental Protection Agency (EPA), in collaboration with advocates in the IT industry, developed the ENERGY STAR program to prompt the development of energy-efficient products. Today this program is recognized as an international standard.To comply with ENERGY STAR standards, manufacturers of desktop and workstation computers incorporate Active Power Factor Correction (Active PFC) as part of the engineering designs, enabling energy efficiencies of 95% or higher. Computers with Active PFC power supplies require sine wave AC power, as supplied by utility companies, for trouble-free operation. For this reason, sine wave UPS systems have become the best choice for backup power.Simulated or stepped sine wave power, provided by entry-level UPS systems, may be problematic or incompatible with Active PFC devices. Sine wave power varies continuously from positive to negative. Simulated sine wave power mimics a sine wave by using a squared-off approximation. Due to this approximation, simulated sine wave power momentarily creates a zero power gap. When power is interrupted, a computer with an Active PFC power supply may not recognize incoming simulated sine wave power due to the zero output present in the approximated wave. This could cause the system to unexpectedly shut down or sustain system component stress.Automatic Voltage Regulation
Automatic Voltage Regulation (AVR) in line interactive UPS systems stabilizes the incoming AC signal to maintain output power at a nominal 120 volts by controlling high and low voltages without resorting to battery power. This significantly increases battery life and lessens the likelihood of data loss, memory freezes, and system crashes.How AVR Works in a Line Interactive UPS
A line interactive UPS includes an AVR autotransformer a special type of transformer designed to switch between powered coils of wire in response to variances in utility power input, thereby increasing or decreasing the magnetic field and the resulting output voltage to connected equipment.This type of UPS tolerates undervoltage brownouts and overvoltage surges without consuming backup battery power by automatically selecting different power taps on the AVR autotransformer. During normal operation, incoming AC power bypasses the autotransformer (where voltage highs and lows are controlled) while also charging the battery. When the incoming voltage falls below the AVR range, the UPS switches to battery backup, and the DC-AC inverter circuitry is engaged. Power will continue to be supplied by the battery-inverter circuit until incoming voltage returns to the range manageable by the AVR.Typical Applications
Department Servers
Network Devices
Corporate Servers
Storage Devices
VoIP Installations
Telecom Installations
Automatic Voltage RegulationFeaturesSurge ProtectionLine Interactive TopologyAutomatic Voltage Regulation (AVR)Sine Wave OutputGreenPower UPS Bypass DesignExtendable LCD Control PanelPowerPanel Business Edition SoftwareCisco CompatibleSpecificationsUPS TopologyLine InteractiveEnergy SavingGreenPower UPS BypassActive PFC CompatibleYesGeneralVoltage120 VACFrequency Range47 - 63 HzPlug TypeNEMA L5-30PPlug StyleStraightCord Length10' (3m)Input Voltage Range75 - 154 VACInputVA2200 VAWatts1980 WOn Battery Voltage120 VAC +/- 5%On Battery Frequency50/60 Hz +/- 1%Automatic Voltage Regulation (AVR)YesOn Battery WaveformSine WaveOutlet Type8x NEMA 5-15R, 2x NEMA 5-20ROutlets - Total10Outlets - Battery & Surge Protected10Overload ProtectionInternal Circuitry Limiting
Circuit BreakerTransfer Time4 msOutputRuntime at Half Load26 minutesRuntime at Full Load8 minutesBattery TypeSealed Lead-AcidBattery Size12V/17AhBattery Quantity4Hot-SwappableYesUser ReplaceableYesReplacement Battery CartridgeRB12170X4Replacement Battery Cartridge Quantity1Typical Recharge Time8 hoursBatterySurge Suppression1,030 JSurge Protection & FilteringHID Compliant USB PortYesSerial PortYesLED IndicatorsPower On
On-Line
On-Battery
Wiring fault
Replace BatteryAudible AlarmsOn Battery
Low Business EditionSNMP / HTTP Remote MonitoringYes, with optional RMCARD205LCD Control Panel41 different settings or status options via the UPS Status menu, UPS Setup & Control menus, and run Testing/Battery Calibration menus.Removable LCD Control Panel OptionYes - Standard with 4.5 ft CableManagement CableUSB Cable, Serial Cable, EPO CableEPO PortYesManagement & CommunicationsOperating Temperature32 - 104 Degree F (0 - 40 Degree C)Operating Humidity0 - 90% CSA C22.2 No. 107.3
FCC DOC Class AEnvironmentalRoHS CompliantCertificationsForm FactorTowerDimensions (W x H x D)7.7 x 17 x 20.2" (19.5 x 43.1 x 51.3cm)Weight116 lbs (52.6kg) WHO WE ARE
