Manufacturer: CyberPower

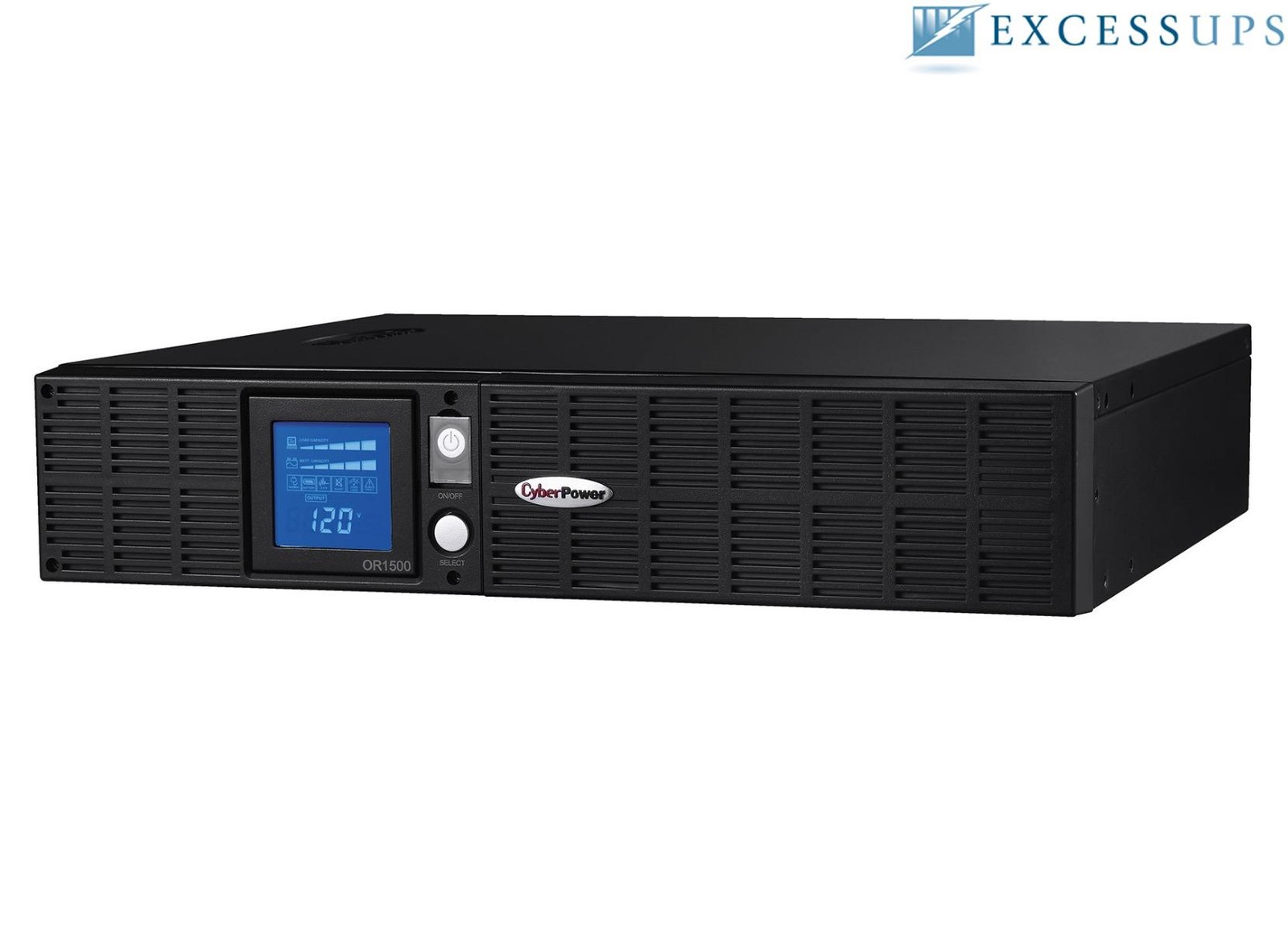

Model: CyberPower Smart App LCD UPS 1500VA 900W, RM/Tower, 2U, 15A, 120V
Condition: New Batteries, Refurbished UPS
Part Number: OR1500LCDRM2U
Maximum Output: 900W / 1500VA
Typical Backup Time at Half Load: 18 Minutes (450 Watts)
Typical Backup Time at Full Load: 6 Minutes (900 Watts)
Input: NEMA 5-15P, 120V / 15A Circuit
Output: (8) NEMA 5-15R Battery & Surge Protected Outlets
Topology: Line-Interactive
Output Waveform: Simulated Sine Wave on Battery
Automatic Voltage Regulation (AVR): Boost & Buck AVR
Local Management: USB & Dual Serial Ports
Display: Multifunction Rotatable LCD
Warranty: 1 Year Full Replacement Warranty
CyberPower Smart App LCD UPS 1500VA 900W OR1500LCDRM2U - User Manual
OR1500LCDRM2U - CyberPower Smart App LCD UPS 1500VA SeriesSmart App Intelligent LCD ModelOR1500LCDRM2U Power Capacity1500VA / 900W UPS TopologyLine-Interactive Energy-Saving TechnologyGreenPower UPS Bypass Technology Nominal Voltage120V AC Output WaveformSimulated Sine Wave on Battery Form FactorRack / Tower Rack Height2U Input Nominal Input Voltage120V AC Input Voltage Range90–140V AC Input Frequency Range47–63 Hz Input PlugNEMA 5-15PRecommended Circuit15A / 120V Plug StyleStraight Input Cord Length10 ft (3.05 m) Input Capacity1500VA Output Watt Capacity900W Nominal Output Voltage120V AC On-Battery Voltage120V AC ±10% On-Battery Frequency60 Hz ±1% On-Battery WaveformSimulated Sine Wave Total Outlets8 Output Connections(8) NEMA 5-15RBattery & Surge Protected Outlets8 Overload ProtectionInternal circuitry limiting / circuit breaker Transfer Time4 ms Voltage Regulation Automatic Voltage RegulationYes AVR TypeBoost & Buck AVR FunctionCorrects low and high utility voltage without switching to battery Battery ConservationAVR reduces unnecessary battery usage during voltage fluctuations Batteries & Runtime Battery TypeSealed Lead-Acid Battery Size12V / 7Ah Battery Quantity4 Typical Runtime at Half Load18 minutes (450W) Typical Runtime at Full Load6 minutes (900W) User-Replaceable BatteryYes Typical Recharge Time8 hours Extended RuntimeNo external battery expansion specified Communications & Management Local ManagementYes Network ManagementOptional Compatible Network Management CardCyberPower RMCARD100 Network Management InterfaceSNMP / HTTP Remote MonitoringYes, with optional RMCARD100 Remote ControlYes, with optional RMCARD100 Web Browser ManagementYes, with optional RMCARD100 USB InterfaceHID-Compliant USB Serial Ports(2) Serial Ports Power Management SoftwarePowerPanel Business Edition Software MonitoringUPS status and power-condition monitoring Automatic ShutdownSupported through PowerPanel Business Edition Event LoggingSupported through PowerPanel Business Edition Application / OS ShutdownSupported through PowerPanel Business Edition RJ11/RJ45 Protection1-In / 1-Out modem/network surge protection Coaxial ProtectionRG-6, 1-In / 1-Out User Interface, Alerts & Controls DisplayMultifunction Rotatable LCD LCD InformationAVR status, estimated runtime, battery capacity, load level, input/output voltage, output frequency and UPS operating status Status ConditionsOn-Battery, Overload, Fault and Silent Mode LED IndicatorsPower and status indicators Audible AlarmsOn Battery, Low Battery, Overload Surge Protection & Filtering Surge Suppression1840 J Maximum Surge Current13,000A EMI/RFI FiltrationYes Phone / Ethernet ProtectionRJ11/RJ45, 1-In / 1-Out Coaxial ProtectionRG-6, 1-In / 1-Out Physical Form FactorRack / Tower Convertible Rack Height2U HousingMetal Dimensions (W × H × D)17.25 × 3.5 × 15.75 in Weight52 cUL 107.1, FCC DOC Class B RoHSCompliant Condition & Warranty ConditionNew Batteries, Refurbished UPS Warranty1 Year Full Replacement Warranty
