Zombie Components LLC Sylmar, California Dell Dimension 3000 0TC667

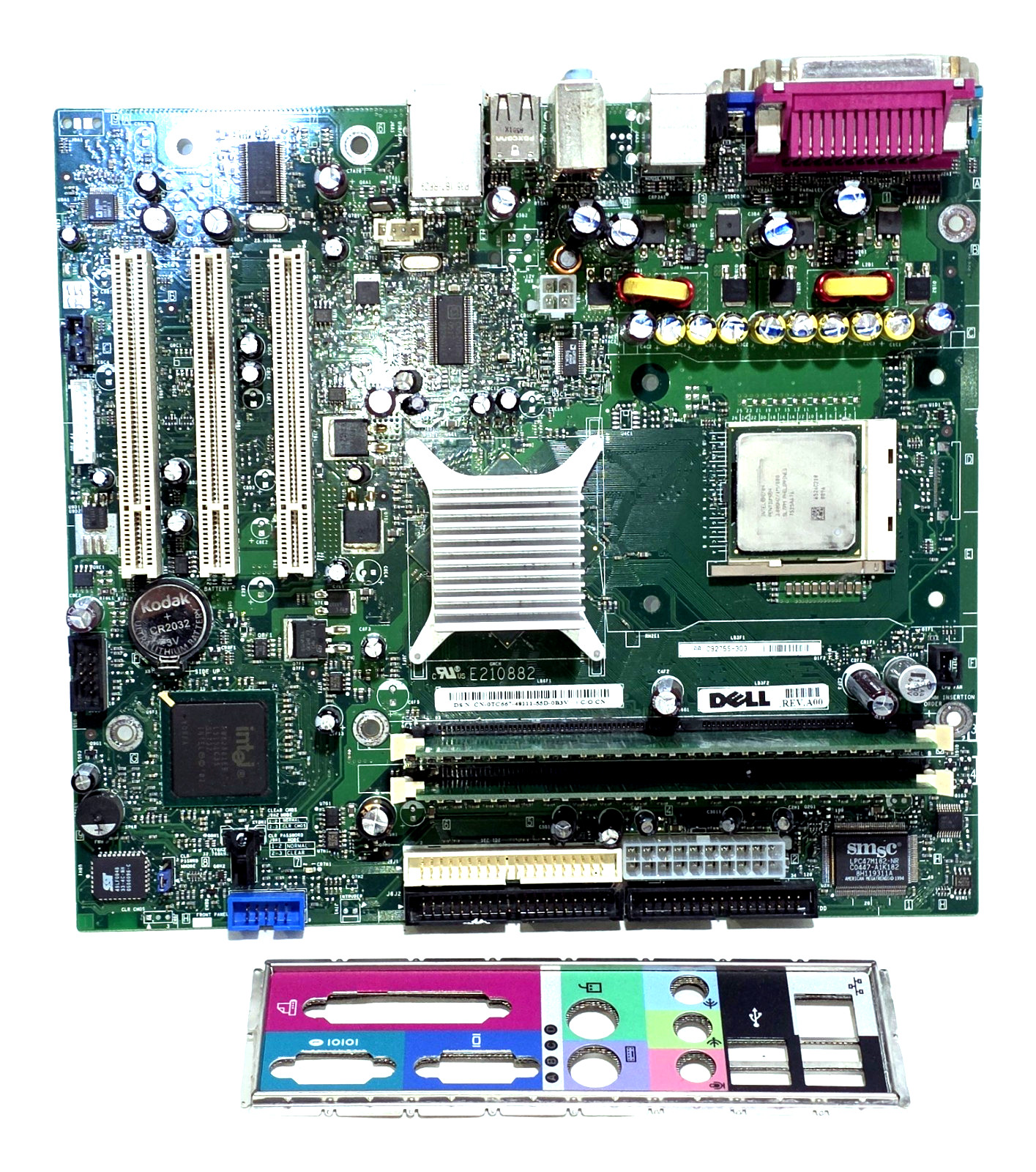

Dell Dimension 3000 system board, Dell part number 0TC667, REV A00, with the Intel Pentium 4 3.00 GHz processor (SL7PM) and 512 MB of DDR memory installed, plus the rear I/O shield. The BIOS setup screen photos in this listing were taken from this board and show the processor, 512 MB DDR SDRAM at 400 MHz in dual channel mode, BIOS A02 and Service Tag 6MKBY71.

Condition

60 Day Money Back Guarantee. Powered on to BIOS setup.

Details and highlights

• CPU installed and identified by sSpec: SL7PM, Pentium 4 3.00 GHz, 1 MB L2, 800 MHz bus.
• Matched pair of Micron PC3200 256 MB DIMMs, running dual channel at 400 MHz.
• Rear I/O shield included.
• BIOS screen photos tie the Service Tag 6MKBY71 to this board and show CPU and memory recognised.
• Socket lever, DIMM latches, PCI slots and rear connectors intact.

Specifications ParameterValue MPN0TC667Dell DS/NCN-0TC667-48111-55D-0B3V, REV A00Intel AA numberC92755-303SystemDell Dimension 3000Service Tag in BIOS6MKBY71BIOS versionA02ChipsetIntel 865GVCPU socketSocket 478 (mPGA478B)Installed CPUIntel Pentium 4 3.00 GHz, SL7PM, 1 MB L2 cache, 800 MHz busInstalled memory512 MB, 2 x Micron MT8VDDT3264AG-40BG4 256 MB PC3200 DDR 400 CL3Memory supported333 and 400 MHz DDR SDRAM, non-ECC, 2 slots, 2 GB maximumVideointegrated Intel Extreme Graphics 2, VGAAudioAC97, ADI 1980Networkintegrated 10/100 Ethernet, RJ45Expansion slots3 x PCI (32-bit, 33 MHz)Rear portsparallel, serial, VGA, 2 x PS/2, 3 audio jacks, 4 x USB, RJ45Board connectors2 x IDE, floppy, 20-pin main power, 4-pin 12 VForm factormicroATX, 244 x 244 mmCountry of originChina Included

Dell 0TC667 system boardIntel Pentium 4 3.00 GHz SL7PM processor, installed2 x 256 MB PC3200 DDR memory modules, installedRear I/O shieldCR2032 coin cell, installed

Not included:
CPU heat sink, fan, shroud and retention hardware
Chassis, power supply, drives and cables
Operating system

Compatibility and requirements

Built for the Dell Dimension 3000 chassis. A Socket 478 heat sink must be fitted before use. Power is through the 20-pin main and 4-pin 12 V connectors. Memory is 184-pin non-ECC DDR 333 or 400, two slots, 2 GB maximum. Add-in cards are PCI only; the board has no AGP or PCI Express slot. Drive connections are IDE and floppy.

Quality control

Where possible, electronics are tested. The value of an item determines the effort put into testing; items not specifically tested in detail are visually inspected and reviewed for operational status. Any exceptional wear is noted in the description. Most items are covered by a money-back guarantee.

Shipping

Box 14 x 14 x 7 in, ship weight 3 lb. Board packed in an antistatic bag with padding.
