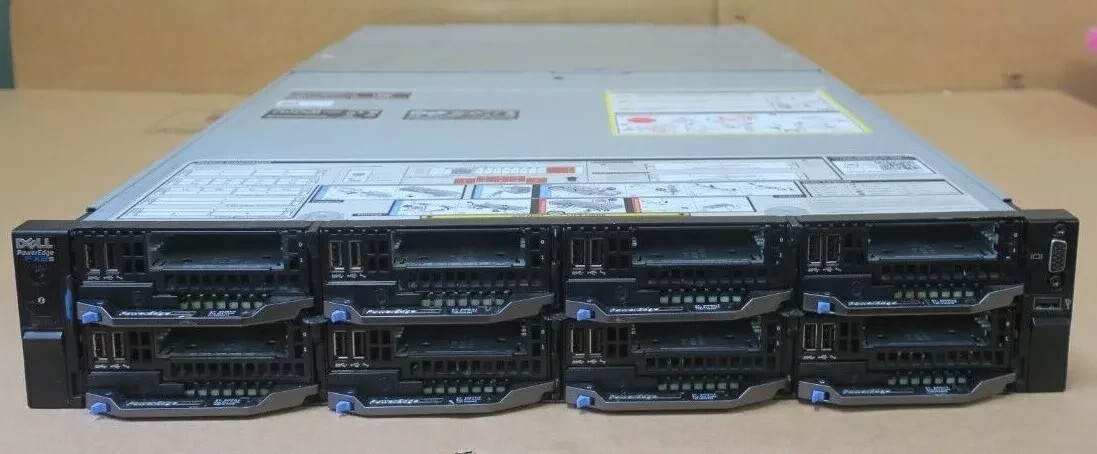

Dell PowerEdge FX2S Switched Chassis + 8x FC430 E5-2630v3 16GB 2Bay Node Servers

In Good Condition, Full Working Order

Tested

2 Year Warranty

Includes:

• 1 xDell PowerEdge FX2S Switched 2U Rackmount 8-Node Chassis with:
• 2 x 2000W Power Supply
• 1 x Dell CMC Chassis Management Controller Module 0RFGR
• 2 x Dell PowerEdge FN410S 4-Port 10GbE SFP+ I/O Aggregator Module T6W0J
• 8 x Dell PCIe x8 Riser ModulePTM8M
• 8 x Dell PowerEdge FC430 Node each with:
• 1 x Intel Xeon Eight-Core E5-2630v3 2.4GHz Processor with Heatsink
• 2 x 8GB 2Rx8 PC4-2133P Memory HMA41GR7MFR8N-TF
• 1 x 2-Bay 1.8" HDD Backplane M4NPN
• 1 x Dell PowerEdge 10Gb LOM Riser Dell PowerEdge FX2s offers a modular foundation for a converged architecture where management, power, and cooling are supported by the enclosure, consolidating resources and reducing cost. The Dell FX2s offers a "switched" architecture and has eight warm-swap PCIe modules to support combinations of quarter-width, half-width, and full width compute and storage modules. Compute, storage, and networking are shared in the 2U space and expansion is easily accomplished by adding more compute and storage nodes or additional FX2s enclosures. The modular FX2s supports several different compute nodes providing a flexible platform that's ideal for data centers and highly virtualized environments.
  The FX2s supports the following compute modules including the quarter-width PowerEdge FC430, the half-width PowerEdge FC640 and PowerEdge FC630, the full-width PowerEdge FC830, and the half-width PowerEdge FD332 storage module.
  Performance
  The compute modules supported on Dell's FX2s are powered by the latest generation Intel Xeon E5-2600 v3 or E5-2600 v4 processors and support DDR4 memory modules. The exceptions are the FC430 which also supports a single E5-1600 v3 CPU, the FM120x4, which supports four Atom processors, and the newest addition, the FC640 with dual 1st or 2nd generation Intel Xeon Scalable processors. Processors, memory, and storage are handled by the compute and storage modules while power, cooling, and networking are handled by the FX2 or FX2s chassis. The backplane automatically maps the compute modules to the PCIe 3.0 hot-swap modules located on the FX2s. The FC430. FC640, and FC630 support up to two CPUs, and the FC830 supports up to four CPUs.
  MemoryMemory is provided by the individual server nodes, which can support various levels. Supported capacity is dependent on the installed memory, memory configuration, and supported processor.
  StorageEach compute chassis provides some storage. However, the Dell EMC PowerEdge FD332 storage module has a capacity of 16x 2.5-inch storage drives, that can be accessed by the installed compute sleds or used as direct attached storage by other servers on the network.
  ExpansionThere are eight PCIe 3.0 expansion modules on the FX2s that automatically map to the installed compute sleds through the backplane. Two FN I/O modules or aggregators can be installed on the system for enhanced network connectivity and support up to eight 10GbE ports. The aggregators replace the standard network interface, simplifying cable management and optimizing "east/west" server to server traffic within the FX2s and LAN/SAN convergence. There are three different Aggregator modules to choose from. Two that support four ports with either copper or fiber optic cables, and a third aggregator module that offers a combination of four 10GbE ports and two fiber channel 2 plus 2 ports of SFP with 10GbE.
  ManagementThe FX2s can use Dell's Chassis Management Controller to manage nodes and system resources from a web interface. Two RJ-45 ports on the back of the system above the Aggregator modules connect to the external management network and also allow up to 20 FX2s to be daisy-chained together for access to more shared resources. The OpenManage portfolio supports local and remote management for the FX2s enclosure. All compute modules supported on the FX2 enclosure feature Dell's iDRAC8 with Lifecycle Controller. Both iDRAC8 and CMC are embedded components that can be upgraded to support additional management features with Express or Enterprise licensing.
  SummaryFeaturing dense storage, and capable of supporting up to 16 processors in a single chassis, the Dell FX2s offers powerful performance in a 2U space. The FX2s enclosure is a highly scalable, and flexible platform suitable for a number of different workloads depending on your choice of compute modules and storage.CS 281026 -1JLGQ52 bld dupchas dup dup 281027 -5VCR1L2bld dupchas dup dup 281028 -5X8T1L2bld dup chas dup dup
