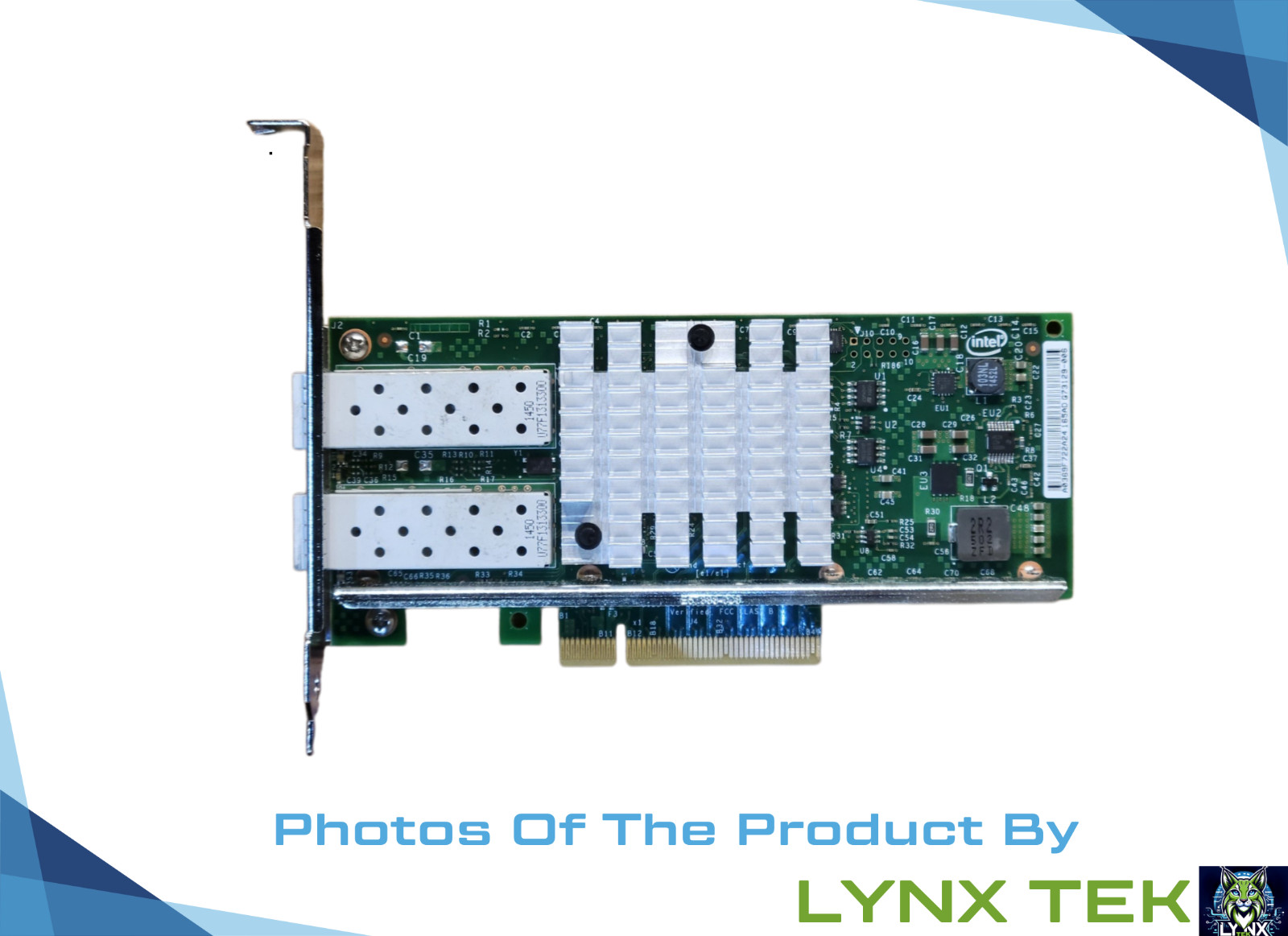

Item Specifics Dell Intel X520-DA2 10GbE Dual Port SFP+ PCIe x8 Converged Network Adapter — 0942V6 / 0XYT17 / 0U810N
The Dell Intel X520-DA2 is a dual-port 10 Gigabit Ethernet converged network adapter powered by Intel's proven 82599ES controller. Designed for Dell PowerEdge servers, it provides two SFP+ ports over a PCIe 2.0 x8 interface, delivering up to 20 Gbps aggregate throughput for bandwidth-intensive data center workloads. It supports advanced virtualization (SR-IOV, VMDq), storage-over-Ethernet protocols (iSCSI, FCoE, NFS), and hardware offloading to reduce CPU overhead. Available in high-profile (full-height) form factor and compatible with a wide range of PowerEdge server generations including the R610, R620, R710, R720, R810, R820, and more.
Key SpecificationsDell Part Numbers942V6 / 0942V6 / XYT17 / 0XYT17 / U810N / 0U810NModelIntel Ethernet Converged Network Adapter X520-DA2ControllerIntel 82599ES 10 Gigabit Ethernet ControllerPorts2 × SFP+ (10GbE / 1GbE)InterfacePCI Express 2.0 x8 (5.0 GT/s per lane)Data Rate10 Gbps per port / 20 Gbps aggregatePCIe Bandwidth40 Gbps (full-duplex capable)Form FactorFull Height (High Profile)Slot CompatibilityPCIe x8 or x16 slotConnector TypeSFP+ (LC Fiber, DAC, or AOC)Cable SupportSFP+ DAC twinax up to 10 m, SFP+ optical (LC), AOCBrandDell / IntelVoltage3.3 V / 12 VCard Dimensions6.59 in × 2.71 in (approx.)Compatible ServersPowerEdge R210 II, R310, R410, R510, R520, R610, R620, R710, R720, R720XD, R810, R820, R910, T310, T320, T410, T610, T620, T710Features & Protocols- ✓ Intel SR-IOV (Single Root I/O Virtualization) — up to 64 virtual functions per port
- ✓ VMDq (Virtual Machine Device Queues) for hypervisor efficiency
- ✓ Intel VT-c (Virtualization Technology for Connectivity)
- ✓ Intel Ethernet Flow Director for targeted packet steering
- ✓ Receive Side Coalescing (RSC) for CPU offload
- ✓ Intel Data Direct I/O (DDIO) technology
- ✓ FCoE (Fibre Channel over Ethernet) support
- ✓ iSCSI and NFS storage-over-Ethernet
- ✓ On-chip QoS, traffic management, and Flexible Port Partitioning (FPP)
- ✓ PXE (Pre-boot Execution Environment) support
- ✓ IEEE 802.3ae (10GbE) and IEEE 802.1z (1GbE) compliant
- ✓ IEEE 1588 precision timing support
- ✓ OFED / WinOF-2 (Open Fabrics) compatible
- ✓ OS support: Windows Server 2008/2012/2016/2019, Windows 7/8/10, Linux (ixgbe driver), VMware ESX/ESXi 5/6/7, FreeBSD
What's Included- ✓ Dell X520-DA2 Dual Port 10GbE SFP+ Network Adapter card in an antistatic clamshell.
- ✓ Full-height bracket (installed)
⚠ TRANSCEIVER NOTE: This adapter uses SFP+ ports — it does NOT include built-in copper RJ45 connectivity. You will need compatible SFP+ transceivers (10G SR, LR, etc.), SFP+ DAC (Direct Attach Copper) twinax cables, or SFP+ AOC (Active Optical Cable) to connect to your switch or server. Dell-branded or Intel-compatible SFP+ modules are recommended for best compatibility. DAC cables support distances up to 10 m; use optical SFP+ modules with LC fiber for longer runs.
ℹ END-OF-SALE NOTICE: The Intel X520 / 82599ES product family has reached End-of-Sale and is no longer in active production. This is a used/refurbished unit from the secondary market. Drivers are still available from Intel and Dell support portals for currently supported operating systems.
Accessories Included
None
