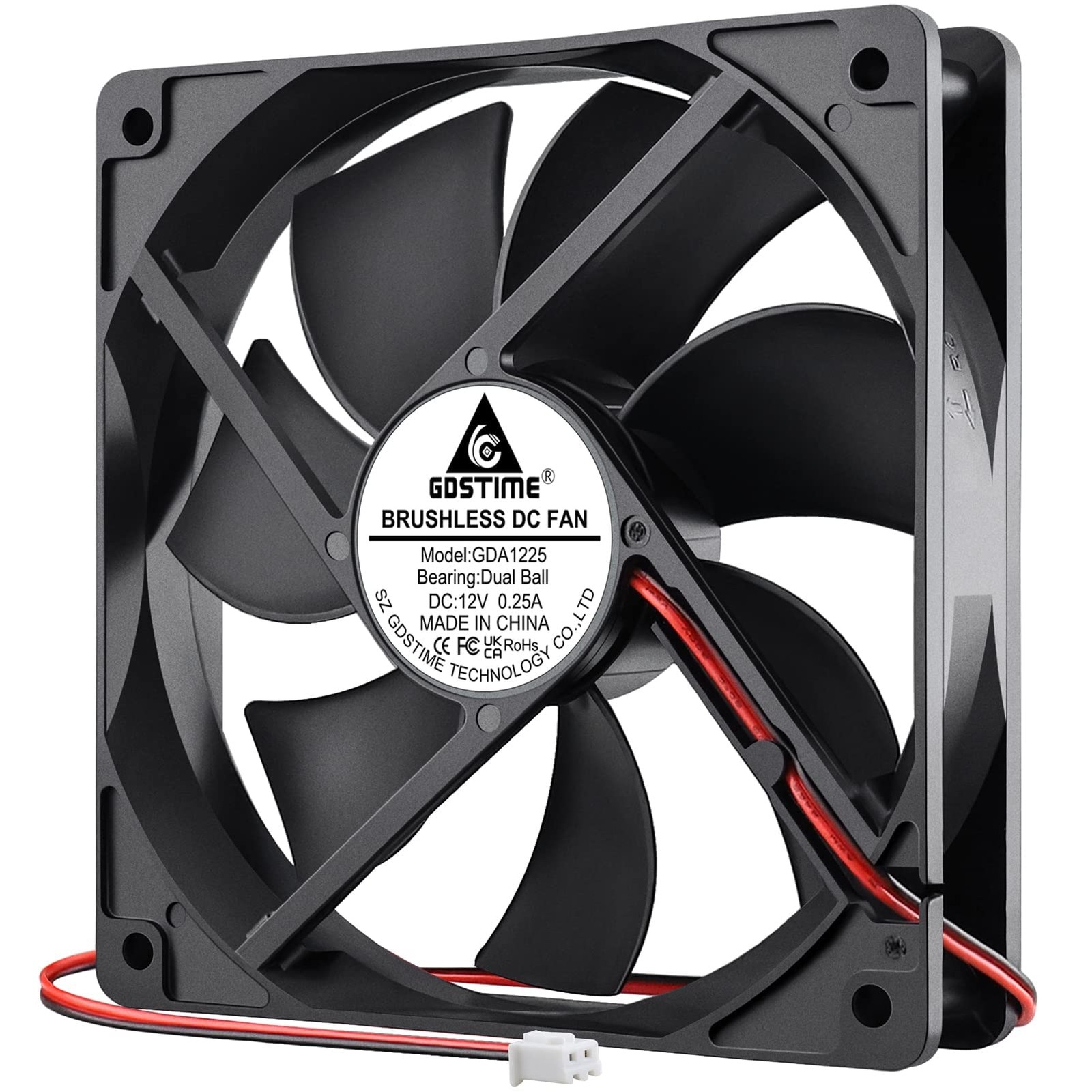

Package include: 1 Piece fan include fan grill and mounting screws & nuts Dimensions: 120x120x25mm Connector:XH2.54-2Pin Rated Voltage: DC 12V Rated Current: 0.25Amp Rated Speed: 2500 RPM Air flow: 83.2CFM Noise: 35.7dBA Bearing Type: Dual Ball Bearings Life: 50000 hours at 25 degrees Cable Lenght: 30cm Weight: 112g or 4 oz
Dimension of outer the frame is 120mm(L) x 120mm(W) x 25mm(H) / The size of fan in inch is 4.72in(L) x 4.72in(W) x 1in(H); The center to center distance beween the mountiong holes is 105mm/4.13in.
Operating Voltage Range：5.5V to 13.8V. (overtake to 13.8V, it can also work. but not safe, and seriously affects lifespan of fan.) The started Voltage is 3.6V.
Rated Voltage: DC 12V; Rated Current: 0.25Amp; Rated Speed: 2500 RPM; Air flow: 83.2 CFM; Noise: 35.7 dBA; Power: 3.5 Watt
Connector: XH2.54-2Pin; Lead wire: UL Type (Positive): Red wire ; (Negative): Black wire. This is a two wire cooling fan; Bearing Type: Dual Ball Bearings ; Life: working up to 50000h at 25 degrees
Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase
