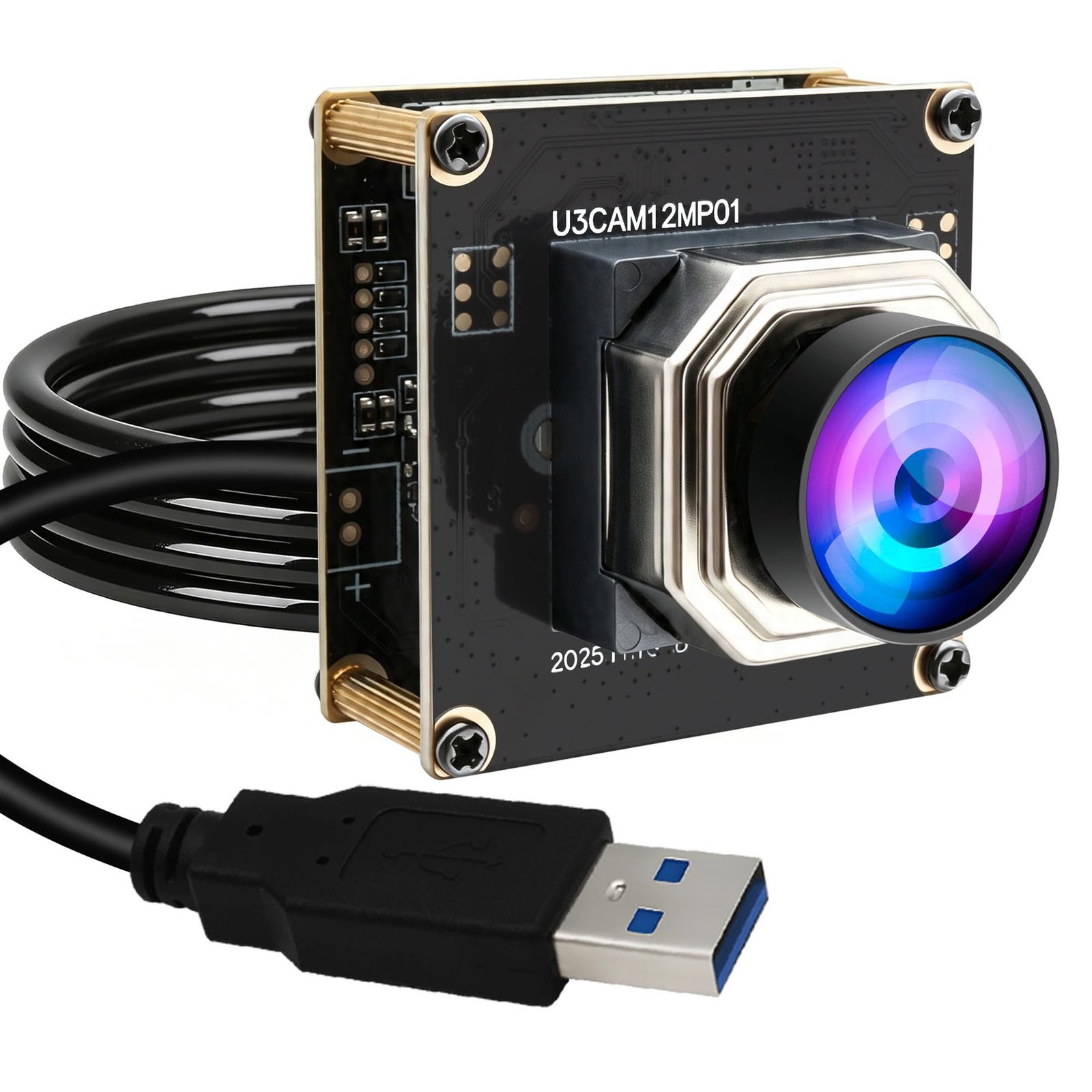

ELP High Speed USB3.0 Autofocus Fisheye Camera Module, 1080P/230fps, 4K/60fps, 12MP/30fps, Mini UVC USB3.0/2.0 Lightburn Cameras for Windows, Linux, Mac, Pi, Wide Angle Webcam for PC Jetson Nano

• 【Ultra HD 12megapixel】Recording max 4000(H)x3000(V) video and still picture.
• 【High Frame Rates】Up to 1080P@230fps,4K@60fps, 3000P@30fps. Support YUY2 and MJPEG format. Designed to perform reliably in both Indoor and outdoor environments.
• 【Wide Angle Lens】170degree fisheye lens, HFOV is approximately 164°, with industry-standard M12 lens thread for optical customization, perfect for conference rooms, retail spaces, or drone navigation, etc.
• 【Autofocus 】Shoot objects in close and distance on the same camera, automatically controlled without lens adjustment tool, clearer and easier than the fixed focus camera.
• USB3.0 high speed USB camera for high speed system, USB3.0/2.0 compatible, high performance ISP.
• USB3.0 20pin connector, equipped 1.2meters USB cable, Support OTG optional
• 【Superior Color CMOS Sensor】Adapt with 1/2.3” Imx577 image sensor for better picture performance, mini usb camera module with 1.2meter/3.96ft USB cable for pc laptop. Mini Illumination: 0.1lux.
• 【Mini size, light weight】Small outline and thin profile for embedded machine vision.
• 【Plug&Play】UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
• 【Wide Applications】This ELP mini 38mmx38mm camera board can be installed in most hidden and narrow position for a home surveillance system, wildlife photography, dashcam, baby camera, Robotics, Precision Agriculture, Motion Analysis, Sports Tracking, Industrial Automation, Traffic Monitoring and Surveillance, etc.

Model NO.: ELP-U3CAM12MP01-AFTL170
Image Sensor: IMX577 (1/2.3” )
Max/Default Resolution: 4000(H) *3000 (V)
Sensor Size/ Image Size: 10.7mm x 8.5mm /5.95mm x 4.71mm
Pixel Size: 1.55µm x 1.55µm
Compression Format: MJPEG / YUY2 (YUYV)
Resolution & Frame Rate: (USB 3.0 Interface & Speed)
Under USB 3.0 Interface & Speed:
4000x3000@ 30fps MJPEG/YUY2 10fps
3840x2160@ 60fps MJPEG/YUY2 20fps
3264x2448@ 30fps MJPEG/YUY2 20fps
2560x1440@ 60fps MJPEG/YUY2 30fps
1920x1080@ 230fps MJPEG/YUY2 60fps
1280x720@ 230fps MJPEG/YUY2 120fps
640x360@ 230fps MJPEG/YUY2 230fps
Resolution & Frame Rate: (USB 2.0 Speed)
Under USB 2.0 Speed:
4000x3000@ 30fps MJPEG
3840x2160@ 30fps MJPEG
3264x2448@ 30fps MJPEG
2560x1440@ 60fps MJPEG
1920x1080@ 120fps MJPEG
1280x720@ 230fps MJPEG/YUY2 10ps
640x360@ 230fps MJPEG/YUY2 30fps
Center Definition: 1000LW/PH (Center)
S/N Ratio: 49dB
Sensitivity: 0.65V/lux-sec@550nm
Minimum illumination: 0.1lux
Shutter Type: Electronic rolling shutter / Frame exposure
Connecting Port type: USB 3.0 Interface
AEC/ AWB/ AGC Support
Adjustable Parameters
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight
Compensation, Exposure
Lens Parameter:
f=3.24mm, No distortion, HFOV is approximately 88°.
Optional Lenses:
Power Supply& Connector
USB Type-C Power Supply, Type-C
Power Voltage: DC 5V
Power Current: 180-260mA
Board Size: 38x38x48.8mm
Storage Temperature: -20°C to 85°C
Working Temperature: -10°C to 65°C
USB Cable: 1.2m cable with USB3.0 Type-C port
Operating System Support:
Win10/Win11 etc;
Linux with UVC;
MAC-OSX10.4.8 or later;
Android5.x or above
