EVGA GeForce RTX 3090 24GB GDDR6X FTW3 ULTRA GAMING

UPC: 843368067137
MPN: 24G-P5-3987-KR
Brand: EVGA
Chipset Manufacturer: NVIDIA
Chipset/GPU Model: NVIDIA GeForce RTX 3090
Memory Size: 24 GB
Memory Type: GDDR6X
Power Cable Requirement: 8-Pin + 8-Pin + 8-Pin PCI-E
Cooling Component Included: Fan with Heatsink
Item Length: 11.81 inch (300 mm)
Item Height: 5.38 inch (136.75 mm)

Alternative Models & Cross-Brand Equivalents

Related models for comparison; these are not additional included parts or a guarantee of interchangeability.

• 24G-P5-3985-KR
• 24G-P5-3978-KR
• 24G-P5-3975-KR
• 24G-P5-3973-KR
• 24G-P5-3988-KR
• 24G-P5-3989-KR
• 24G-P5-3998-KR
• ROG-STRIX-RTX3090-O24G-GAMING
• TUF-RTX3090-O24G-GAMING
• RTX 3090 GAMING X TRIO 24G
• RTX 3090 SUPRIM X 24G
• GV-N3090AORUS M-24GD
• GV-N3090GAMING OC-24GD
• ZT-A30900B-10P
& Compute Performance

Built on the groundbreaking NVIDIA Ampere architecture (GA102-300-A1), this enthusiast-grade GPU delivers massive compute power with 10,496 CUDA Cores, 2nd Gen Ray Tracing Cores, and 3rd Gen Tensor Cores. Operating with a base clock of 1395 MHz and an aggressive boost clock of 1800 MHz, it is perfectly optimized for extreme 4K/8K gaming, heavy 3D rendering, and demanding AI/Machine Learning workloads.

VRAM & Memory Bandwidth

Equipped with a massive 24 GB of ultra-fast GDDR6X video memory running on a 384-bit memory bus. With a memory data rate of 19.5 Gbps, this card achieves an astonishing total memory bandwidth of 936 GB/s, ensuring zero bottlenecks when handling massive high-resolution textures, complex CAD models, or multi-monitor setups.

Power, Cooling & Connectivity

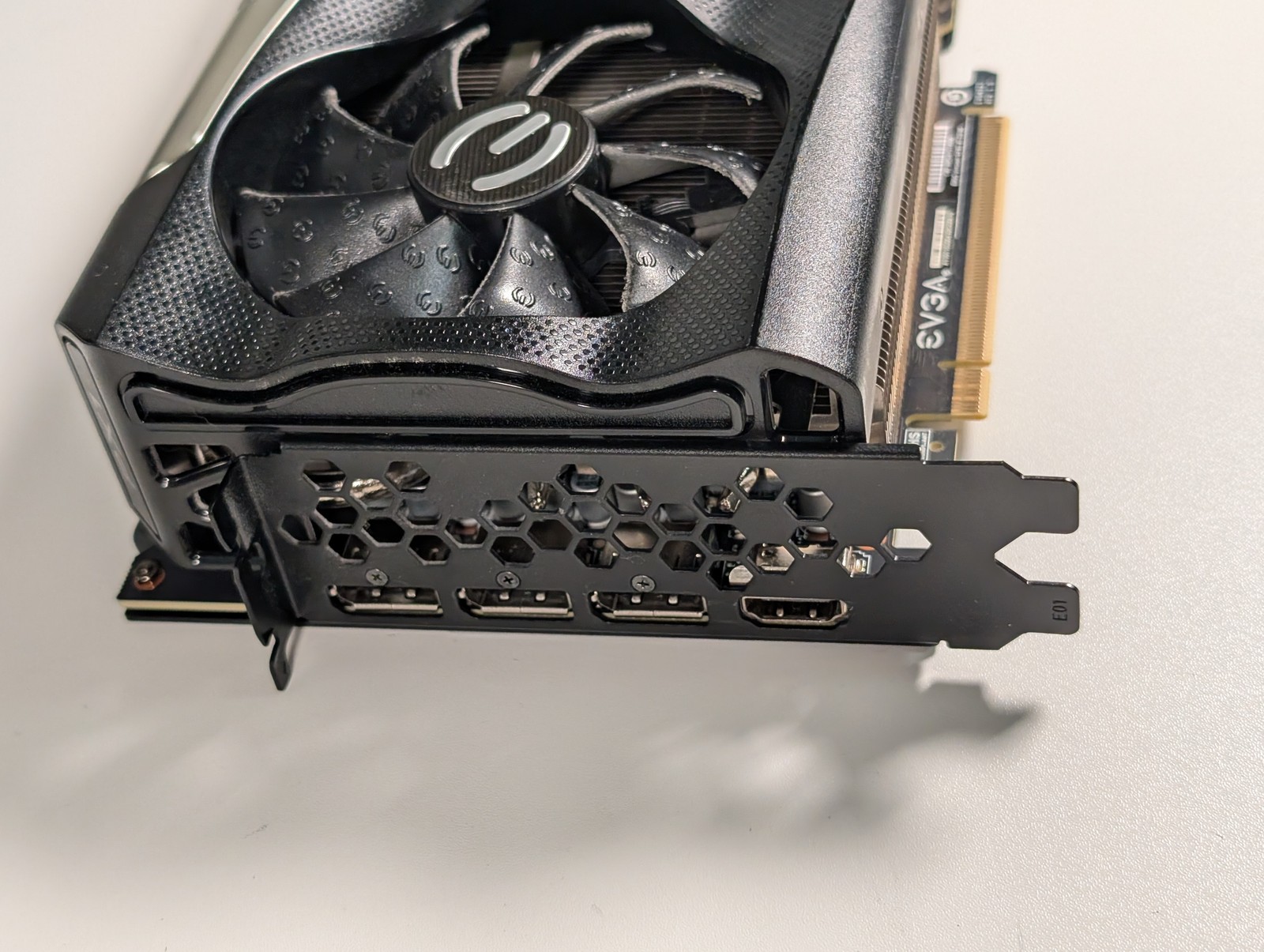

The FTW3 ULTRA features EVGA's advanced iCX3 Triple-Fan cooling solution, complete with a 0dB auto fan stop feature and a rigid all-metal backplate for superior thermal dissipation. It requires 3x 8-pin PCIe power connectors to feed its 420W TDP (a 750W or greater power supply is recommended). Display outputs include 3x DisplayPort 1.4a and 1x HDMI 2.1, supporting up to four displays and a maximum digital resolution of 7680 x 4320 (8K) in a 2.75-slot form factor.
