INCLUDING2x SPAFFIV-03G SFP MODULES


EXCLUDING HARD DRIVE

EXCLUDING RACK EARS

EXCLUDING NETWORK CABLES

Price is for 1 item

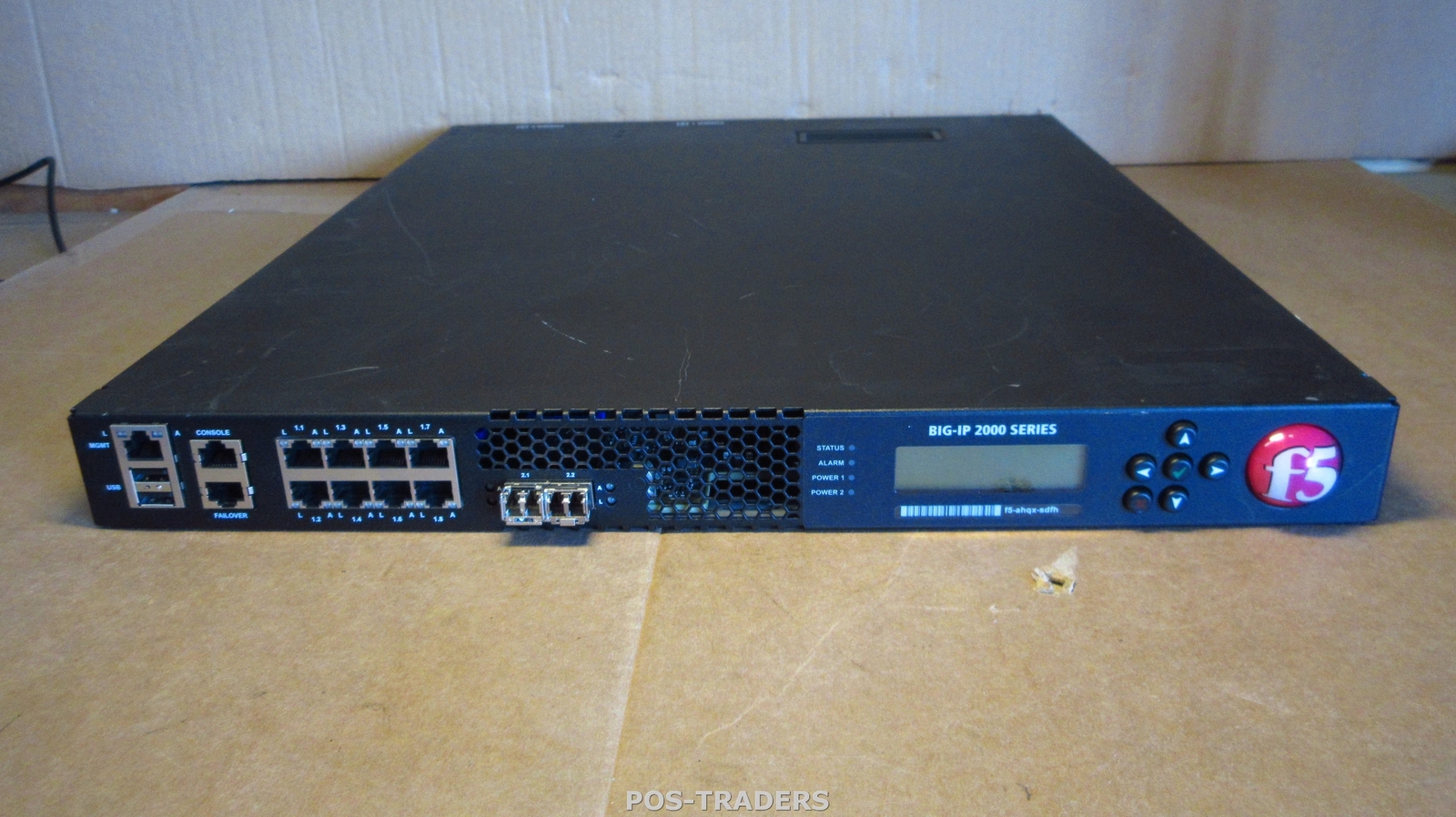

See photos for actual item

• Intelligent Traffic Processing:
  • L7 requests per second: 212K
  • L4 connections per second: 75K
  • L4 HTTP requests per second: 550K
  • Maximum L4 concurrent connections: 5M
  • Throughput: 5 Gbps L4/L7
• Hardware SSL:
  • Included: 2,000 TPS (2K keys)
  • Maximum: 2,000 TPS (2K keys)
  • 4 Gbps bulk encryption*
• FIPS SSL:N/A
• Hardware DDoS Protection:N/A
• Hardware Compression:N/A
• Software Compression:
  • Included: 2.5 Gbps
  • Maximum: 2.5 Gbps
• Software Architecture:64-bit TMOS
• On-Demand Upgradable:Yes
• Processor:Intel dual core (total 4 hyperthreaded logical processing cores)
• Gigabit Ethernet CU Ports:8
• Gigabit Fiber Ports (SFP):Optional SFP (SX, LX, or copper)
• 10 Gigabit Fiber Ports (SFP+):
  • 2 SR or LR
  • Optional 10G copper direct attach
• 40 Gigabit Fiber Ports (QSFP+):N/A
• Power Supply:One 400W included (80+ Platinum efficiency), dual power and DC options
• Typical Consumption:74W (single supply, 110V input)**
• Input Voltage:90-240 VAC +/- 10% auto switching, 50/60hz
• Typical Heat Output:252 BTU/hour (single supply, 110V input)**
• Dimensions:
  • 1.75" (4.45 cm) H x 17" (43.18 cm) W x 21" (53.34 cm) D
  • 1U industry standard rack-mount chassis
• Weight:20 lbs. (9.1 kg) (one power supply)
• Operating Temperature:32° to 104° F (0° to 40° C)
• Operational Relative Humidity:5 to 85% at 40° C
• Safety Agency Approval:
  • UL 60950-1 2nd Edition
  • CAN/CSA C22.2 No. 60950-1-07
  • EN 60950-1:2006, 2nd Edition
  • IEC 60950-1:2006, 2nd Edition
  • Evaluated to all CB Countries
• EN 300 386 V1.5.1 (2010-10)
• EN 55022:2006 + A1:2007
• EN 61000-3-2:2006
• EN 61000-3-3:1995 + A1:2000 + A2:2005
• EN 55024: 2010
• USA FCC Class A

Comes as shown on picture, if something is not on the picture it's not included unless stated otherwise.
