- FPC/FFC cables kit often found in high density electronic applications like those small electrical equipment. Widely used for laptops, DVD player, LCD monitors, audio system and other DIY projects, etc.

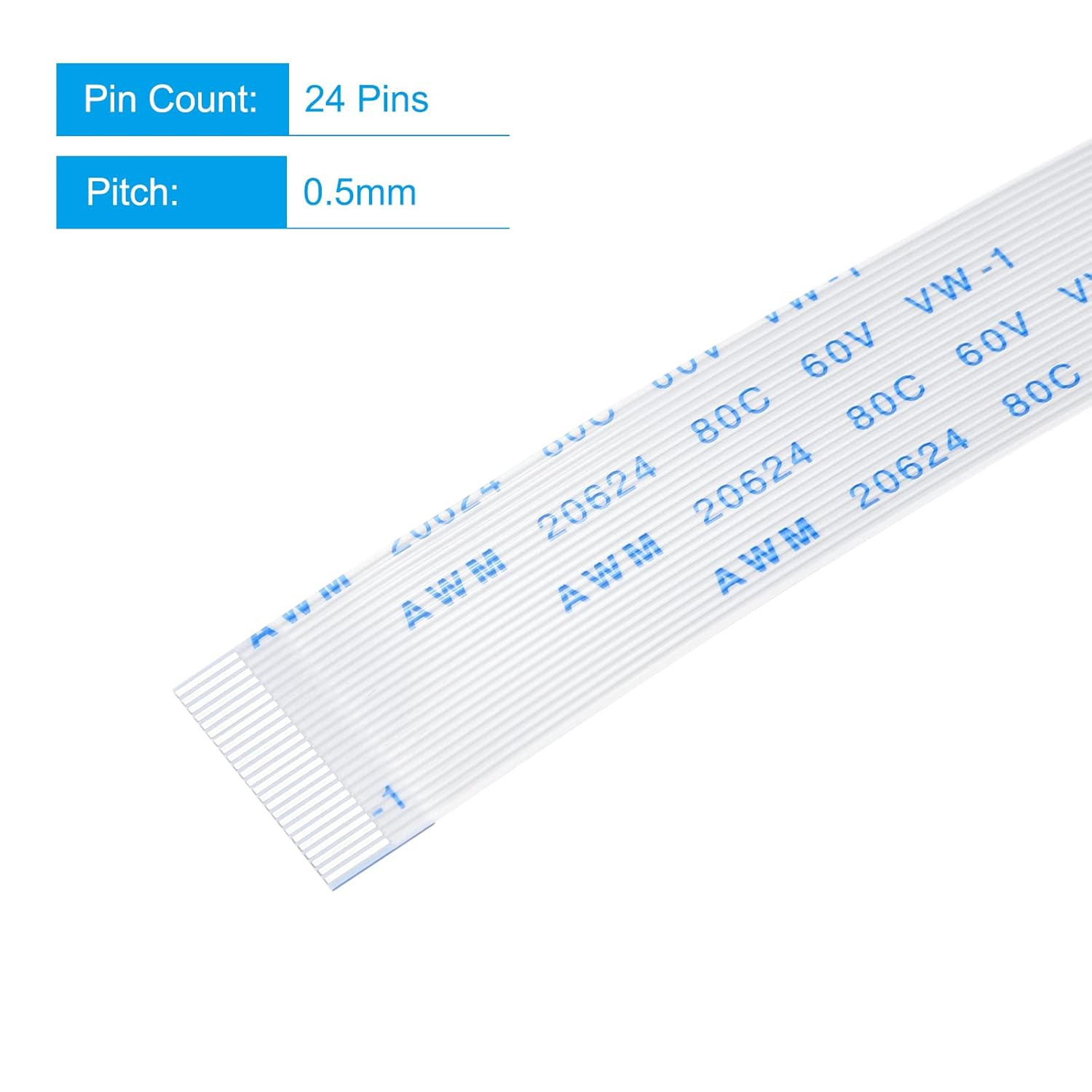

- Cable: Pin on the Same Side (A Type); Pin Count: 24 Pins; Pitch: 0.5mm; Length*Width: 300mm x 12.5mm / 11.81" x 0.49"; In the package of: 10 x FFC Cable.
- Extension cable for connection. The ultra thin flat flexible ribbon cable can saving much space for your connecting. The reinforce stiffener on the two end of the cables make it stable and strong.
- Steps of installations: 1. Connecting your cable to the board of your equipment first ; 2.Testing the function to finish.
- All size above is measured by manual, please allow +/-0.1 inch error.
Product description
Feature: FFC Cable - Flat Flexible Cable
- The ultra thin saving much space.
- Flexible and stable, can be folded.
- The reinforce stiffener on the two end makes it strong.
Steps of Installation:
- Connecting the cable to your board.
- Testing the function to finish.
Ultra Thin and Flexible
With super small volume of the thin cable. It is soft and can be folded to fit your repairing projects.
Two Kind of Types - A and B
"A Type" flat cable means --- the contacting side of the 2 top pin is on the same side(Both towards to up or down).
"B Type" flat cable means --- the contacting side of the 2 top pin is on the opposite side(One towards to up, the other towards to down).
Reinforced Ends
With reinforced stiffener material on the two end of the flat cable, which makes it more stable and stronger.
Application
FPC/FFC cables kit often found in high density electronic applications like those small electrical equipment. Widely used for laptops, DVD player, LCD monitors, audio system and other DIY projects, etc.
